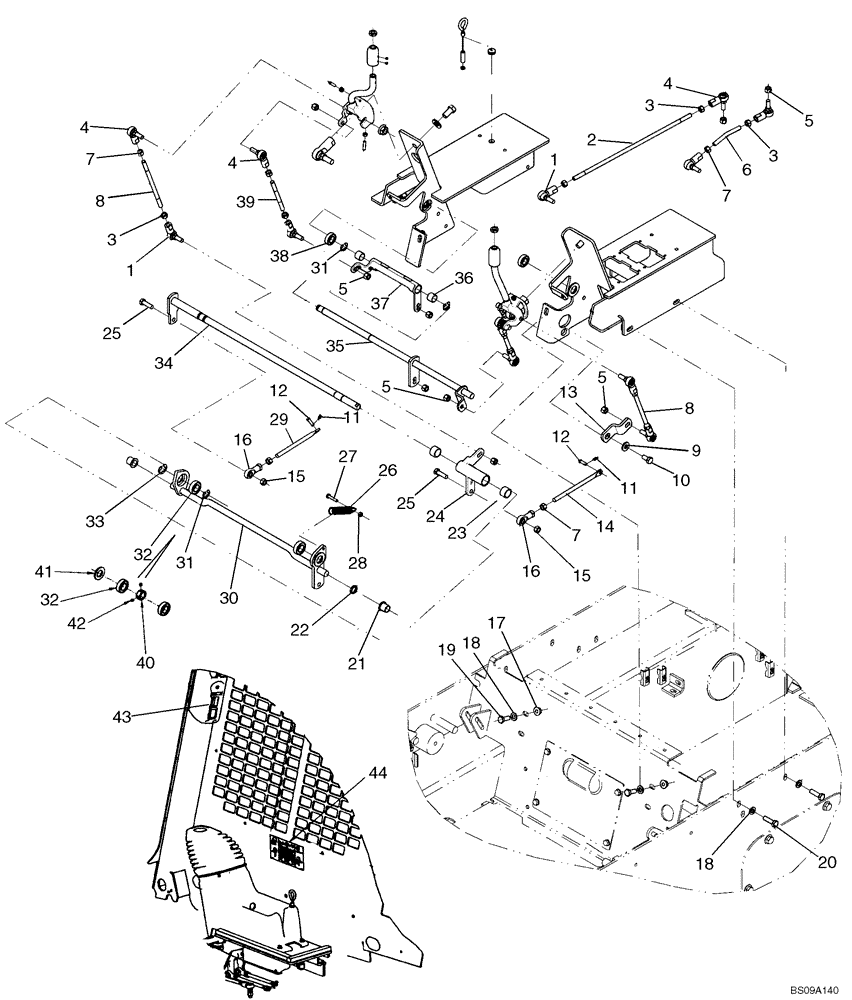

Запчасти Case 410 (09-19) - LOADER & GROUND DRIVE CONTROL - LINKAGE (09) - CHASSIS

1

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

2

435565A1

ROD

1шт.

3

87030547

NUT,3/8" - 24, LH Thd, Gr 5

6шт.

4

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

5

80855

NUT,Hex, 3/8" - 24

12шт.

6

87460100

ROD

1шт.

7

86509310

NUT,3/8" - 24, Gr 5

8шт.

8

180682A1

STEM

2шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

3шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

11

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

12

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

13

87458510

ARM

1шт.

14

87458662

ROD

1шт.

15

9628503

NUT,3/8"-16, G5

2шт.

16

86500348

BALL JOINT HEAD,3/8" - 24

2шт.

17

411345A1

LOCK NUT

2шт.

18

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

21

367582A1

BUSHING,15.88mm ID x 19.05mm OD x 19.1mm L

2шт.

22

409856A1

SPACER

1шт.

23

409845A1

BEARING, NEEDLE,Needle, 19.05mm ID x 25.4mm OD x 15.9mm W

2шт.

24

385783A3

CRANK

1шт.

25

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

26

120952A1

SPRING

1шт.

27

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

If Used

1шт.

28

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4-5шт.

29

87458660

ROD

1шт.

30

87458511

SHAFT

If Used

1шт.

31

87309725

CIRCLIP

External "E" Style, #62

3-4шт.

32

87458665

BALL BEARING,17 mm ID x 35 mm OD x 10 mm

2шт.

33

87309726

RING

External "E" Style, #75; If Used

1шт.

34

87752562

SERVICE KIT

Kit, Control Rod; Incl Ref 34, Loader Control Rod, Collar, Washer, And Set Screw

1шт.

34

87740928

ROD

Rod, Loader Control; Replaces 87613733

1шт.

35

87458514

ROD ASSY.

1шт.

36

409844A1

BEARING, NEEDLE,Needle, 15.88mm ID x 20.64mm OD x 15.9mm W

2шт.

37

367585A2

CRANK

1шт.

38

87458664

BALL BEARING,15 mm ID x 32 mm OD x 9 mm

2шт.

39

249367A2

ROD

2шт.

40

87608769

COLLAR

1шт.

41

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

42

86516064

SET SCREW,M6 x 6mm, Cl 12.9

2шт.

43

126844A1

PLUG,1.427” x .62” , Plastic

Cover Switch Hole

1шт.

44

87715687

DECAL

Control ID-H Pattern

1шт.
