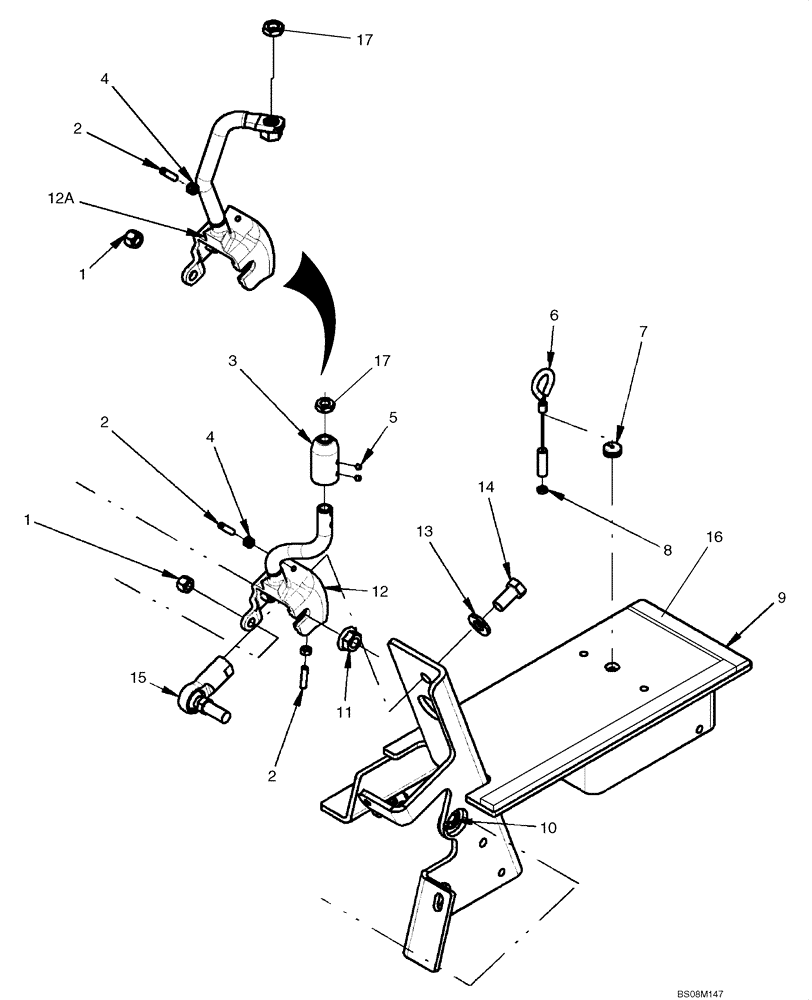

Запчасти Case 410 (09-17) - LOADER & GROUND DRIVE CONTROL - RH (09) - CHASSIS

1

80855

NUT,Hex, 3/8" - 24

4шт.

2

405103A1

SET SCREW,Hex Skt, M6 x 25mm, Oval Pt

2шт.

3

87662429

ADAPTER

Handle Mounting Adapter

1шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

5шт.

5

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

Set Screw, #10-32 X 1/4

2шт.

6

87462741

CABLE,124mm L

Override Cable, 124mm (4 7/8 in.) Length; Rear Of RH Console; If Used

1шт.

6

87720476

CABLE,255mm L

Override Cable, 255mm (10 1/16 in.) Length; Goes Thru RH Console; If Used

1шт.

7

87036285

GROMMET,0.125" ID x 0.750" OD x 0.312" Thk

1шт.

8

87825

NUT,#10-32

1шт.

9

87726162

FRAME

Frame, Control RH

1шт.

10

87309725

CIRCLIP

Retaining Ring, External "E" Style #62

3-4шт.

11

87033645

FLANGE NUT,Flg, 1/2"-20

2шт.

12

87662357

LEVER

Control Lever, RH; If Used

1шт.

12a

87498732

CONTROL LEVER

Control Lever, RH; If Used

1шт.

13

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

14

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

2шт.

15

87458667

FLEXIBLE JOINT

1шт.

16

291308

SEALING STRIP,0.75" W x 0.5" Thick

20 Feet Per Package, Cut As Required

1шт.

17

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.
