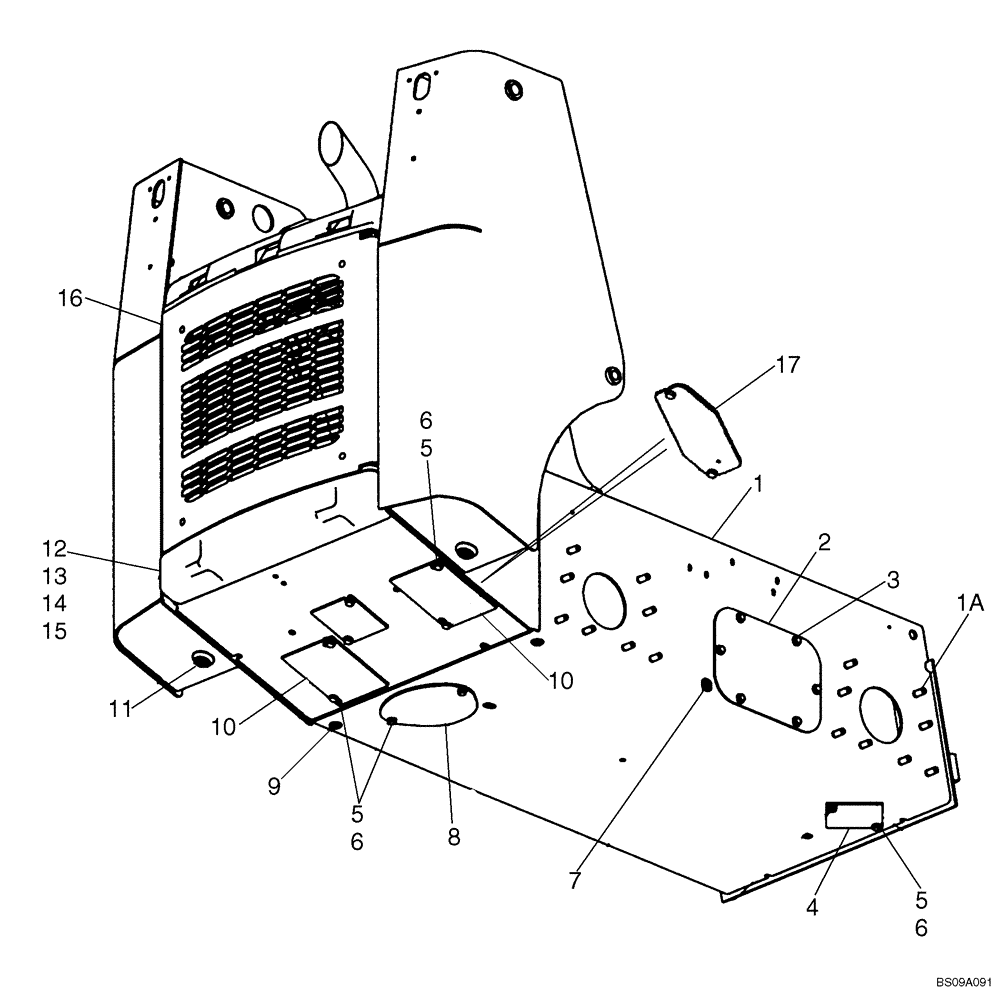

Запчасти Case 410 (09-13) - CHASSIS (09) - CHASSIS

1

87685422

FRAME

Chassis Frame; Used In Production

1шт.

1a

277450A1

STUD,M16 x 2 x 40mm, Cl 10.9

M16x40; Studs For Axle Mounting

32шт.

2

87411208

COVER PLATE

Chain Tank

2шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

4

H436914

LARGE PLATE

PLATE, LARGE

2шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

10шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

7

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

2шт.

7

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

2шт.

8

365817A1

COVER

1шт.

9

236622

PLUG,3/8" - 18 NPT

3/8

2шт.

10

87458642

PLATE

Plumbing Access

1-2шт.

11

87432221

PLUG

1, Magnetic

2шт.

12

87453961

BUMPER

Counterweight

1шт.

12

87626717

COUNTERWEIGHT

Bumper Counterweight, Power Tan

1шт.

13

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

14

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

15

86536985

NUT,M20 x 2.5, Cl 10

2шт.

16

REF

INSTRUCTION

Door Assy; See Figure 09-23

1шт.

17

87714954

PLATE

Composite Floor Plate

1шт.
