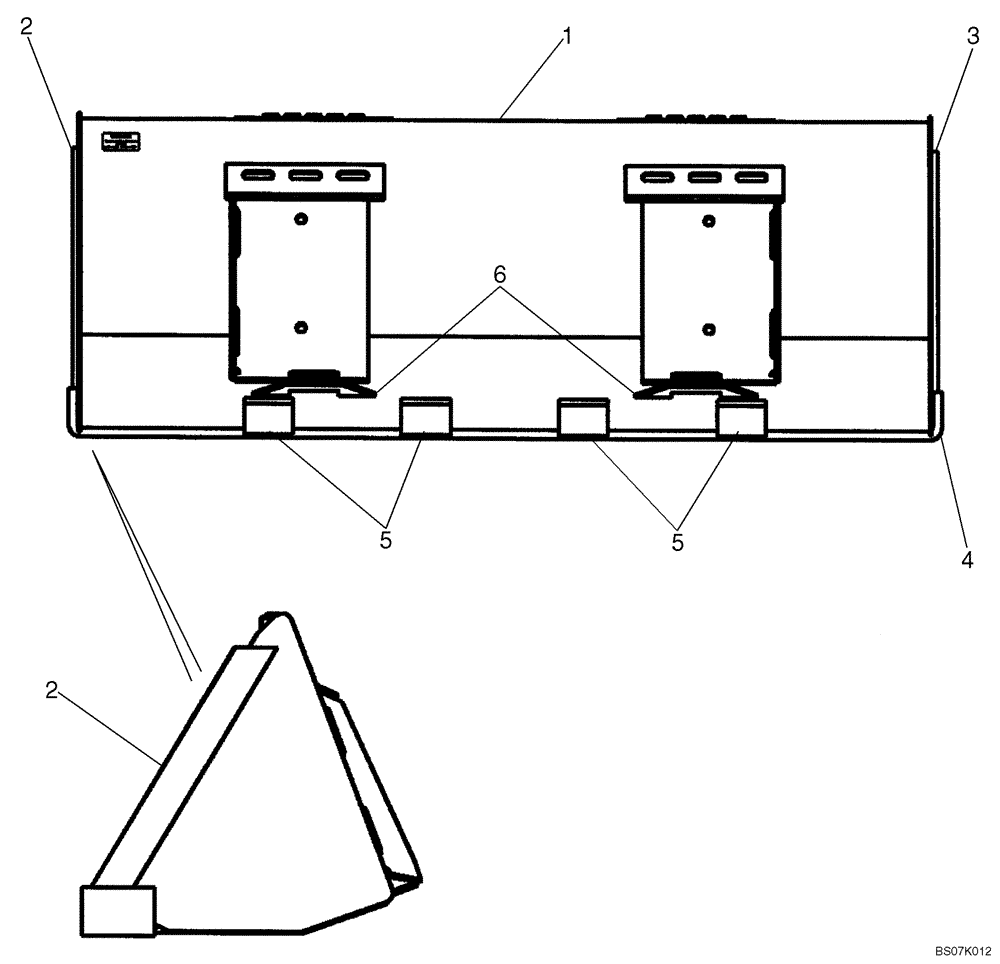

Запчасти Case 410 (09-05) - BUCKETS - LOADER, DIRT / FOUNDRY (09) - CHASSIS

REF

INSTRUCTION

DIRT / FOUNDRY

1шт.

1

86618349

BUCKET

1524 mm (60 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

9841636

CUTTING EDGE,591.4mm L x 76.2mm W x 9.52mm Thk

LH Cutter

1шт.

3

9841637

CUTTING EDGE,591.4mm L x 76.2mm W x 9.52mm Thk

RH Cutter

1шт.

4

86577164

CUTTING EDGE

Weld On Blade 60 in

1шт.

5

86501841

BAR

Skid Bar

3шт.

6

9822175

PLATE

2шт.

1

86618350

BUCKET

BUCKET, 1676 mm (66 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

87014505

CUTTING BLADE

LH Cutter

1шт.

3

87014504

CUTTING BLADE

RH Cutter

1шт.

4

86577166

CUTTING EDGE

Weld On Blade 66 in

1шт.

5

87016983

BAR

Skid Bar

3шт.

6

9822175

PLATE

2шт.

1

86618351

BUCKET

1829 mm (72 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

87014505

CUTTING BLADE

LH Cutter

1шт.

3

87014504

CUTTING BLADE

RH Cutter

1шт.

4

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade 72 in

1шт.

5

87016983

BAR

Skid Bar

4шт.

6

9822175

PLATE

2шт.
