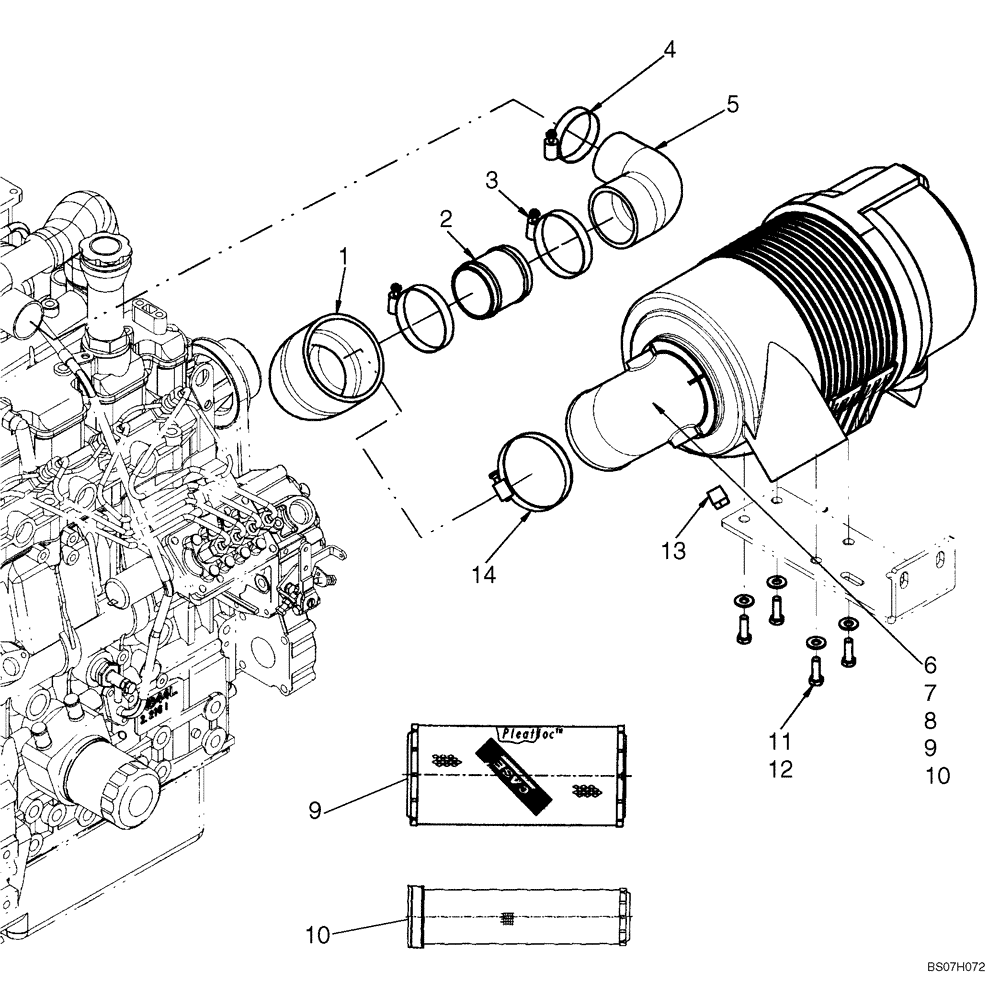

Запчасти Case 410 (02-05) - AIR CLEANER - ENGINE (02) - ENGINE

1

87604025

INTAKE AIR HOSE,60.30 mm ID, 88.90 mm ID x 160.50 mm, SAE J20 R4

Hose, Air Cleaner Inlet

1шт.

2

87604026

QUICK MALE COUPLING

Coupler, Air Cleaner Inlet

1шт.

3

87040758

HOSE CLAMP,71.4mm - 95.2mm

2шт.

4

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

5

87604024

INTAKE AIR HOSE,46.00 mm ID, 60.30 mm ID x 88.20 mm, SAE J20 R4

Hose, Air Cleaner Inlet

1шт.

6

87644689

AIR FILTER

Air Cleaner Assembly 8"; Incl. 7 - 10

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.

8

395792A1

COVER ASSY

1шт.

9

222421A1

AIR FILTER

Filter, Primary

1шт.

10

222422A1

AIR FILTER

ELEMENT, FILTER Filter, Secondary

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

13

87597959

PLUG

Plug, Square Drive Plastic 3/8-18 NPTF

1шт.

14

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.
