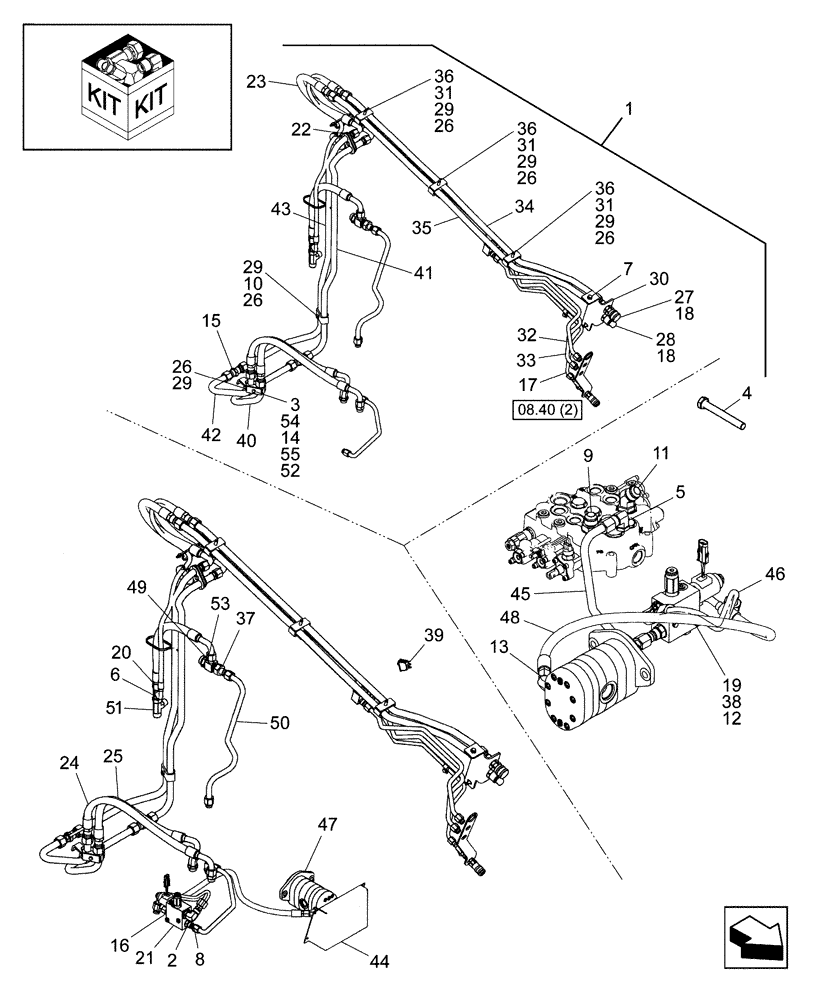

Запчасти Case 410 (08.40[1]) - KIT, HIGH FLOW BI-DIRECTIONAL GEAR (08) - HYDRAULICS

1

84179313

KIT

High-Flow Bi-directional Gear, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

3

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

4

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

6

262159

CAP,3/4" - 16 Fem JIC

1шт.

7

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

11

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

12

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

13

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

1шт.

14

9628098

NUT,M8 x 1.25, Cl 10

1шт.

15

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

2шт.

16

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

17

0C

ORDER COMPONENTS

Case Drain, High-Flow Kit

1шт.

84177563

1шт.

18

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

21

87012669

VALVE

Combination

1шт.

22

87017999

SUPPORT

2шт.

23

87020048

HOSE,19.05mm ID x 675mm L

High Flow

2шт.

24

87020053

HOSE,19.05mm ID x 900mm L, SAE 100R17

1шт.

25

87020054

HOSE,19.05mm ID x 760mm L

1шт.

26

87020743

BRACKET

5шт.

27

87022671

COUPLING, QUICK, FEM

Female #16 BLKHD

1шт.

28

87022672

QUICK MALE COUPLING

Male #16 BLKHD

1шт.

29

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

5шт.

30

87023398

BRACKET

1шт.

31

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

3шт.

32

87023854

HYD TUBE,15.88 mm OD

1шт.

33

87023855

HYD TUBE,15.88 mm OD

1шт.

34

87023856

HYD TUBE,25.40 mm OD

1шт.

35

87024207

HYD TUBE,25.40 mm OD

1шт.

36

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3шт.

37

87032415

ADAPTER

1шт.

38

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

39

87414769

SWITCH

Rocker, Hi-Flow

1шт.

40

87436533

HYD TUBE,25.40 mm OD

High Flow

1шт.

41

87436536

HYD TUBE,25.40 mm OD

High Flow

1шт.

42

87448072

HYD TUBE,25.4 mm OD

High Flow

1шт.

43

87448073

HYD TUBE,25.4 mm OD

High Flow

1шт.

44

87460011

COVER

with Heelplate

1шт.

45

87499842

HYD TUBE,15.9 mm OD x 336.3, 196 mm L

High Flow Supply

1шт.

46

87549660

HYD TUBE,16.57 mm ID x 19.05 mm OD x 217.5, 111.1 mm L

Valve to Filter

1шт.

47

87613384

PUMP

DB Gear, 1.55/0.58 CID

1шт.

48

87653903

HOSE,12.70 mm ID x 4050.00 mm, SAE J846

HF Supply

1шт.

49

87659246

HOSE,19.05mm ID x 630mm L, SAE 100R4

Oil Cooler Bypass

1шт.

50

87661904

HYD TUBE,19.05 mm OD

Valve to Filter

1шт.

51

87690479

TEE

1шт.

52

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

53

254524A1

TEE

1шт.

54

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

55

80681

LOCK WASHER,5/16"

, Serial Range: -m,

1шт.
