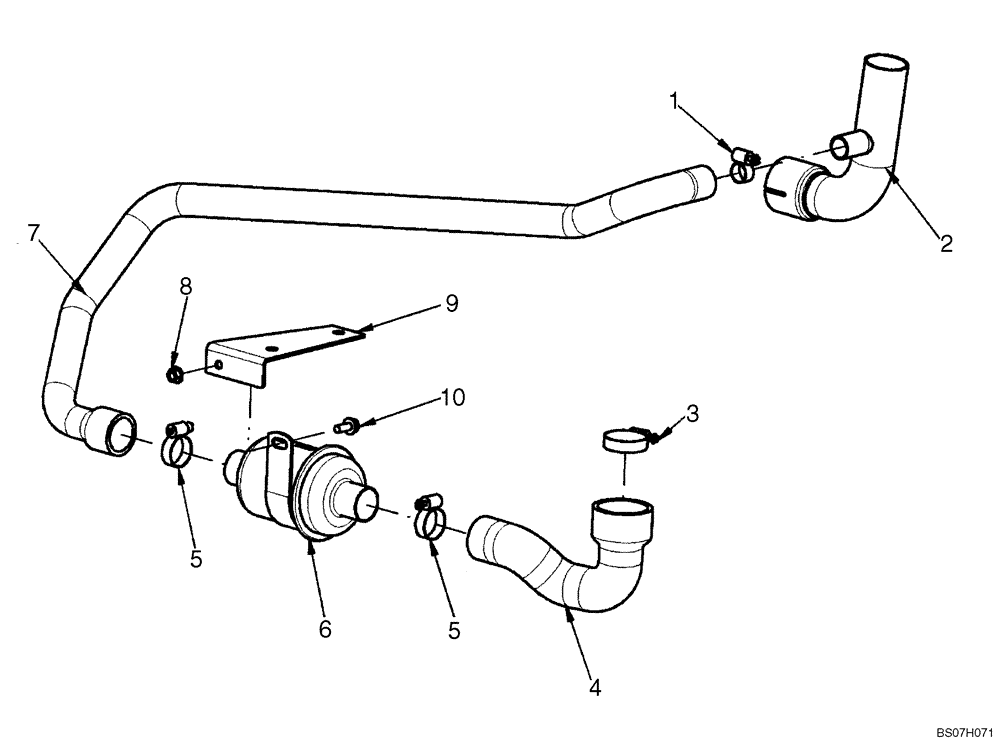

Запчасти Case 410 (02-04) - EXHAUST SYSTEM - ASPIRATOR (02) - ENGINE

87638312

SERVICE KIT

Kit, Aspirator; Incl 1 - 10

1шт.

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

2

87052642

EXHAUST SYSTEM PIPE,47.60 - 50.80 mm OD

Exhaust Tube

1шт.

3

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

If Used

1шт.

3

84137995

HOSE CLAMP,SAE #36 OD

Hose Clamp Turnkey Grip #36

1шт.

4

87056123

HOSE,38.00 mm ID, 56.00 mm ID x 171.00 mm, SAE 20R4 Class D1

Formed Hose

1шт.

5

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

6

406089A2

VALVE

Aspirator Check Valve

1шт.

7

87621213

INTAKE AIR HOSE,25.40 mm ID, 34.00 mm ID x 509.80 mm, SAE 20R4 Class D1

Air Cleaner To Aspirator

1шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

87624927

BRACKET

Mount, Aspirator Valve

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
