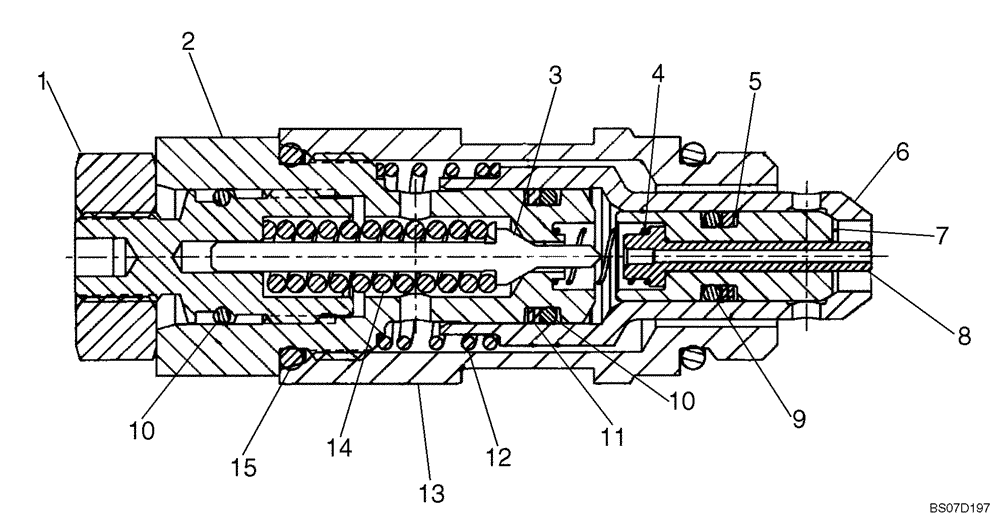

Запчасти Case 410 (08-24) - CONTROL VALVE - MAIN RELIEF VALVE (08) - HYDRAULICS

87583285

VALVE

Manual Control Valve

1шт.

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control

1шт.

87546975

HYDRAULIC VALVE

Manual Control Valve; Pilot Control Models With Hydraulic Attachment

1шт.

87610350

VALVE PRESSURE RELIE

Main Relief Valve, 3050 PSI; Incl. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Nut

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Back-Up Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet

1шт.

7

NSS

NOT SOLD SEPARAT

Poppet

1шт.

8

NSS

NOT SOLD SEPARAT

Piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Back-Up Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Spring

1шт.

13

NSS

NOT SOLD SEPARAT

Body

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

16

NSS

NOT SOLD SEPARAT

Adjust Screw

1шт.
