(08-20) - CONTROL VALVE - SEAL REPLACEMENT KITS

Запчасти Case 410 (08-20) - CONTROL VALVE - SEAL REPLACEMENT KITS (08) - HYDRAULICS

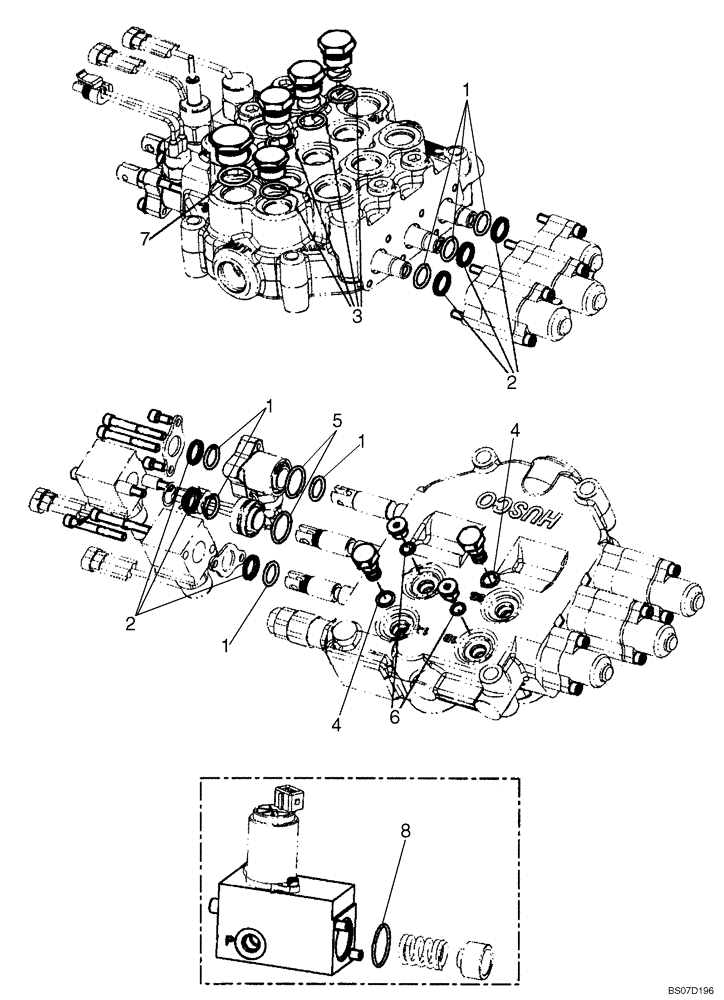

Схема запчастей Case 410 - (08-20) - CONTROL VALVE - SEAL REPLACEMENT KITS (08) - HYDRAULICS
1
2
5
13
1
1
8
4
2
6
4
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87583285

VALVE

Manual Control Valve

1шт.

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control

1шт.

87546975

HYDRAULIC VALVE

Manual Control Valve; Pilot Contro Models With Hydraulic Attachment

1шт.

87610349

SEAL KIT

Kit, Seal Replacement; Incl. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-ring, .818 OD

7шт.

2

NSS

NOT SOLD SEPARAT

Wiper, .796 OD

6шт.

3

NSS

NOT SOLD SEPARAT

O-ring, .949 OD

4шт.

4

NSS

NOT SOLD SEPARAT

O-ring, .614 OD

2шт.

5

NSS

NOT SOLD SEPARAT

O-ring, 1.063 OD

2шт.

6

NSS

NOT SOLD SEPARAT

O-ring, .498 OD

3шт.

7

NSS

NOT SOLD SEPARAT

O-ring, 1.156 OD

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring, 1.129 OD

2шт.
