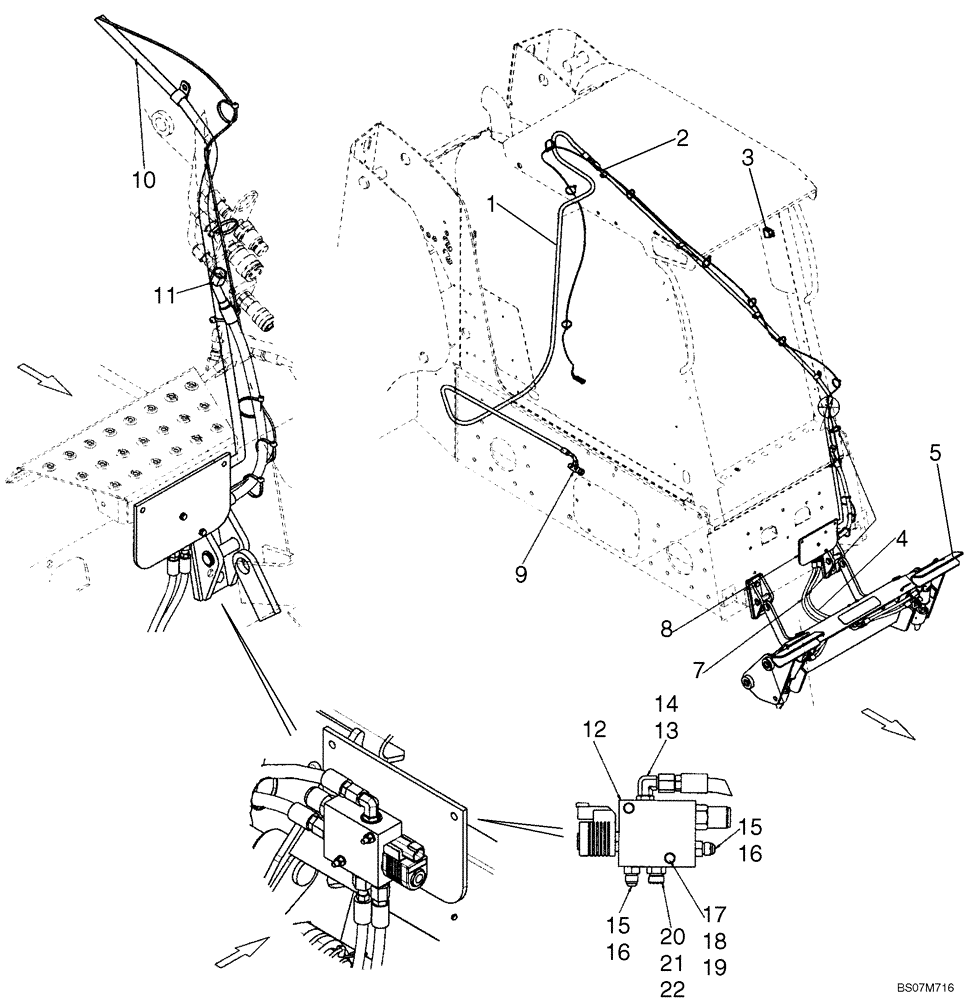

1
87367444
HOSE,9.53mm ID x 3305mm L
Hose, Hydraulic Coupler, 3305mm (130 1/8 in.)
1шт.
2
86624005
CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type
4шт.
3
87642911
SWITCH
Rocker Switch, Hydraulic Coupler
1шт.
4
87440565
HOSE ASSY.,6.35mm ID x 720mm L
Hose, Step To Coupler, 720mm (28 11/32 in.)
1шт.
5
REF
INSTRUCTION
Coupler; See Fig 08-13
1шт.
6
80710
LUBE NIPPLE,1/8” – 27 Dryseal PTF
4шт.
7
87440564
HOSE ASSY.,6.35mm ID x 690mm L
Hose, Step To Coupler, 690mm (27 3/16 in.)
1шт.
8
87423807
PLATE
1шт.
9
87446825
TEE
1шт.
10
87367445
HOSE,9.53mm ID x 2482mm L
Hose, Hydraulic Coupler, 2482mm (97 11/16 in.)
1шт.
11
87413436
HOSE ASSY.
Hose, Case Drain, 655mm (25 13/16 in.)
1шт.
12
87421480
HYDRAULIC VALVE
1шт.
13
76344
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 14
2шт.
14
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
2шт.
15
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 16
2шт.
16
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
2шт.
17
338413
BOLT,Hex, M6 x 60mm, Cl 8.8
2шт.
18
86512440
NUT,M6, Cl 10
4шт.
19
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
8шт.
20
9993143
HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB
Incl 21, 22
1шт.
21
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
22
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
