Запчасти Case 410 (08-09) - HYDRAULICS - ATTACHMENT (MECHANICAL CONTROL) (08) - HYDRAULICS

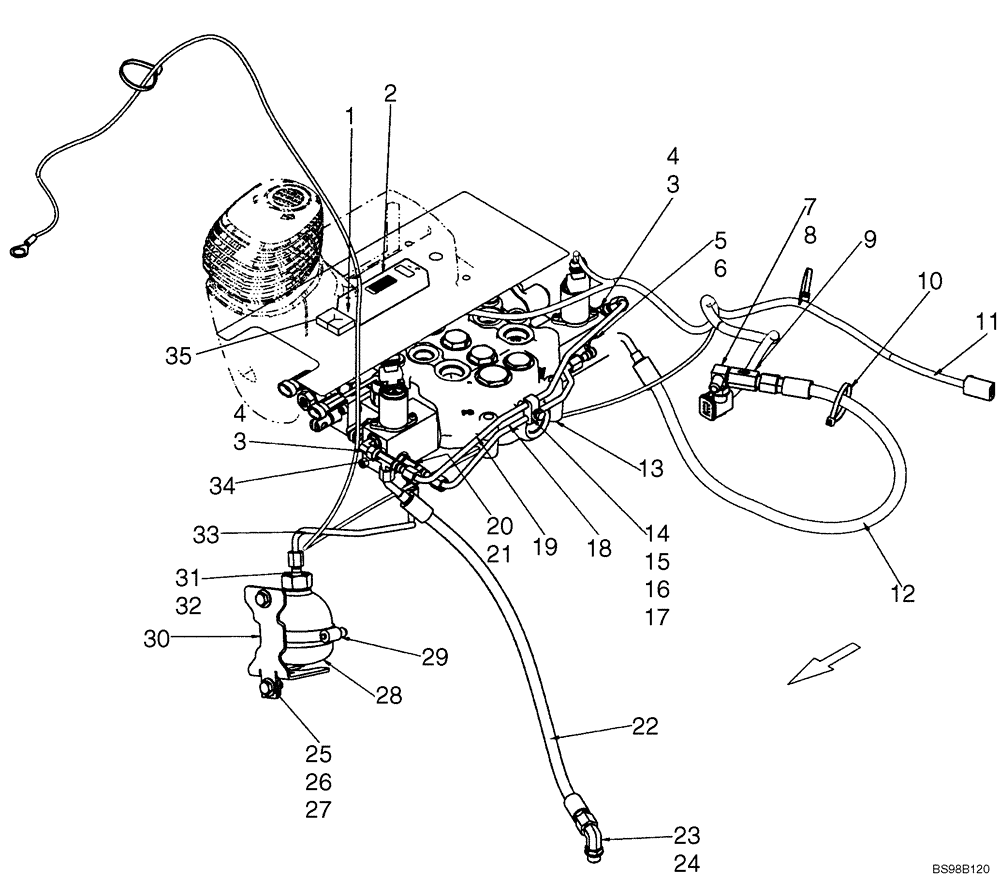

Схема запчастей Case 410 - (08-09) - HYDRAULICS - ATTACHMENT (MECHANICAL CONTROL) (08) - HYDRAULICS
17
27
32
22
15
2
16
1
8
11
35
26
19
28
13
3
31
4
24
5
4
23
11
20
9
14
18
25
29
6
34
7
3
33
21
12
30

Артикул

Название

Примечание

Количество

87617017

SERVICE KIT

Kit, EH Proportional Auxiliary, Mechanical Controls; Incl 1 - 34

1шт.

1

100012

NUT,M4 x 0.7, Cl 8

If Used

2шт.

1

REF

INSTRUCTION

Double Sided Tape, 25.4mm (1 in.) X 150mm (6 in.) Length; If Used

1шт.

2

87657080

VALVE

PWM Driver

1шт.

3

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl 4

2шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

16989

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

Incl 6

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

87441786

VALVE

In Line Check Valve

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

11

87668739

HARNESS

Harness, Electro-Hydraulic Auxiliary; If Used

1шт.

11

87749672

HARNESS

Harness, Electro-Hydraulic Auxiliary

1шт.

12

87516044

HOSE,6.35mm ID x 750mm L

Hose, 750mm (29 1/2 in.)

1шт.

13

87583286

VALVE

Control Valve, Manual Control; See Fig 08-19

1шт.

14

608089

CLAMP

1шт.

15

80120101

BOLT

1шт.

16

86624181

WASHER,M6

1шт.

17

87030561

NUT,M6 x 1, Cl 8

1шт.

18

87563970

HYD TUBE,6.35 mm OD

Tube, Pilot Pressure

1шт.

19

87564001

HYD TUBE,6.35 mm OD

Tube, Drain

1шт.

20

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 21

1шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

87460042

HOSE,6.35mm ID x 560mm L

Hose, Case Drain 580mm (22 13/16 in.)

1шт.

23

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

122158A1

NUT,M8, U

2шт.

28

87376969

ACCUMULATOR

1шт.

29

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

30

87621245

ANGLE

If Used

1шт.

30

87473790

BRACKET

Accumulator Bracket

1шт.

31

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 32

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

87447764

HYD TUBE,6.35 mm OD

Tube, Pilot Pressure

1шт.

34

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

35

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.

Выбрано товаров: 39
