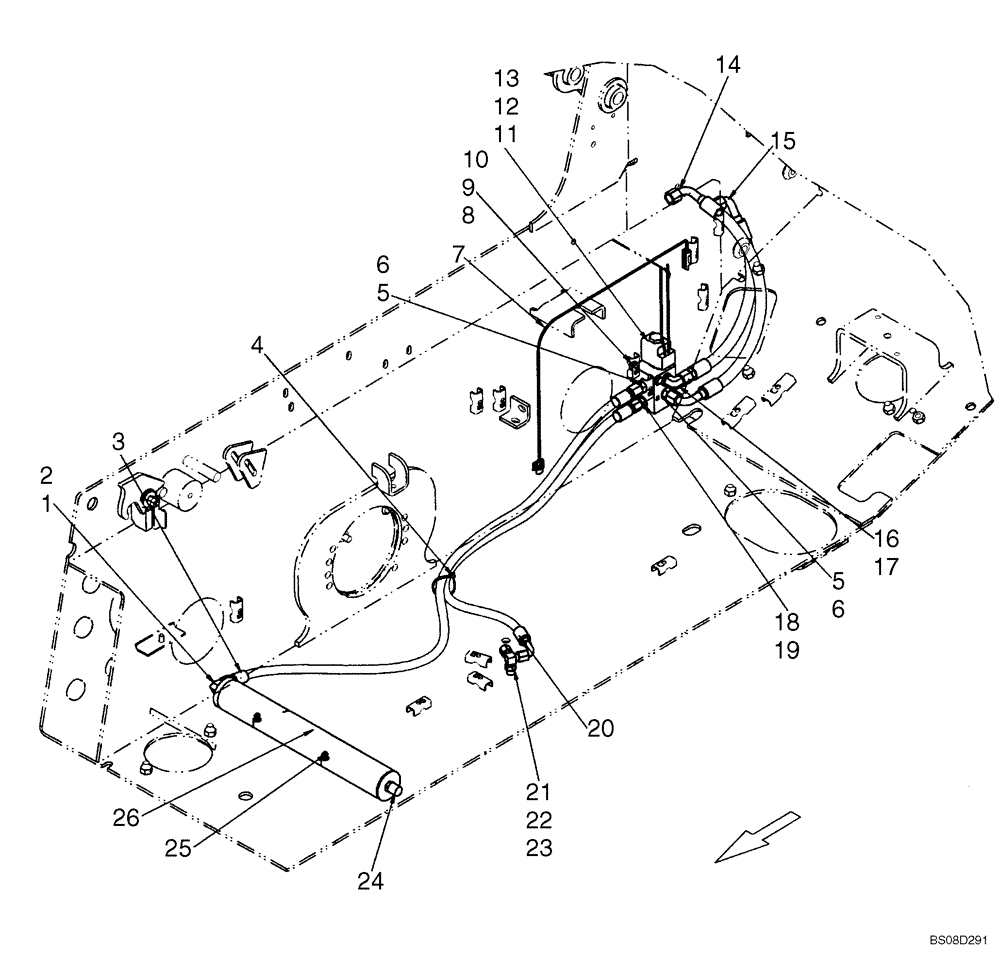

Запчасти Case 410 (08-07) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

87663452

SERVICE KIT

Kit, Ride Control; Incl 1 - 28

1шт.

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 2

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87712225

HOSE

Hose, Valve To Accumulator, 1282mm (50 1/2 in.)

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

5

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 6

2шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

310838A1

HARNESS

Harness, Ride Control

1шт.

8

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

9

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

11

87428444

VALVE

Solenoid Valve, Ride Control; Incl 12, 13

1шт.

12

87424684

SEAL KIT

Seal Kit

1шт.

13

87424685

REPAIR KIT

Solenoid, 12VDC, 4 Way

1шт.

14

87441313

HOSE ASSY.

Hose, Valve To Cylinder Base, 505mm (19 7/8 in.)

1шт.

16

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 17

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87456974

HOSE ASSY.

Hose, Valve To Tank, 970mm (38 3/16 in.)

1шт.

21

574342

CAP,9/16" - 18 JIC

1шт.

22

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 23

1шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic Accumulator

1шт.

25

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

26

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System

1шт.

27

304083A1

DECAL

Decal, Ride Control

2шт.
