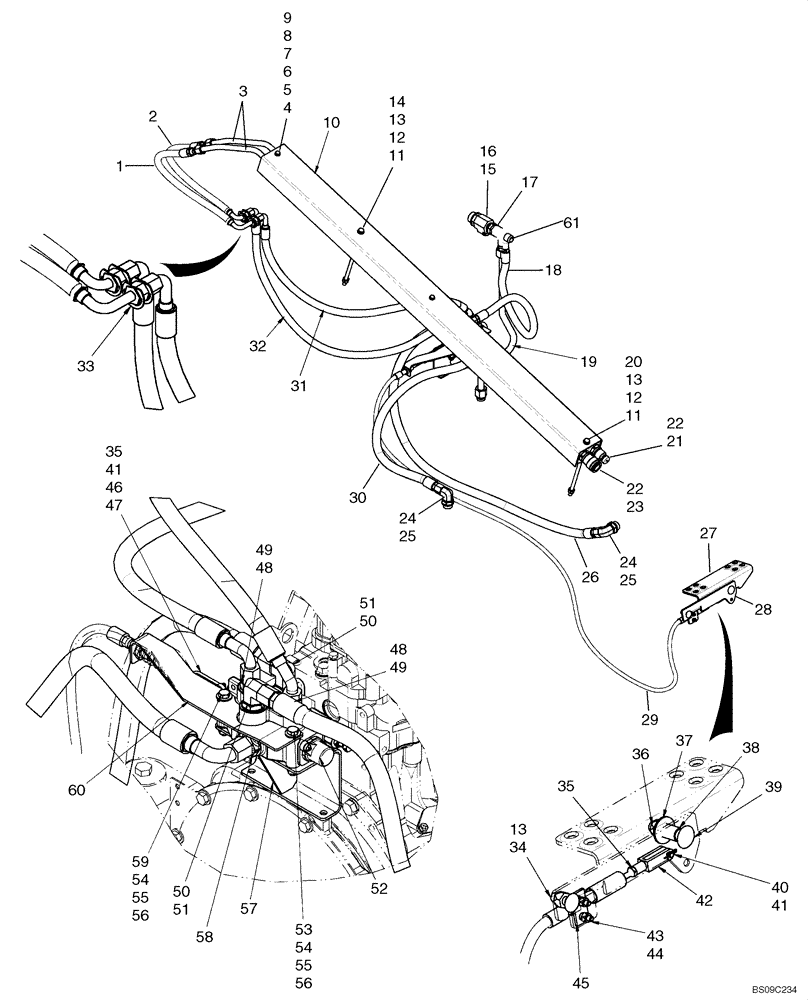

Запчасти Case 410 (08-06) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

87638871

SERVICE KIT

Kit, Secondary Front Auxiliary; Incl 1 - 60

1шт.

1

87462215

HOSE ASSY.

Hose, Secondary Auxiliary, 633mm (24 15/16 in.)

1шт.

2

87444373

HOSE ASSY.,12.7mm ID x 583mm L

Hose, Secondary Auxiliary, 583mm (23 in.)

1шт.

3

87444371

HYD TUBE,15.88 mm OD

Tube, Secondary Auxiliary

2шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

5

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

6

257857A1

CLAMP

2шт.

7

194739A1

LEDGER PLATE

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

259905A1

SPACER

Spacer, 1/4 Sch 40 Pipe X 31 1/4 Lg

2шт.

10

87447965

COVER

Cover, Secondary Auxiliary Tube

1шт.

11

86624977

BOLT,Hex, M10 x 245mm, Cl 8.8

2шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

13

86512554

NUT,M10 x 1.5, Cl 10

3шт.

14

87447010

SPACER

1шт.

15

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl 16

1шт.

16

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

18

87728980

HOSE

Hose, Tank Return 761mm (30 in.)

1шт.

19

87730807

TUBE,19.05 mm OD x 529.5, 164.5 mm L

Tube, Valve To Filter

1шт.

20

87447009

BRACKET

1шт.

21

87417308

COUPLING, BREAK AWAY

Coupler, 1/2 Male Quick Disconnect; If Used

1шт.

21

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

22

595460

BHD LOCK NUT,7/8" - 14

2шт.

23

393394A1

COUPLING, BREAK AWAY

Coupler, 1/2 Female Quick Disconnect; If Used

1шт.

23

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

24

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 25

2шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87728988

HOSE

Hose, Secondary Auxiliary Inlet, 1260mm (49 5/8 in.)

1шт.

27

87423833

PEDAL ASSY.

If Used

1шт.

27

87741562

PEDAL

1шт.

28

87715341

PLATE

Mounting Plate

1шт.

29

87739943

CABLE,2185mm L

Cable, Secondary Auxiliary

1шт.

30

87728998

HOSE

Hose, Secondary Auxiliary Outlet, 817mm (32 3/16 in.)

1шт.

31

87729002

HOSE

Hose, Secondary Auxiliary, 1018mm (40 1/16 in.)

1шт.

32

87729380

HOSE

Hose, Secondary Auxiliary, 1116mm (43 15/16 in.)

1шт.

33

87301328

SNAP RING

Retaining Ring External "E" Style # 98 Plated

1шт.

34

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

35

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

36

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

37

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

38

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Bronze Bushing

1шт.

39

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

40

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

41

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

42

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

43

87442439

ROD

1шт.

44

86512440

NUT,M6, Cl 10

2шт.

45

H373779

LARGE PLATE

PLATE, LARGE

1шт.

46

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

47

87444160

CLEVIS

1шт.

48

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 49

2шт.

49

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

50

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 51

2шт.

51

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

52

87017348

VALVE

Secondary Auxiliary Valve

1шт.

53

86639028

BOLT,Hex, M8 x 65mm, Cl 8.8, Full Thd

1шт.

54

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

55

9706690

NUT,M8 x 1.25, Cl 8

2шт.

56

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

57

87729255

BRACKET

1шт.

58

129878A1

FITTING

1шт.

59

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

1шт.

60

87739947

BRACKET

1шт.

61

87698812

HYD CONNECTOR

Tee, 12-16-12 37FL Swvl Run; Use On High Flow Only

1шт.
