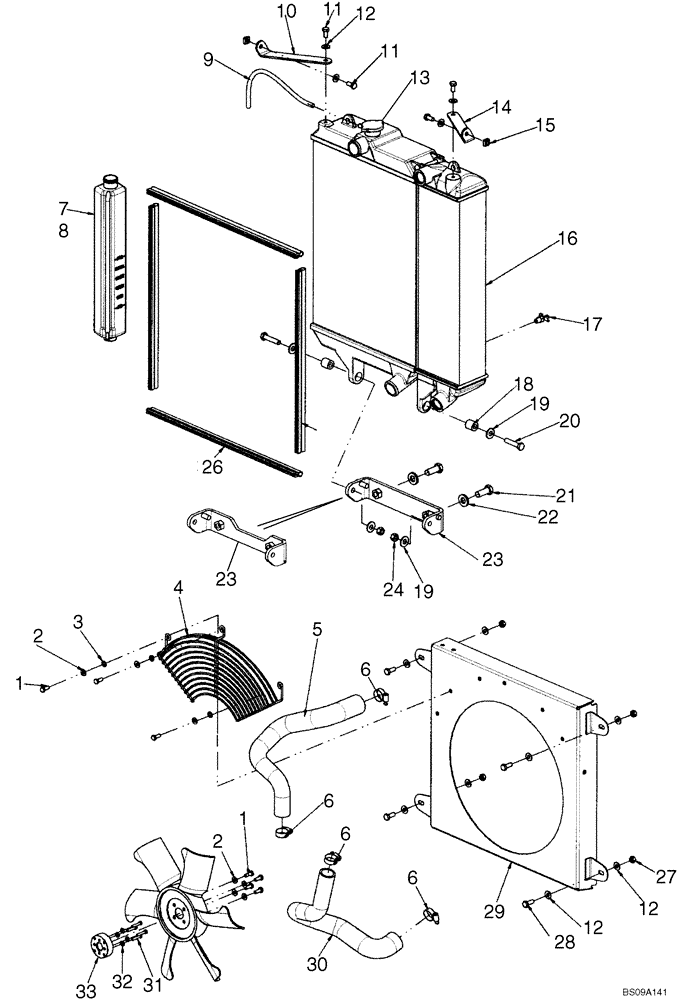

Запчасти Case 410 (02-01) - RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

87018958

GUARD

Fan Guard

1шт.

5

87661366

RADIATOR HOSE,34.00 mm ID, 45.00 mm ID x 277.80 mm, SAE 20R4 Class D1 Or D2

Formed, Upper

1шт.

6

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

If Used

2-4шт.

6

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

7

87020980

BOTTLE,2L

Coolant Recovery Bottle; Incl. 8

1шт.

8

257884A1

CAP

Cap

1шт.

9

87534725

HOSE,7.9mm ID x 400mm L, SAE 20R3

Coolant Recovery

1шт.

10

87651799

BRACKET

Upper Radiator Mount, RH

1шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3-4шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8-12шт.

13

87687375

RADIATOR CAP

Radiator Cap; Included With Ref 16

1шт.

14

87651800

BRACKET

Upper Radiator Mount, LH

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

16

87660842

RADIATOR

Radiator And Oil Cooler Unit; See Fig 02-02; Incl 13

1шт.

17

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

18

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

2шт.

19

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

Replaces 87528989, M12 X 30 X 2.5

4шт.

20

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

Replaces 87021825, Hex, M12 x 55, 10.9

2шт.

21

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

22

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

23

87720465

BRACKET

Lower Hinge Mount; Replaces 87676100

1шт.

24

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

Nut, M12 X 1.75 10 ZND

2шт.

25

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

26

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 1/4 in.)

2шт.

27

86500689

NUT,M10 x 1.5, Cl 10

Replaces 87344209; M10

4шт.

28

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

Replaces 43139, Hex, M10 x 25, 8.8

4шт.

29

87720450

SHROUD

Fan Shroud; Replaces 87660814

1шт.

30

87661375

RADIATOR HOSE,34.00 mm ID, 45.00 mm ID x 322.50 mm, SAE 20R4 Class D1 Or D2

Formed, Lower

1шт.

31

80120101

BOLT

M6 X 30 8.8 ZND

4шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

33

87470292

SPACER

Replaces 9860094

1шт.

34

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

Replaces 513309, #24 Wormgear F 2.0 X 1.06 SST

2шт.

34

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

Replaces 507586

2шт.
