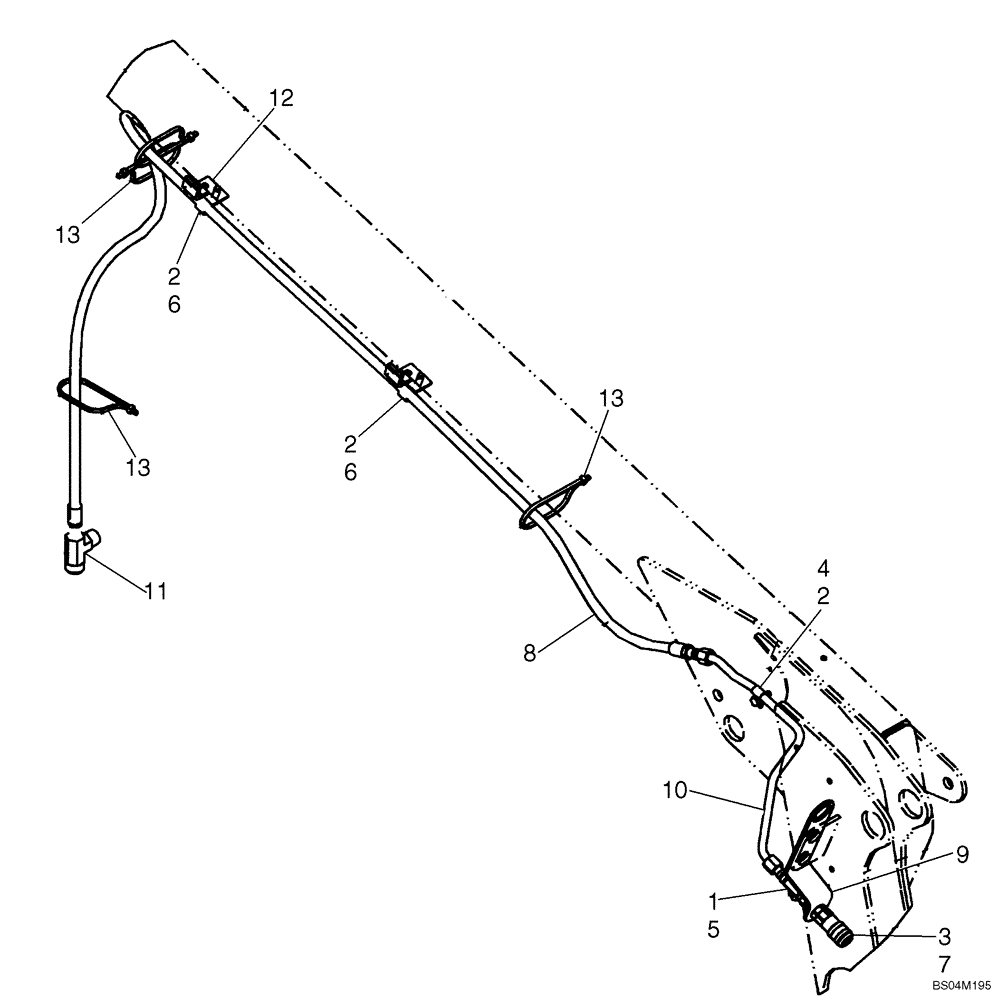

Запчасти Case 410 (08-04) - HYDRAULICS - CASE DRAIN; IF USED (08) - HYDRAULICS

87685968

SERVICE KIT

Kit, Loader Arm Case Drain; Incl 1 - 13

1шт.

1

262159

CAP,3/4" - 16 Fem JIC

Remove When Hydraulic Coupler Option Is Installed

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

3

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

6

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

87426293

TEE

1шт.

7

87019286

COUPLING

Female

1шт.

8

87480620

HOSE

2475 mm (24 7/16 in.); Replaces 87665162

1шт.

9

87023530

BRACKET

1шт.

10

87024208

HYD TUBE,12.70 mm OD

1шт.

11

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

Replaces 90 deg Elbow In Tank Case Drain Port

1шт.

12

87447813

BRACKET

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.
