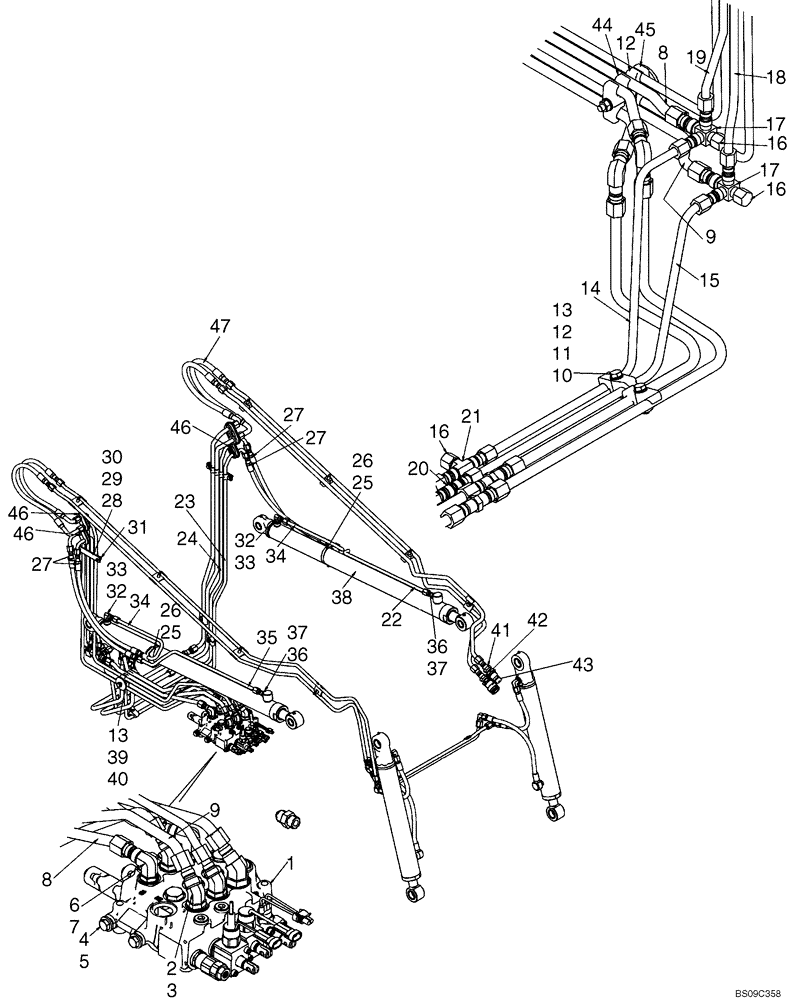

Запчасти Case 410 (08-01) - HYDRAULICS - LIFT (08) - HYDRAULICS

1

87583285

VALVE

Manual Control Valve;See Fig 08-19

1шт.

2

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 3

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

If Used

2шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl. 7

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

87420985

HYD TUBE,15.88 mm OD x 574.1, 49.7 mm L

Raise; 5/8 Tube

1шт.

9

87420983

HYD TUBE,15.88 mm OD x 624.6, 471.8 mm L

Lower; 5/8 Tube

1шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

11

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

12

D120679

CLAMP,Tube, 1/2"

1/2 in

2шт.

13

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

14

87436542

HYD TUBE,12.7 mm OD x 468.3, 382.9 mm L

Left Hand, Raise; 1/2 in. Tube

1шт.

14

87745168

TUBE,12.7 mm OD x 382.9, 336.6 mm L

Left Hand, Raise; 1/2 in. Tube

1шт.

15

87436543

HYD TUBE,12.7 mm OD x 423.6, 332.2 mm L

Left Hand, Lower; 1/2 in. Tube

1шт.

16

262159

CAP,3/4" - 16 Fem JIC

37°, 3/4"-16

3шт.

17

87404825

TEE

2шт.

18

87405139

HYD TUBE,12.7 mm OD x 647.2, 186.1 mm L

Right Hand; Lower; 1/2 in Tube

1шт.

19

87405141

HYD TUBE,12.7 mm OD x 570.8, 107.2 mm L

Right Hand; Raise; 1/2 in Tube

1шт.

20

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1-2шт.

21

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

22

406086A1

TUBE

Left Hand; Lower; 1/2 in Tube

1шт.

23

87436540

HYD TUBE,12.7 mm OD

Left Hand; Raise; 1/2 in Tube

1шт.

24

87436541

HYD TUBE,12.7 mm OD

Left Hand; Lower; 1/2 in Tube

1шт.

25

R24703

SUPPORT

2шт.

26

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

Type F, #56

2шт.

27

390211A1

HOSE ASSY.,9.53mm ID x 575mm L

Raise

4шт.

28

406940A1

BAR

1шт.

29

406941A1

BAR

1шт.

30

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

Tapping Screw 5/16 x .62

1-2шт.

31

87029931

SCREW,Hex Washer, 5/16" - 18 x 1"

Replaces 281-54816; If Used

1шт.

31

87385021

SCREW,HWH, 5/16" - 18 x 1/2"

Tapping Screw 5/16 x .50

1шт.

32

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 32

2шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

396243A2

TUBE,12.7 mm OD

Raise; 1/2 in Tube

2шт.

35

406084A1

TUBE

Right Hand; Lower; 1/2 in Tube

1шт.

36

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 37; If Used

2шт.

36

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1/2 x 37 Fl x 1/2; Incl 37

2шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

87438185

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 893mm Stroke

Lift; See Figure 08-15

2шт.

39

86500689

NUT,M10 x 1.5, Cl 10

1шт.

40

87040707

WASHER,0.53" ID x 2.25" OD x 0.18" Thk

.531 x 2.25 x .179

1шт.

41

595460

BHD LOCK NUT,7/8" - 14

2шт.

42

87417308

COUPLING, BREAK AWAY

1/2 in Male; Incl 87426762; If Used

1шт.

42

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 in Male

1шт.

43

393394A1

COUPLING, BREAK AWAY

1/2 in Female; If Used

1шт.

43

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 in Female

1шт.

44

D120613

CLAMP,20mm ID

5/8 in

1шт.

45

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

46

376523A2

SUPPORT,1/2"

1/2 in Hose Support

6шт.

47

87658756

Remove With Pkg - No High Flow; See Fig 08-03

1шт.
