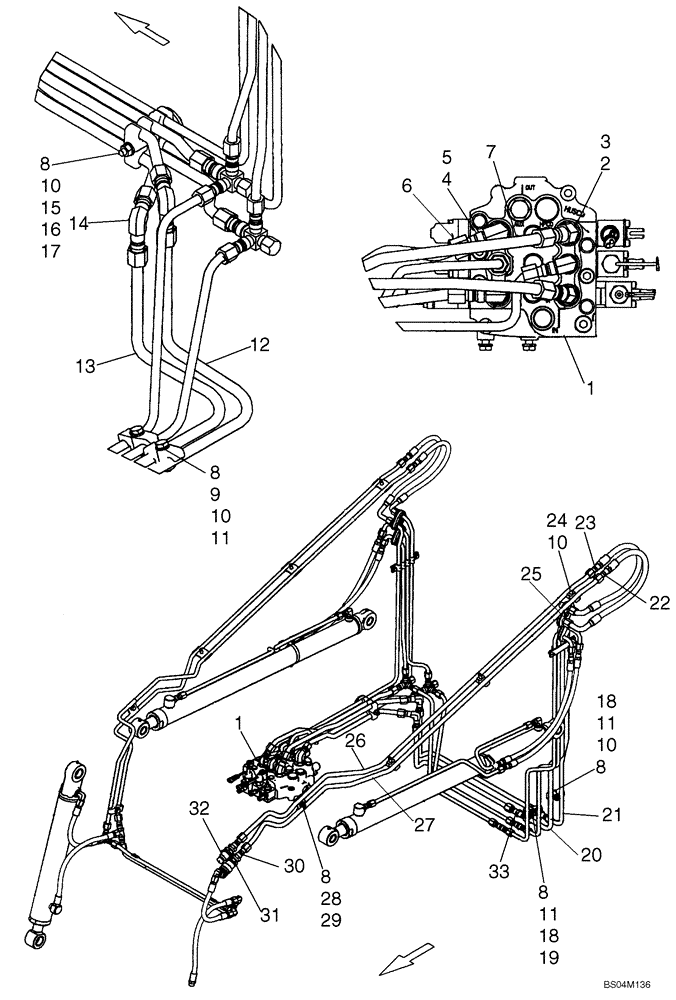

Запчасти Case 410 (08-03) - HYDRAULICS - AUXILIARY (08) - HYDRAULICS

1

87446760

CONTROL VALVE

3000 PSI; See Figure 08-09

1шт.

1

87635384R

REMAN-HYD VALVE

410 SKID STEER, NA BSN N7M480924, AUXILIARY (2/05-), Reman for New PN 87446760

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available; If Used

1шт.

1

87635384R

REMAN-HYD VALVE

410 SKID STEER, NA BSN N7M480924, AUXILIARY (2/05-), Reman for New PN 87527172

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31; If Used

1шт.

2

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 3

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 5

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

87443801

HYD TUBE,15.88 mm OD

5/8 Tube

1шт.

7

87420987

HYD TUBE,15.88 mm OD x 516.3, 426.6 mm L

5/8 Tube

1шт.

8

140017

WASHER,M10 x 20mm OD x 2mm Thk

7шт.

9

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

10

D120613

CLAMP,20mm ID

5/8

4шт.

11

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

3шт.

12

87436547

HYD TUBE,15.88 mm OD

5/8 Tube

1шт.

13

87436546

HYD TUBE,15.88 mm OD

5/8 Tube

1шт.

14

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

2шт.

15

495-81239

WASHER,17/32" x 2 1/4" x .180"

1шт.

16

86500689

NUT,M10 x 1.5, Cl 10

1шт.

17

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

19

D120679

CLAMP,Tube, 1/2"

1/2 in

2шт.

20

87436544

HYD TUBE,15.88 mm OD x 1030.6, 266.5 mm L

5/8 Tube

1шт.

21

87436545

HYD TUBE,15.88 mm OD x 1059.1, 194.2 mm L

5/8 Tube

1шт.

22

406087A1

HOSE ASSY.

650 mm (25.59 in)

1шт.

23

406240A1

HOSE ASSY.

625 mm (24.61 in)

1шт.

24

281-54928

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 1 3/4"

3шт.

25

87018001

SUPPORT

5/8

2шт.

26

87024311

HYD TUBE,15.90 mm OD

1шт.

27

87024310

HYD TUBE,15.90 mm OD

1шт.

28

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

1шт.

29

86501706

CLAMP

Double

1шт.

30

595460

BHD LOCK NUT,7/8" - 14

2шт.

31

393394A1

COUPLING, BREAK AWAY

1/2 in Female

1шт.

32

87417308

COUPLING, BREAK AWAY

1/2 in Male; Incl. 87426762

1шт.

87426762

RING

1шт.
