Запчасти Case 410 (04-12) - CONTROLS, RIGHT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS

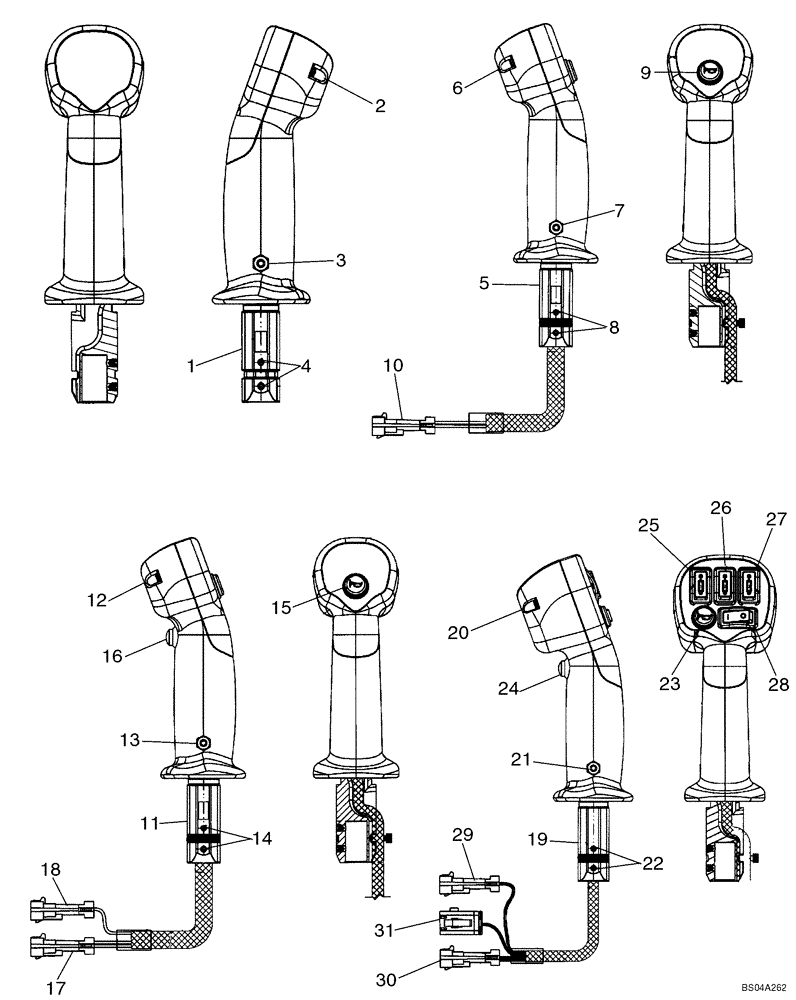

Схема запчастей Case 410 - (04-12) - CONTROLS, RIGHT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS
13
16
12
11
14
8
3
6
2
28
19
4
27
1
15
20
24
10
26
22
29
18
5
23
21
31
17
9
7
30
25

Артикул

Название

Примечание

Количество

87458322

HANDLE

WITHOUT SWITCHES; Incl. 1 - 4

1шт.

1

87456565

ADAPTER

Mount

1шт.

2

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

3

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

4

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

87458323

HANDLE

WITH HORN; Incl. 5 - 10

1шт.

5

87456565

ADAPTER

Mount

1шт.

6

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

7

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

9

87427729

SWITCH

Horn

1шт.

10

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

87458324

HANDLE

WITH HORN, RIDE CONTROL; Incl. 11 - 18

1шт.

11

87456565

ADAPTER

Mount

1шт.

12

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

13

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

14

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

15

87427729

SWITCH

Horn

1шт.

16

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

17

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

18

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

87458325

HANDLE

WITH HORN, RIDE CONTROL, FRONT ELECTRIC; Incl. 19 - 31

1шт.

19

87456565

ADAPTER

Mount

1шт.

20

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

21

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

22

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

23

87427729

SWITCH

Horn

1шт.

24

87427352

SWITCH

Trigger; On/Off; Ride Control

1шт.

25

87427685

SWITCH

Rocker; Momentary; Front Electric Switch 1

1шт.

26

87427686

SWITCH

Rocker; Momentary; Front Electric Switch 2

1шт.

27

87427687

SWITCH

Rocker; Momentary; Front Electric Switch 3

1шт.

28

87427688

SWITCH

Rocker; 0n/Off; Front Electric Switch 4

1шт.

29

253294A1

CONNECTOR, ELEC

CONNECTOR

1шт.

30

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

31

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

1шт.

Выбрано товаров: 35
