Запчасти Case 410 (04-11) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS

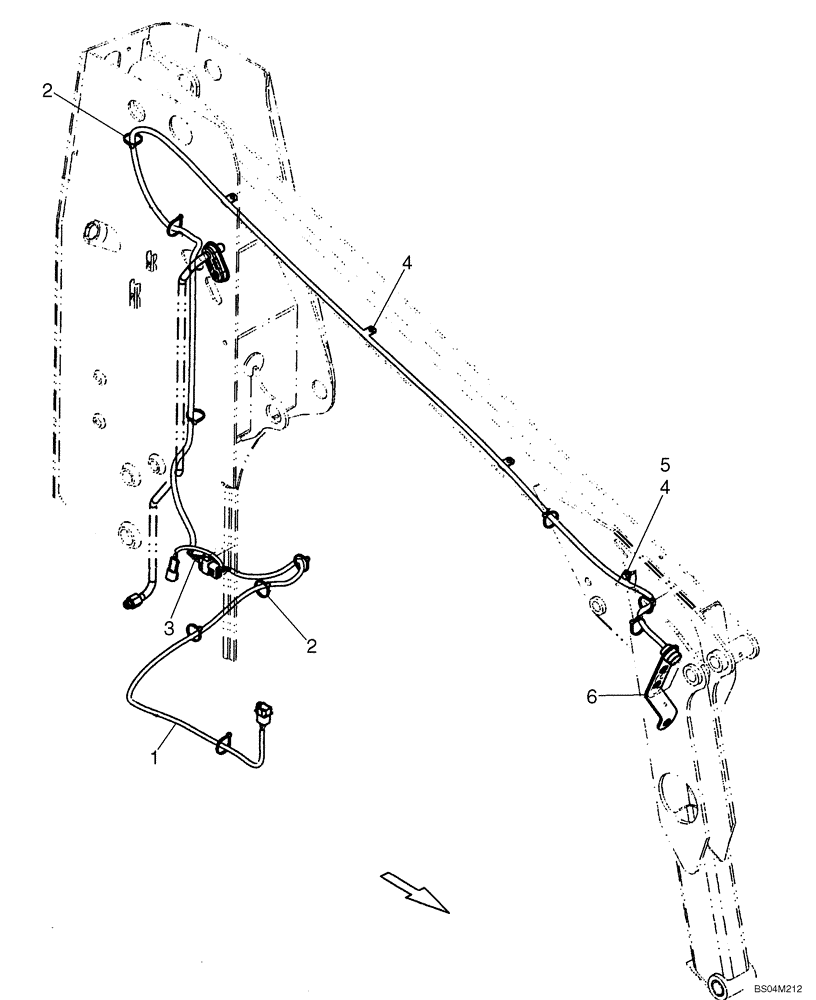

Схема запчастей Case 410 - (04-11) - HARNESS, FRONT - AUXILIARY (04) - ELECTRICAL SYSTEMS
6
3
4
2
1
2
5
4

Артикул

Название

Примечание

Количество

86994296

DIA KIT, ADD PROD

Kit, Front Auxiliary Electric; Incl 1 - 6

1шт.

1

87039334

HARNESS

Front Electric, Chassis

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

10шт.

3

87441574

WIRE HARNESS

Front Auxiliary Electric

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

11.1 mm

3-4шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

If Used

1шт.

6

87023530

BRACKET

1шт.

Выбрано товаров: 7
