Запчасти Case 410 (04-10) - OPTIONS, ELECTRICAL - MOUNTING (04) - ELECTRICAL SYSTEMS

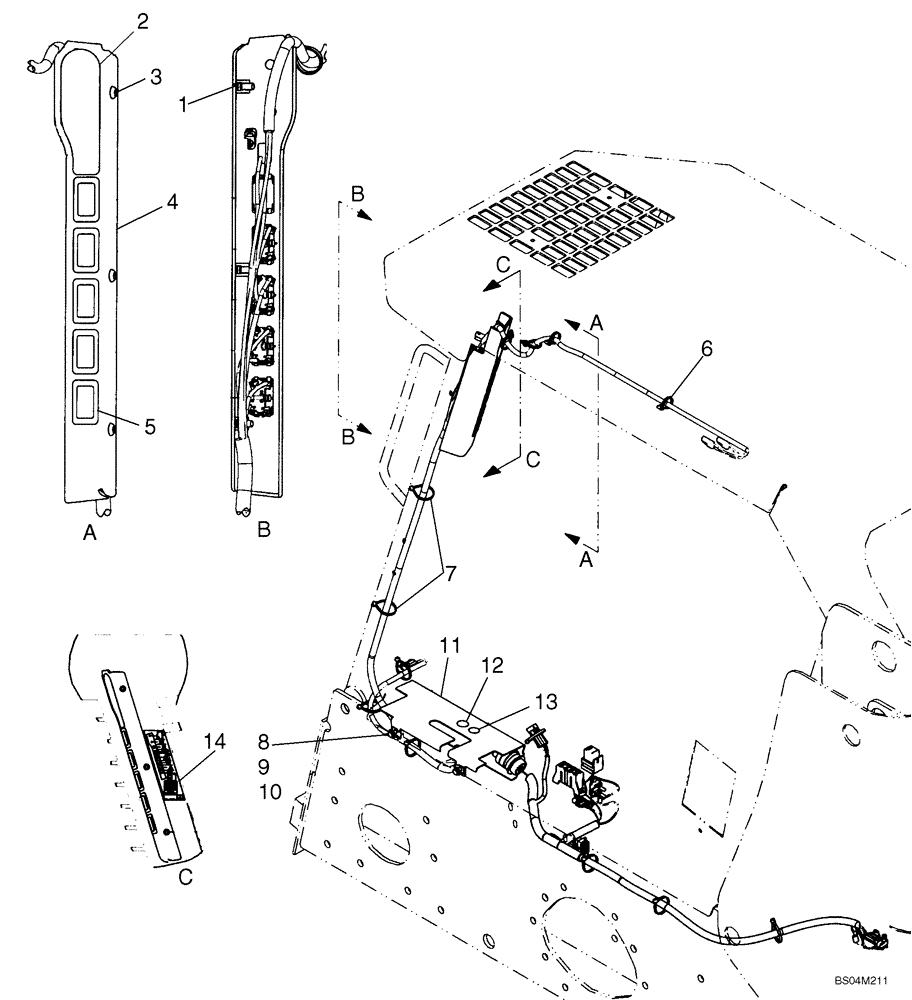

Схема запчастей Case 410 - (04-10) - OPTIONS, ELECTRICAL - MOUNTING (04) - ELECTRICAL SYSTEMS
9
14
2
1
11
4
3
6
12
10
5
13
8
7

Артикул

Название

Примечание

Количество

1

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

2

87034948

DECAL

Blank Cover

1шт.

3

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

4

87035417

PANEL

Used With Decal Figure 09-36, Ref 5

1шт.

Panel does not include decal (Blank decal is 87034948)

1шт.

4

87555704

PANEL

Used With Decal Figure 09-36, Ref 5A

1шт.

Panel does not include decal (Blank decal is 87034948)

1шт.

5

86000535

PLUG,1.427" x .62", Plastic

5шт.

6

347610A1

ANCHOR

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

833-40408

NUT,M8, U

2шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

87035749

COVER

Options Harness

1шт.

12

86627131

PLUG,Dome, .875" hole, Nylon

1шт.

13

84014802

PLUG,Dome, .750" hole, Nylon

1шт.

14

87035742

DECAL

Option Panel

1шт.

Выбрано товаров: 17
