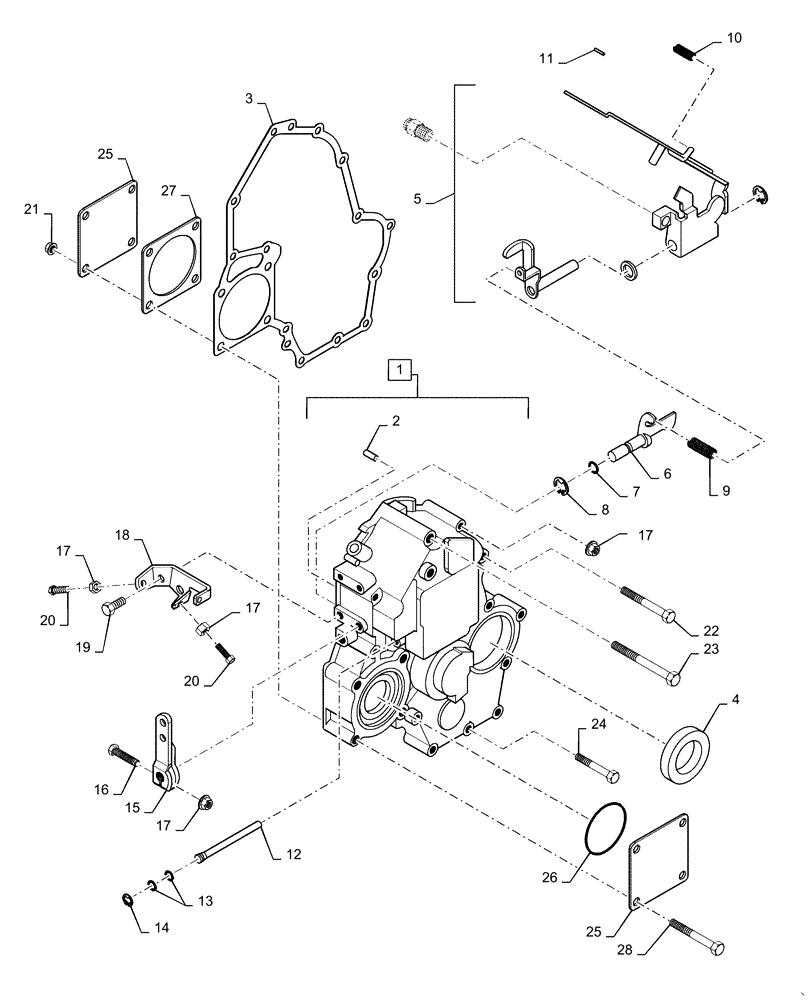

Запчасти Case 410 (02-14) - TIMING GEAR CASE, GOVERNOR (02) - ENGINE

1

SBA165106480

CASE

Timing Gear, Incl 2

1шт.

2

SBA030300414

PIN

Spring

1шт.

3

SBA165996550

GASKET

1шт.

4

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

5

SBA125046510

LEVER

1шт.

6

SBA125156170

ARM

1шт.

7

SBA052109110

O-RING

1шт.

8

SBA036800008

SNAP RING

1шт.

9

SBA198217380

SPRING

Main

1шт.

10

SBA198217560

SPRING

1шт.

11

SBA031100004

SPRING

Snap

1шт.

12

SBA125116141

ROD

1шт.

13

SBA052109108

O-RING

2шт.

14

SBA036800005

SNAP RING

1шт.

15

SBA125416300

LEVER

Speed

1шт.

16

SBA010110630

BOLT

1шт.

17

SBA02310006

NUT

4шт.

18

SBA125976120

BRACKET

1шт.

19

SBA011310614

BOLT

2шт.

20

SBA010109264

BOLT

2шт.

21

SBA023100008

NUT

4шт.

22

SBA011310660

BOLT

3шт.

23

SBA011310680

BOLT

2шт.

24

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

7шт.

25

SBA165206010

COVER

2шт.

26

SBA052300600

O-RING,G60

1шт.

27

SBA165996610

GASKET

1шт.

28

SBA010310865

BOLT

4шт.
