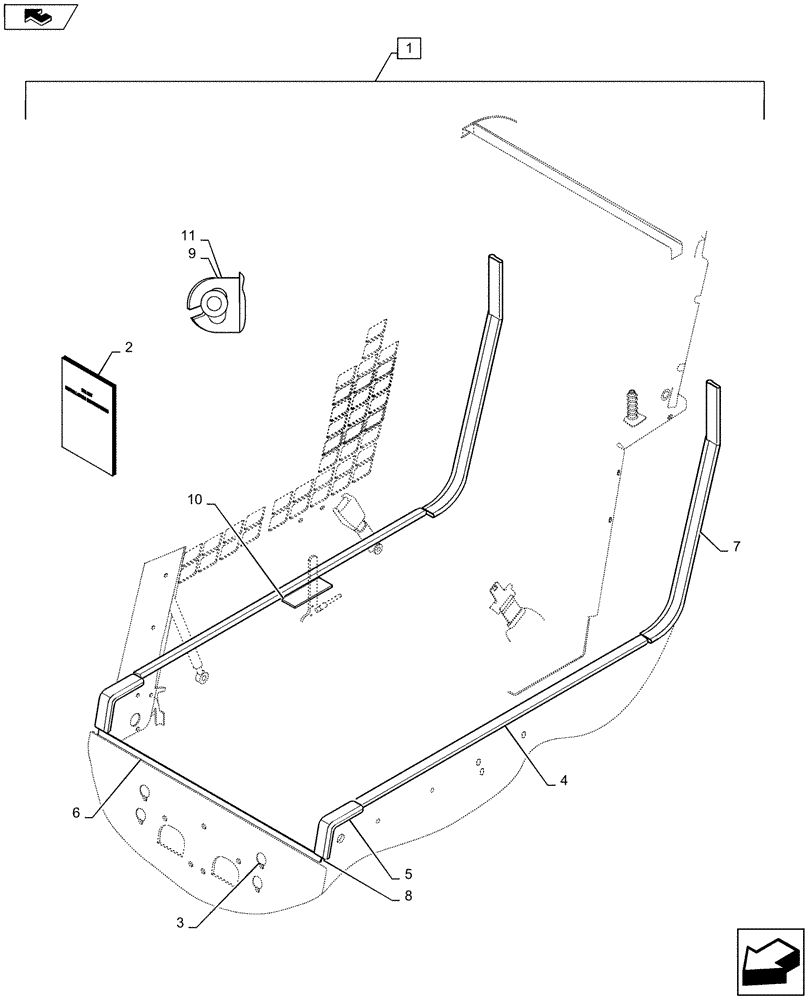

Запчасти Case 410 (88.088.03) - DIA KIT, SOUND AND SEAL (89 DBA) (88) - ACCESSORIES

1

86994304

CONSTRUCTION DIA

Installation, Sound and Seal (89 Dba), Incl 2 - 11

1шт.

2

6-77430

INSTRUCTION

Installation

1шт.

3

299274A2

COVER,35mm OD

35mm Dia Lexan

6шт.

4

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

2шт.

5

381175A2

SEAL

Front Corner

2шт.

6

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

7

394745A2

SEAL,800mm L

Rops Rear Wing

2шт.

8

394748A1

INSULATION

Front Side

1шт.

9

400988A1

BOOT

Seat Bar Linkage

1шт.

10

430284A1

INSULATING PANEL

Hand Throttle Seal

1шт.

11

87460573

PLATE

Boot Hold Down

1шт.
