Запчасти Case 410 (88.055.02) - DIA KIT, SELF LEVEL, SINGLE DIRECTIONAL (88) - ACCESSORIES

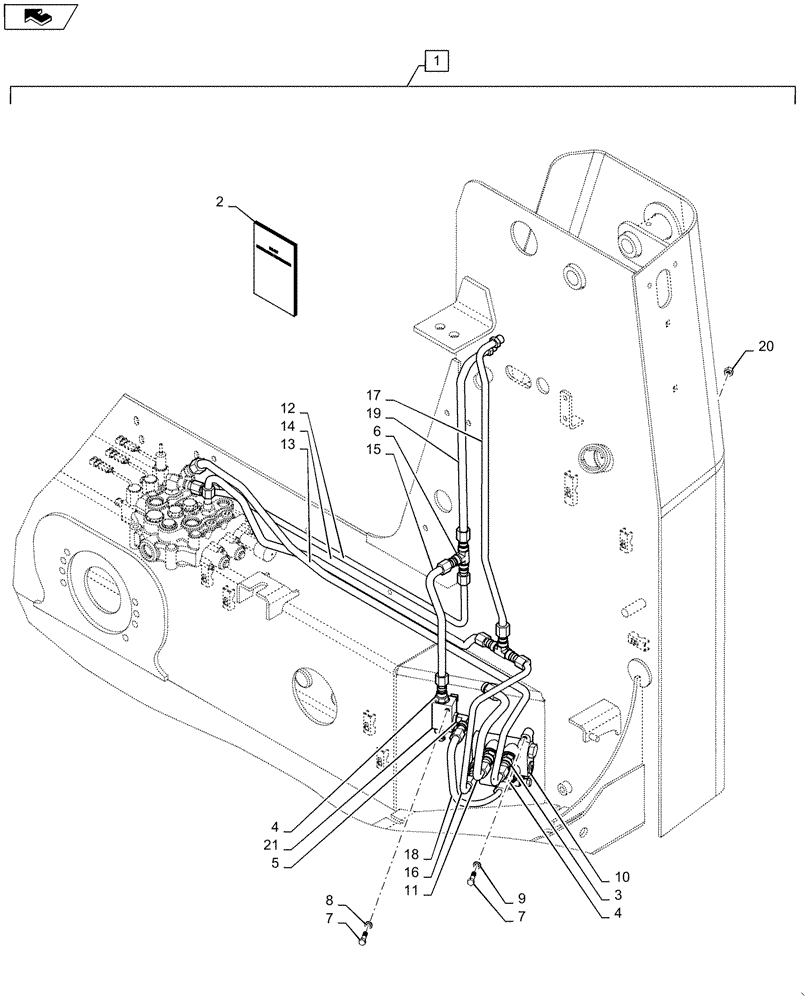

Схема запчастей Case 410 - (88.055.02) - DIA KIT, SELF LEVEL, SINGLE DIRECTIONAL (88) - ACCESSORIES
10
16
7
5
15
2
8
3
14
13
18
9
17
6
21
12
home
20
7
11
19
1
4
4

Артикул

Название

Примечание

Количество

1

86994298

DIA KIT, ADD PROD

Self Level, Single Directional, Incl 2 - 21

1шт.

2

6-79240

INSTRUCTION

Installation

1шт.

3

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

2шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

3шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

Union

2шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

8

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

9

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

10

87447793

VALVE

Self Level

1шт.

11

87412217

TUBE,15.88 mm OD x 132.5, 120.8 mm L

Assembly, Valve Out

1шт.

12

87436538

HYD TUBE,12.7 mm OD

Tip (Curl) Self Level

1шт.

13

87421301

HYD TUBE,15.88 mm OD

Assembly, Lift Lower

1шт.

14

87421303

HYD TUBE,12.7 mm OD x 715.5, 72.5 mm L

Assembly, Tip Dump

1шт.

15

87445306

HYD TUBE,12.7 mm OD

Assembly, Valve, Bucket Rod

1шт.

16

87421448

HYD TUBE,12.7 mm OD x 216.1, 197.1 mm L

Assembly, Valve, Bucket Base

1шт.

17

87421452

HYD TUBE,12.7 mm OD x 674.7, 87 mm L

Assembly, Tip Dump

1шт.

18

87421454

HYD TUBE,12.7 mm OD x 132, 101.7 mm L

Assembly, Self Level To Relief

1шт.

19

87436539

HYD TUBE,12.7 mm OD

Assembly, Tip (Curl) Self Level

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

21

294650A1

VALVE

Assembly, In-Line Relief

1шт.

Выбрано товаров: 21
