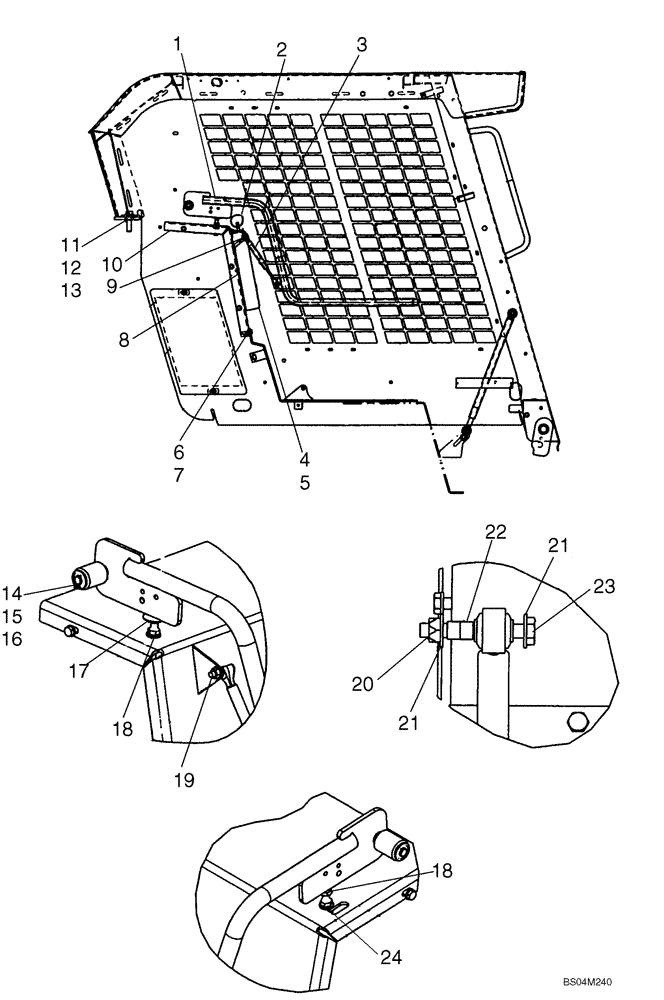

Запчасти Case 410 (09-24) - SEAT BAR (09) - CHASSIS

1

87417620

BAR

Seat Restraint

1шт.

2

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

3

374073A5

GAS STRUT

Seat Assist; Incl. 87051003

1шт.

87051003

BALL JOINT

Replaces 87418011

2шт.

4

R46464

CASE

Incl. 5

1шт.

5

N7189

BEARING

Latch

1шт.

6

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

8

151-522

RIVET,Pop, 3/16" x .575"

3шт.

9

189609A1

BALL STUD,M8 x 1.25

M8 x 1.25

2шт.

10

87458292

ANGLE

Heat Shield

1шт.

10

87366414

HEAT SHIELD

Heat Shield; Replaces 87458292

1шт.

11

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

12

391703A2

WASHER,16.67mm ID x 55mm OD x 6.35mm Thk

ROPS Mounting

2шт.

13

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

14

D143415

SNAP RING,0.50” ID, Klipring

1/2 in

2шт.

15

374161A2

BUSHING

Seat Bar

2шт.

16

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .095 in

2шт.

17

379615A1

BOLT

3/8 x 2.5 in

1шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

19

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

21

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

M10 x 24 x 2

2шт.

22

254697A1

SPACER

Pivot Assist Helper Spring

2шт.

23

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

24

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.
