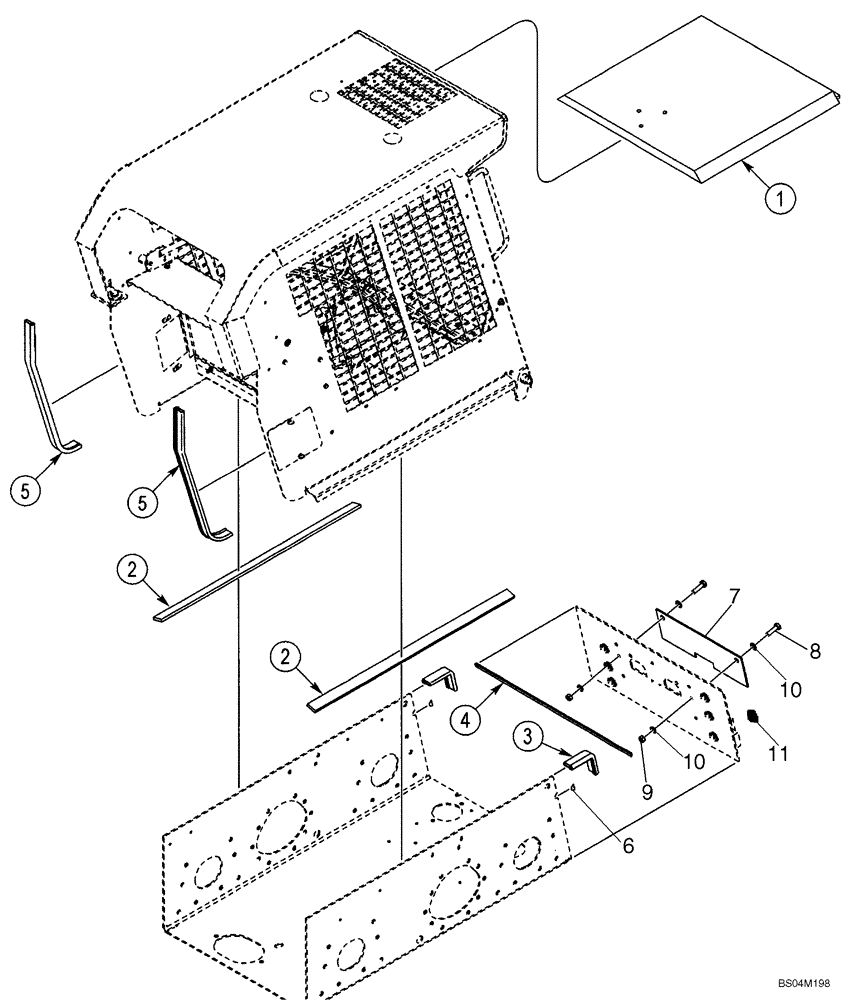

Запчасти Case 410 (09-19) - SOUNDPROOFING (09) - CHASSIS

1

372117A4

PANEL

Headliner; If Used

1шт.

1

87686011

Panel Headliner; If Used

1шт.

2

378353A1

WEATHERSTRIP,44.5mm W x 1070mm L x 11.1mm Thk

Side Screen; If Used

2шт.

2

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen; If Used

2шт.

3

414010A1

PROTECTION STRIP

Front Corner

2шт.

4

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

5

394745A2

SEAL,800mm L

ROPS Wing

2шт.

6

394748A1

INSULATION

Relief Cut

2шт.

7

395037A1

PLATE

If Used

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used

2шт.

9

832-41410

NUT,M10 x 1.5, Cl 10

If Used

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

4шт.

11

299274A2

COVER,35mm OD

35 mm dia; If Used

6шт.
