Запчасти Case 410 (09-12) - CONTROLS - LOADER AND GROUND DRIVE (FLAT LINKAGE LINKS, IF USED, SEE FIGURE 09-12A REF 5, 6) (09) - CHASSIS

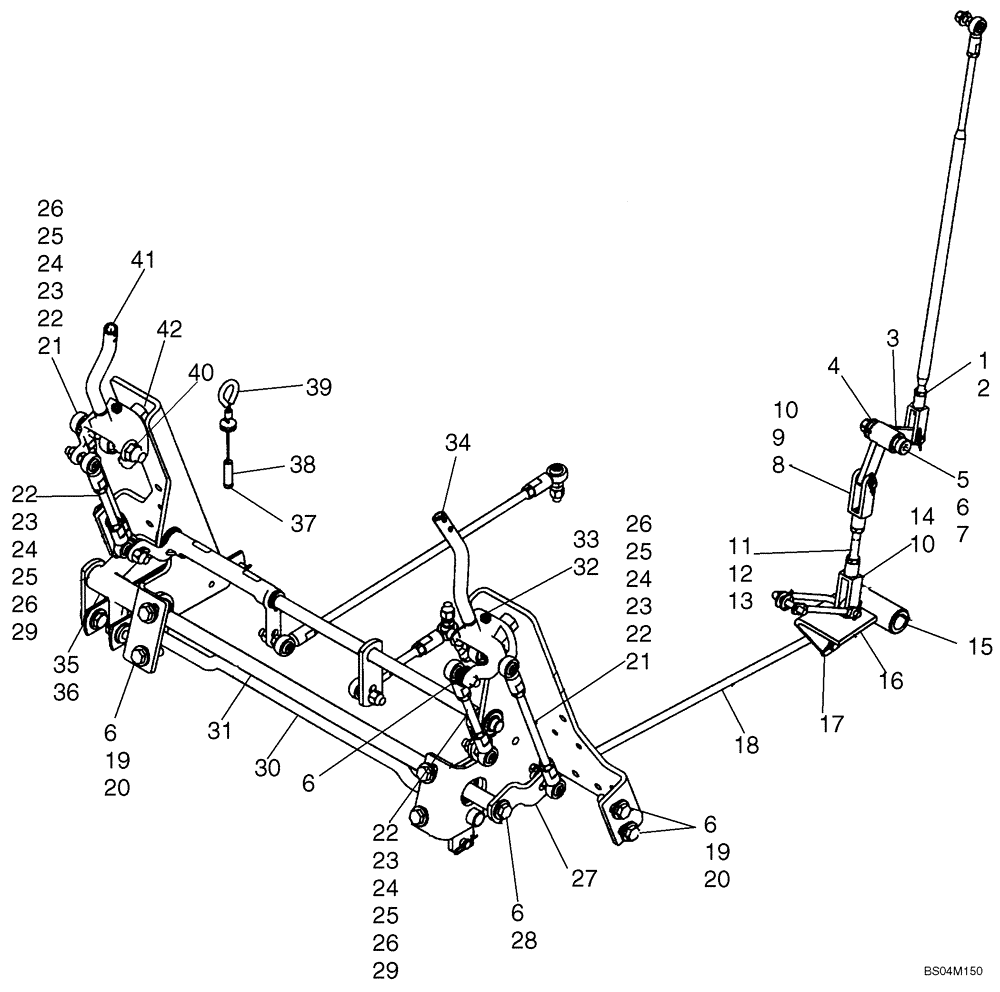

Схема запчастей Case 410 - (09-12) - CONTROLS - LOADER AND GROUND DRIVE (FLAT LINKAGE LINKS, IF USED, SEE FIGURE 09-12A REF 5, 6) (09) - CHASSIS
24
23
29
21
22
18
26
4
30
38
35
17
22
25
7
15
23
36
26
19
8
3
11
28
6
23
5
23
39
26
25
10
6
16
32
20
34
29
12
22
25
2
40
26
13
24
10
19
27
6
22
23
9
31
21
14
1
24
33
37
6
20
41
24
6
42

Артикул

Название

Примечание

Количество

Assy With Flat Linkage Links, See Figure 09-12A Ref 5, 6

1шт.

1

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

2

213-725

ADJUSTABLE CLEVIS,5/16"-24 x 2 1/2", LH

1шт.

3

367689A1

PIVOT ASSY.

1шт.

4

368972A1

NYLON BEARING,12.88 mm ID x 22.2 mm OD x 19.1 mm

2шт.

5

121-438

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1.75"

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

7

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

1шт.

8

410055A1

CLEVIS

3/8

1шт.

9

427-5112

CLEVIS PIN,5/16" x 1 1/8"

1шт.

10

417860A1

COTTER PIN

2шт.

11

410056A2

ROD

Brake Contact

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

13

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

14

410054A1

CLEVIS

3/8

1шт.

15

367669A1

BUSHING,19.62mm ID x 22.58mm OD x 25.4mm L

2шт.

16

87019716

CRANK

1шт.

17

417861A1

RING

2шт.

18

87461327

ROD

1шт.

19

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

8шт.

20

411345A1

LOCK NUT

M10

8шт.

21

180682A1

STEM

2шт.

22

80855

NUT,Hex, 3/8" - 24

12шт.

23

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

24

86509310

NUT,3/8" - 24, Gr 5

6шт.

25

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

26

87030547

NUT,3/8" - 24, LH Thd, Gr 5

6шт.

27

377410A2

LEVER

1шт.

28

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

29

249367A2

ROD

2шт.

30

87019720

SHAFT

1шт.

31

385784A2

ROD ASSY.

1шт.

32

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

5шт.

33

405103A1

SET SCREW,Hex Skt, M6 x 25mm, Oval Pt

M6 x 1 x 25

4шт.

34

87458673

LEVER

Left Hand; Replaces 87427103

1шт.

35

385783A3

CRANK

1шт.

36

409845A1

BEARING, NEEDLE,Needle, 19.05mm ID x 25.4mm OD x 15.9mm W

3/4

2шт.

37

87825

NUT,#10-32

1шт.

38

87432135

CABLE

Override; If Used; 124 mm Overall Length

1шт.

38

87462741

CABLE,124mm L

Override; Replaces 87432135 ; If Used; 127 mm Overall Length

1шт.

39

87036285

GROMMET,0.125" ID x 0.750" OD x 0.312" Thk

1шт.

40

87033645

FLANGE NUT,Flg, 1/2"-20

2шт.

41

87458670

LEVER

Right Hand; Replaces 87427106

1шт.

42

443241A1

BALL JOINT,1/2" - 20 x 2-1/8" L

2шт.

Выбрано товаров: 44
