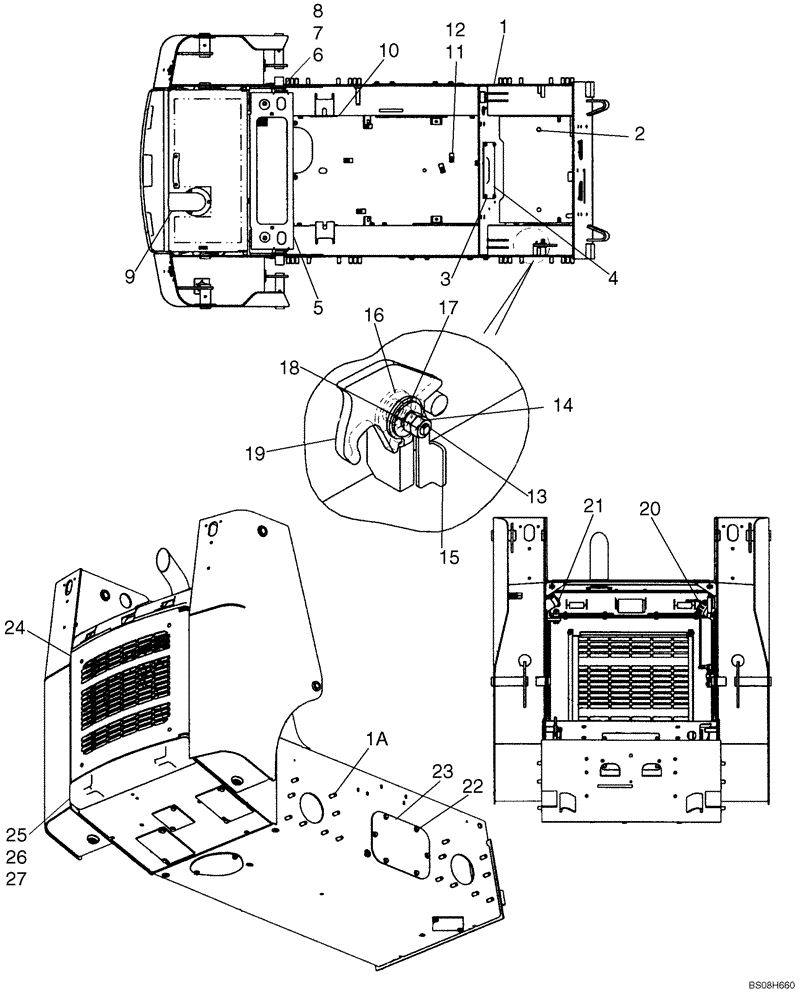

Запчасти Case 410 (09-10) - CHASSIS (09) - CHASSIS

87452372

SERVICE KIT

Chassis Kit; Units With Eaton Drive Motors; Order From Wholegoods; Incl. Chassis Frame 87459792, Fuel/Hydraulic Fill Caps, Fuel Sender/Gasket; Ref 1, 10, 20, 21 on Figure 09-10; Ref 1, 9, 11 on Figure 09-11; Ref 4 - 6 on Figure 04-06

1шт.

87478074

SERVICE KIT

Chassis Kit; Units With Rexroth Drive Motors; Order From Wholegoods; Incl. Chassis Frame 87458450, Fuel/Hydraulic Fill Caps, Fuel Sender/Gasket

1шт.

1

87458450

FRAME

Chassis Frame; Used In Production; Order From Wholegoods

1шт.

1

87459792

Chassis Frame; Order From Wholegoods

1шт.

1a

277450A1

STUD,M16 x 2 x 40mm, Cl 10.9

M16x40; Studs For Axle Mounting

32шт.

2

87454385

PLATE ASSY.

Floor Plate

1шт.

3

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

4

87430679

PLATE

1шт.

5

87458638

PANEL

Heat Shield Extension; Perforated Top; If Used

1шт.

5

87362234

PANEL

Heat Shield Extension; Not Illustrated; Non-Perforated Top; Some European Models, If Used

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

NSS

NOT SOLD SEPARAT

Hood, Engine; See Figure 09-16

1шт.

10

86991034

PLUG

Axle Access

4шт.

11

NSS

NOT SOLD SEPARAT

Screw

1шт.

12

NSS

NOT SOLD SEPARAT

Spacer

1шт.

13

294943A1

STUD

1шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

294911A2

HOOK

Plate

1шт.

17

294967A1

WASHER

1шт.

18

278332A1

SPRING WASHER

Spring

1шт.

19

390516A3

LATCH

Plate; ROPS Latch

1шт.

20

257448A1

CAP

Oil Filler; Incl. 292259A1

1шт.

292259A1

SEAL

Filler Cap

1шт.

21

H436887

CAP

Fuel; Non-Locking

1шт.

21

108925A1

FILLER CAP

Fuel; Locking; If Used

1шт.

22

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

23

87411208

COVER PLATE

2шт.

24

REF

INSTRUCTION

See Figure 09-17

1шт.

25

86536985

NUT,M20 x 2.5, Cl 10

2шт.

26

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

27

87445534

BOLT

M20 x 70

2шт.

27

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

Replaces 87445534

2шт.
