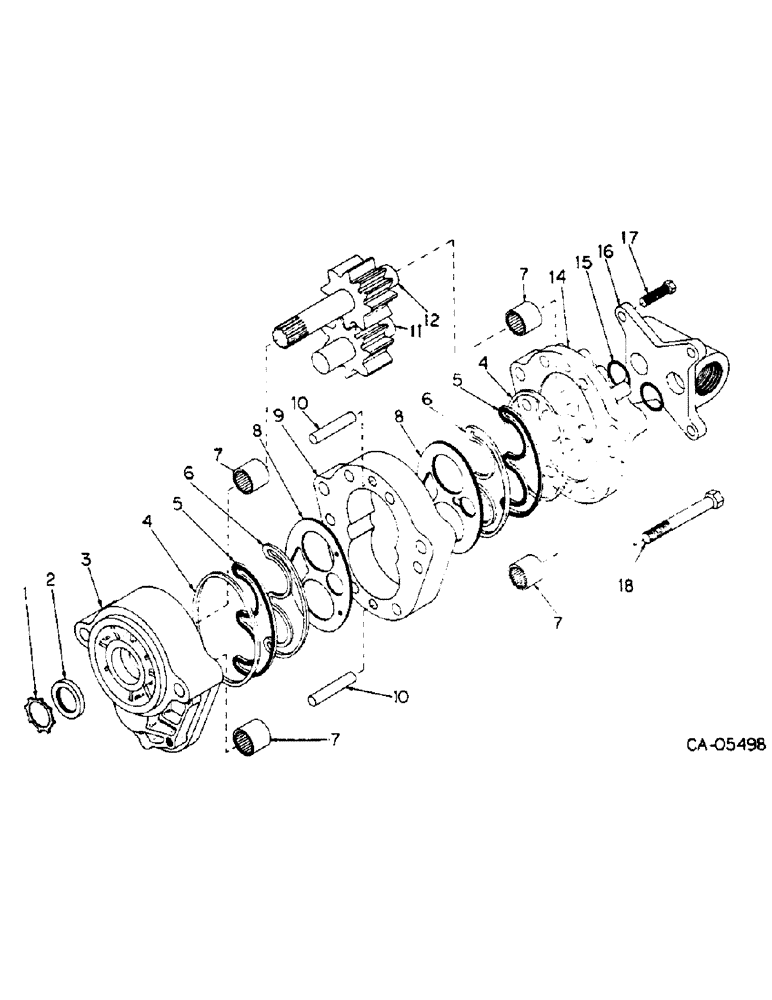

Запчасти Case 4155 (10-12) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

74718C91

PUMP

ASSY, hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

RING

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

2

72661C1

SEAL, oil

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, Order pump assy

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING, Order pump assy

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE, Order pump assy

1шт.

10

NSS

NOT SOLD SEPARAT

PIN, Order pump assy

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR, idler, Order pump assy

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR, drive, Order pump assy

1шт.

14

NSS

NOT SOLD SEPARAT

COVER, Order pump assy

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Pump Service Kit P/N 72676C91

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD, Order pump assy

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW, Order pump assy

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW, Order pump assy

1шт.

72676C91

KIT, pump service, Consists of ref nos 1, 2, 4, 5, 6, 8 & 15

1шт.
