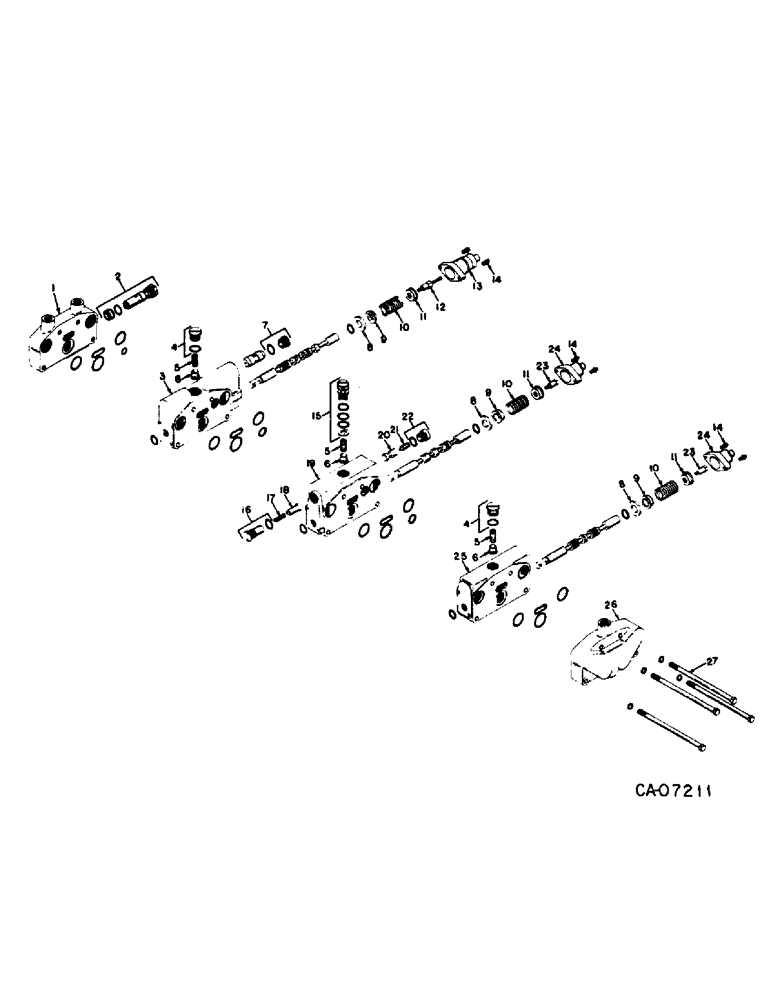

Запчасти Case 4155 (10-08) - HYDRAULICS, CONTROL VALVE (07) - HYDRAULICS

79431C91

VALVE ASSY, control

1шт.

1

79680C1

COVER, port, Plate

1шт.

2

79681C1

VALVE, relief

1шт.

3

79682C91

VALVE ASSY, lift, Consists of ref nos. 4 thru 14

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW

1шт.

13

NSS

NOT SOLD SEPARAT

CAP ASSY

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

19

79683C91

VALVE ASSY, tilt, Consists of ref nos. 5, 6, 8 thru 11, 14 thru 24

1шт.

20

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW

1шт.

24

NSS

NOT SOLD SEPARAT

CAP ASSY

1шт.

25

79684C91

VALVE ASSY, auxiliary, Consists of ref nos. 4, 5, 6, 8 thru 11, 14, 23 thru 25

1шт.

26

79685C1

COVER, end

1шт.

27

26563R1

BOLT,3/8" x 7 1/4", Gr 8

3/8 x 7-1/4 phc type 8

4шт.

79686C1

KIT, between section repair

1шт.

79687C1

SEAL KIT

relief valve seal

1шт.

79688C1

KIT, major seal

1шт.

79689C1

KIT

auxiliary valve seal

1шт.

79690C1

KIT

tilt valve seal

1шт.

79691C1

KIT, lift valve seal

1шт.
