Запчасти Case 4155 (08-01) - ELECTRICAL, ELECTRICAL (06) - ELECTRICAL

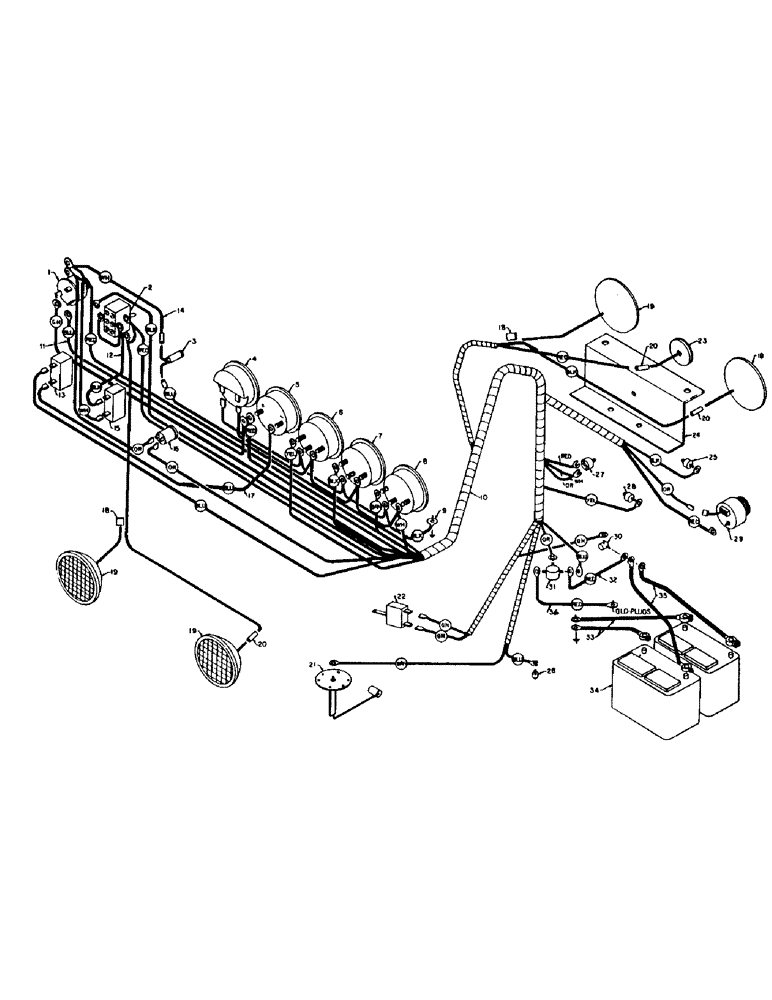

Схема запчастей Case 4155 - (08-01) - ELECTRICAL, ELECTRICAL (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

72244C1

IGNITION SWITCH

SWITCH, ignition

1шт.

72243C1

KEY

ignition

1шт.

2

647646C91

SWITCH, light

1шт.

3

79447C1

LIGHT ASSY, indicator

1шт.

4

72241C1

METER

hour

1шт.

5

77591C1

AMMETER

1шт.

6

77589C1

GAUGE

oil pressure

1шт.

7

77587C1

GAUGE, temperature

1шт.

8

77593C1

GAUGE

fuel

1шт.

9

77693C1

CABLE

gauge ground

1шт.

10

79448C1

HARNESS ASSY

1шт.

11

72144C1

CABLE, jumper, Serial Range: SW-amm

1шт.

12

79449C1

CABLE, jumper, Lt, Serial Range: SW-breaker

1шт.

13

79450C1

BREAKER, 30 amp

1шт.

14

79451C1

CABLE

1шт.

15

79452C1

BREAKER, 20 amp

1шт.

16

295417C91

SWITCH

preheat

1шт.

17

79454C1

CABLE, ammeter, Breaker

1шт.

18

72615C1

CONNECTOR

2шт.

19

72275C91

LIGHT ASSY, head

4шт.

373662R91

LAMP

type C-6 trade #4411 or

4шт.

131508C1

LAMP BASE

LAMP, replacement #H7610 GE-Trapezodial, Furnished as part of 72275C91

1шт.

20

72611C1

CONNECTOR

3шт.

21

77596C1

SENDER UNIT

SENDER,fuel level

1шт.

72135C1

GASKET

fuel sender

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

5шт.

77695C1

WASHER

5шт.

22

79455C1

SWITCH, brake set

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p hds mach

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

23

72276C91

LIGHT ASSY, tail

1шт.

20627R1

BULB,C2F, #194, 14V

LAMP, type C-2F trade #194, Furnished as part of 72276C91

1шт.

24

72208C1

ANGLE, light kit, Bracket

1шт.

25

77588C1

KIT

GAUGE, temp. sender

1шт.

26

72128C1

SWITCH

hyd pressure sender

1шт.

27

72246C1

SWITCH

oil pressure shut-off

1шт.

28

77590C1

SENDER UNIT

SWITCH, oil pressure

1шт.

29

72268C91

ALTERNATOR

1шт.

72229C1

REGULATOR, voltage

1шт.

72233C1

PULLEY, alternator

1шт.

31

72589C1

RELAY

SWITCH, pre-heat solenoid

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

32

79456C1

CABLE, pre-heat

2шт.

33

72136C1

CABLE

battery, Neg.

2шт.

34

IHMF24PF

DRY BATTERY

2шт.

35

72247C1

CABLE, battery, Pos.

2шт.

36

79457C1

CABLE, solenoid, Glow plug

1шт.

74702C91

LIGHTING ATTACHMENT, Consists of ref. 18, 19, 20, 23, & 24

1шт.

Выбрано товаров: 51
