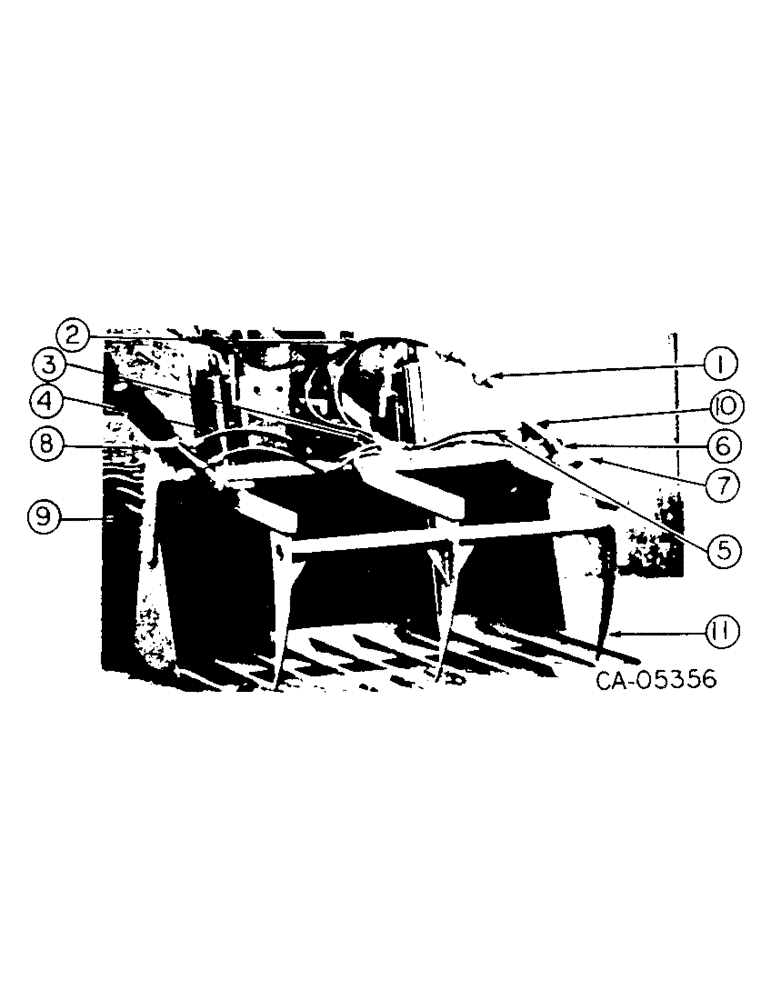

Запчасти Case 4155 (17-04) - MOUNTED EQUIPMENT, GRAPPLE FORK (05) - SUPERSTRUCTURE

1

72305C1

COUPLING, male

2шт.

2

72186C1

HOSE ASSY, quick, Serial Range: coupler-tee

2шт.

3

72306C1

TEE

2шт.

4

405359R1

HOSE, tee to R.H cylinder

2шт.

5

470794R91

HOSE ASSY, tee to L.H. cylinder

2шт.

72375C1

CLAMP, hose

1шт.

381654C1

SCREW, 1/4-20 x 1-1/4 cad c/r s/d tap

1шт.

6

72183C91

CYLINDER ASSY, hydraulic

2шт.

72394C91

PACKAGE

o-ring & seal service

2шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Class 6

2шт.

72307C1

SEAL

piston

2шт.

481767R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1-1/2 x 1-11/16 class 6

2шт.

343920R1

RING

O-RING, 1-5/8 x 1-7/8 class 6

2шт.

72191C1

PISTON

cylinder

2шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5

2шт.

72192C1

BODY, cylinder, Tube

2шт.

72193C1

ROD, cylinder

2шт.

562025R1

CIRCLIP

RING, 2.630 int ret

2шт.

72310C1

WIPER SEAL

WIPER, rod

2шт.

72311C1

SEAL

rod

2шт.

72927C91

KIT

packing head

2шт.

25020R1

O-RING,Rect, 1.75" ID x 2" OD, Cl 5

WASHER, 1.734 x 2.002 x .134 backup

2шт.

16982R91

FITTING

1/4 lub

2шт.

7

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

3/4 x 5-1/2 phc type 8

2шт.

8

25698R1

BOLT,Hex, 3/4" - 10 x 6", Gr 8

3/4 x 6 phc type 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

4шт.

9

72189C1

PIVOT, RH

1шт.

10

72190C1

PIVOT, LH

1шт.

17984R1

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

11

72185C1

FORK, grapple

1шт.
