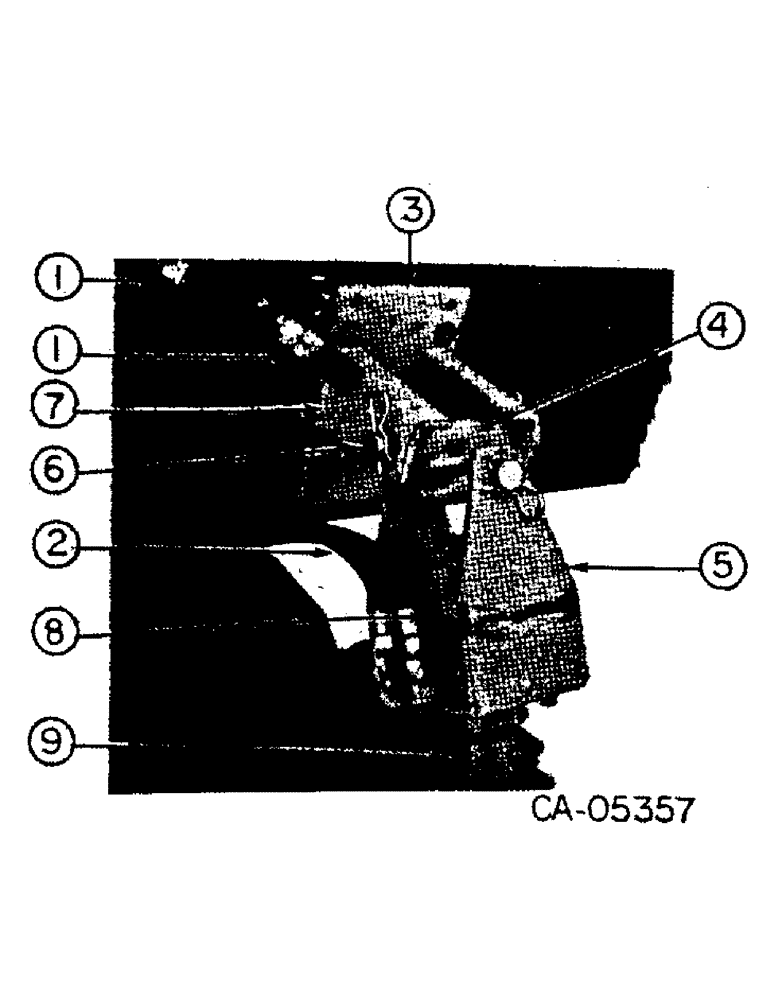

Запчасти Case 4155 (17-03) - MOUNTED EQUIPMENT, POST HOLE AUGER ATTACHMENT (05) - SUPERSTRUCTURE

1

72305C1

COUPLER, male

2шт.

2

72105C1

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R1

HOSE ASSY

2шт.

3

72111C1

BRACKET, mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

72165C1

PIVOT

1шт.

5

72231C1

BRACKET, motor mount

1шт.

6

72232C1

PIN, pivot

1шт.

7

520177R1

PIN

quick attachable

4шт.

8

72319C1

MOTOR ASSY

1шт.

179891

SHAFT

1/2 x 2-1/2 pln type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

72320C1

ADAPTER

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 pln type 5

1шт.

18466R1

BOLT, 1/2 x 1-1/2 sq/hd mach type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

NSS

NOT SOLD SEPARAT

AUGER BIT ATTACHMENT, Service parts are as follows

1шт.

72326C1

BLADE, 9 in. replacement cutting

1шт.

72327C1

BLADE, 12 in. replacement cutting

1шт.

72328C1

BLADE, 18 in. replacement cutting

1шт.

72330C1

POINT, replacement

1шт.
