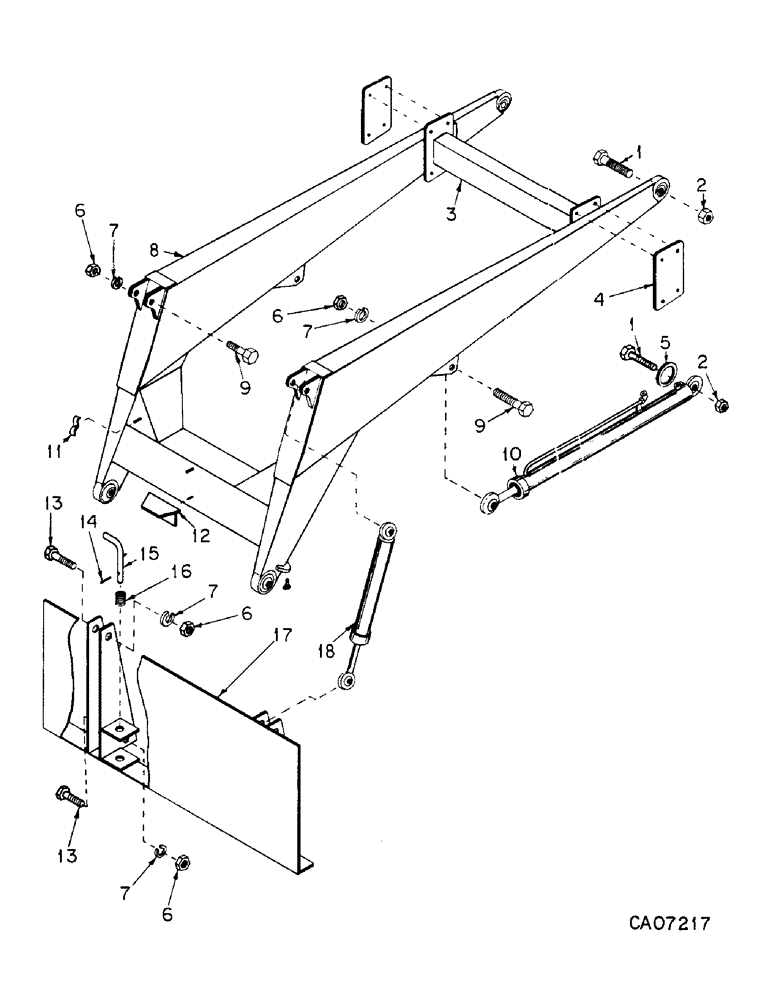

Запчасти Case 4155 (17-01) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE

1

72120C1

BOLT, pivot, Pin

4шт.

192-37

LOCK WASHER,1 3/8"

WASHER, 1-3/8" lock

4шт.

2

427371

NUT, 1-3/8-NF type 5

4шт.

3

72119C1

ARM, crossbar

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

72118C1

SUPPORT, crossbar retainer, Plate

2шт.

5

72126C1

RING, lift cyl, Spacer

2шт.

6

25531R1

NUT,1"-8, G8

1 phc type 8

8шт.

7

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

8

79377C1

ARM ASSY, lift

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

25741R1

BOLT,Hex, 1" - 8 x 4", Gr 8

1 x 4 phc type 8

4шт.

10

72175C91

CYLINDER ASSY, lift, Refer to lift cylinder for service parts

1шт.

11

79378C1

CLAMP, tubing

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

12

79379C1

BRACKET, tubing protector

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

26720R1

BOLT,Hex, 1" - 8 x 5", Gr 8

1 x 5 phc type 8

4шт.

14

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1/4" x 1-1/4", Slotted

2шт.

15

72121C1

ROD, bucket, Pin

2шт.

16

72122C1

SPRING, bucket pin

2шт.

17

72123C1

SUPPORT, easy tach, Plate

1шт.

18

72168C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder for service parts

1шт.

16982R91

FITTING

1/4 lub

12шт.

72052C91

PACKAGE, cyl lockout bracket

1шт.
