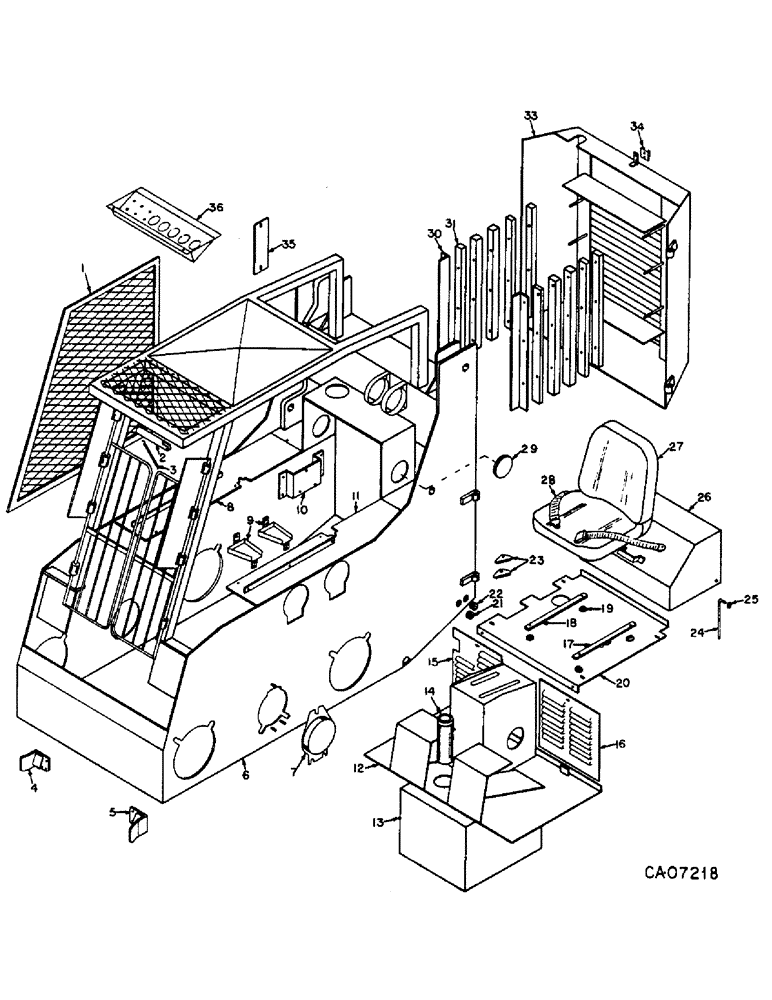

Запчасти Case 4155 (13-01) - SUPERSTRUCTURE, SUPERSTRUCTURE (05) - SUPERSTRUCTURE

1

79354C1

SCREEN, side

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

2

79355C1

SUPPORT, gate, Latch

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

107816

NUT, 3/8 cad stamped

1шт.

3

77804C1

SPRING

1шт.

4

73845C1

SUPPORT, boom, RH, Guide

1шт.

5

73846C1

SUPPORT, boom, LH, Guide

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

6

NSS

NOT SOLD SEPARAT

FRAME

1шт.

7

79356C1

COVER, brake

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

8

79357C1

BAR, seat mount, RH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

3шт.

9

73856C1

PAN, drain

2шт.

120394

WASHER,3/8", SAE

WASHER, .40667 x C8127 x .V51, M

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

10

79358C1

SUPPORT, valve mount

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

11

79359C1

BAR, seat mount, LH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

12

79360C1

PLATE, floor w/console

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

13

79361C1

TANK, fuel

1шт.

14

79362C1

NECK, fuel fill

1шт.

72187C1

CAP

fuel

1шт.

15

79363C1

PLATE, kick, RH

1шт.

16

79364C1

PLATE, kick, LH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

17

79365C1

RAIL, locking

1шт.

18

79366C1

RAIL, non-locking

1шт.

19

79367C1

SPACER

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

8шт.

20

79368C1

PLATE, seat

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

21

444699

PLUG,Hex Soc, 3/8"-18

3/8-18 pln hex/skt auto pipe

1шт.

22

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2-14 pln hex/skt auto pipe

1шт.

23

79495C1

SUPPORT, tailgate, Stop

2шт.

24

79370C1

BAR, hood retainer

1шт.

25

77536C1

NUT, cap

1шт.

26

79371C1

HOOD

1шт.

27

77991C91

SEAT ASSY.

SEAT ASSY

1шт.

77994C1

FRAME, seat

1шт.

77993C1

CUSHION

bottom

1шт.

77992C1

CUSHION

back

1шт.

28

72179C1

BELT

SAFETY BELT

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

29

77810C1

COVER

PLUG, console

2шт.

30

79372C1

ANGLE, cooler

2шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-NF cad p/t lock type 5

6шт.

31

78153C1

STRIP, spacer

10шт.

33

79374C1

TAILGATE

1шт.

34

398976R1

BRACKET

SOCKET, SMV

1шт.

35

79375C1

COVER, PTO

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

36

79376C1

PANEL, instrument

1шт.

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW, 1/4-14 x 1 h/hd tap

2шт.
