Запчасти Case 4155 (12-16) - POWER, WATER PUMP AND THERMOSTAT HOUSING (04) - Drive Train

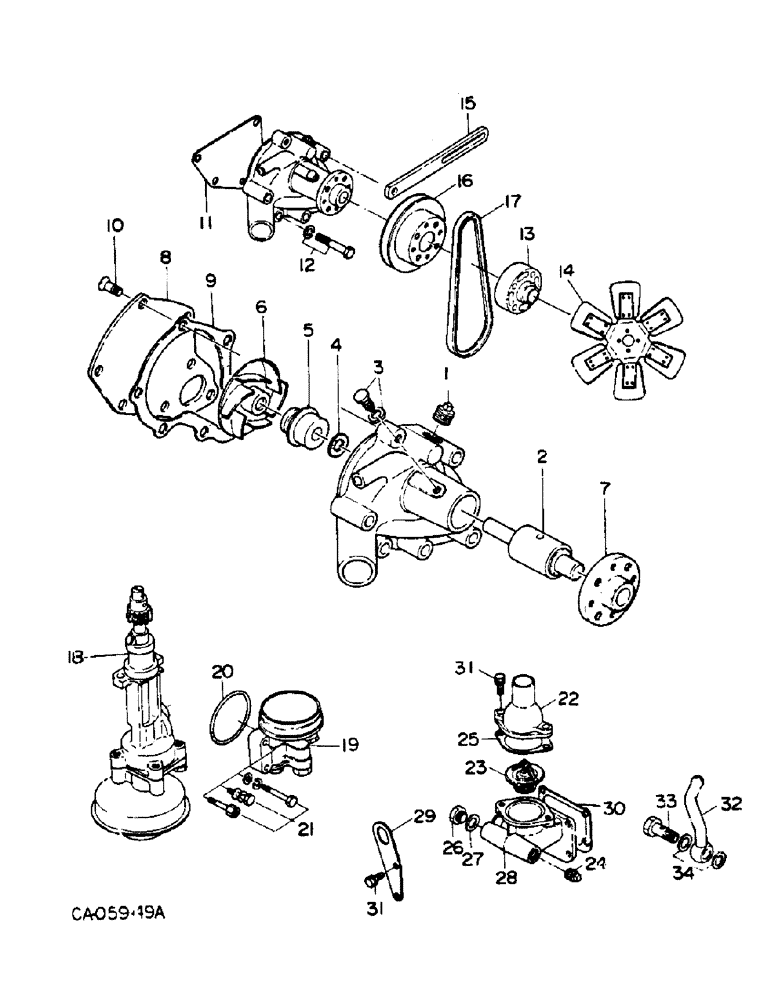

Схема запчастей Case 4155 - (12-16) - POWER, WATER PUMP AND THERMOSTAT HOUSING (04) - Drive Train

Артикул

Название

Примечание

Количество

74604C91

PUMP

ASSY, water

1шт.

1

74605C1

PLUG, water pump

1шт.

2

74606C1

BEARING ASSY, water pump

1шт.

3

74607C1

SCREW, set

1шт.

74558C1

WASHER, lock

1шт.

4

74608C1

WASHER, thrust

1шт.

5

74609C1

SEAL ASSY, water pump

1шт.

6

74610C1

IMPELLER, water pump

1шт.

7

74611C1

BRACKET

fan blade mounting

1шт.

8

74612C1

COVER, water pump

1шт.

9

74613C1

GASKET, water pump cover

1шт.

10

74614C1

SCREW

water pump cover

1шт.

11

74615C1

GASKET

water pump

1шт.

12

74616C1

BOLT, water pump mounting

2шт.

12

74617C1

BOLT, water pump mounting

4шт.

13

74618C1

SPACER, fan

1шт.

14

74619C1

FAN

ASSY, cooling

1шт.

15

74620C1

ADJUSTER, fan belt

1шт.

16

74621C1

PULLEY

fan

1шт.

17

74622C1

BELT

Fan

1шт.

19

74623C91

BASE, oil filter

1шт.

20

74624C1

GASKET, oil filter base

1шт.

21

74625C1

BOLT, oil filter mounting

2шт.

21

74626C1

BOLT, oil filter mounting

2шт.

74558C1

WASHER, lock

4шт.

74559C1

WASHER, flat

4шт.

22

74627C1

OUTLET, water housing

1шт.

23

74628C1

THERMOSTAT

1шт.

24

74605C1

PLUG, thermostat housing

1шт.

25

74779C1

GASKET

outlet

1шт.

26

74629C1

PLUG, thermostat housing

1шт.

27

74630C1

WASHER, sealing

1шт.

28

74631C1

HOUSING, thermostat

1шт.

29

74632C1

MOUNT, engine

1шт.

30

74633C1

GASKET, thermostat housing

1шт.

31

74510C1

BOLT, thermostat housing mtg.

2шт.

31

74635C1

BOLT, thermostat housing mtg.

2шт.

32

74636C1

TUBE ASSY, cooler hose

1шт.

33

74637C1

SCREW, cooler tube union

1шт.

34

73126C1

WASHER, sealing

2шт.

74640C91

PACKAGE

water pump repair, Consists of

1шт.

74606C1

BEARING

1шт.

74608C1

WASHER

1шт.

74609C1

SEAL

1шт.

74610C1

IMPELLER

1шт.

74613C1

GASKET

1шт.

74615C1

GASKET

1шт.

Выбрано товаров: 47
