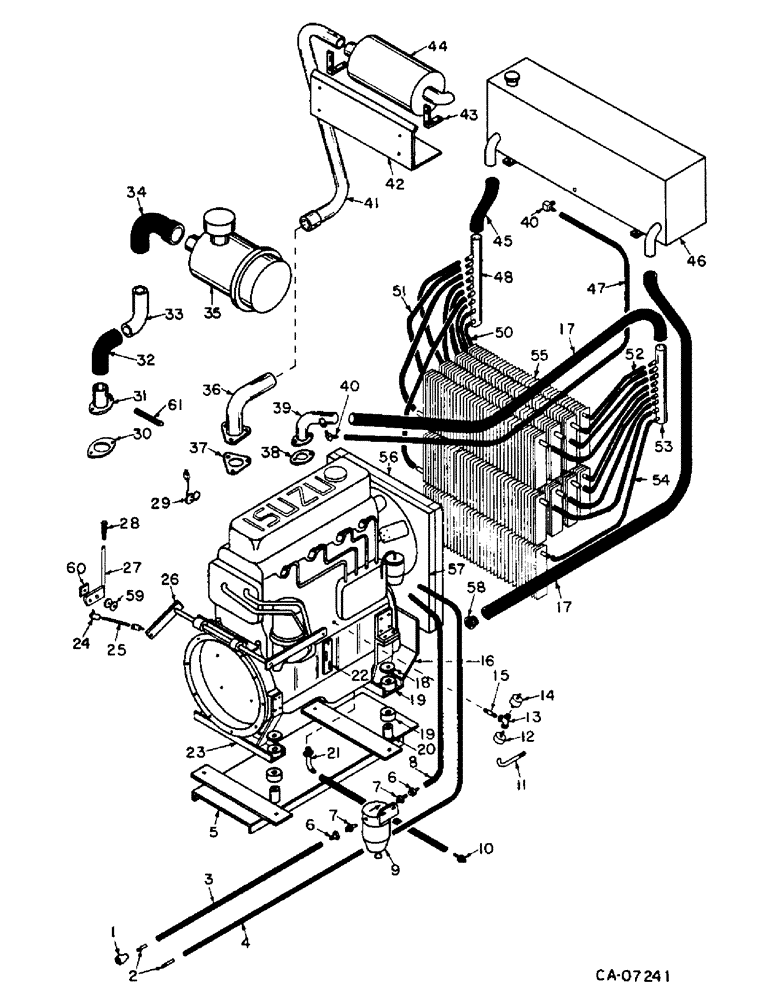

Запчасти Case 4155 (12-01) - POWER, ENGINE & MOUNTING (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
119292
COUPLING, 3/8 to 1/8 pln pipe
1шт.
2
221-106
PIPE,Nipple, 1/8" NPT x 1 1/2"
NIPPLE, 1/8 x 1-1/2 pln long pipe
2шт.
3
NSS
NOT SOLD SEPARAT
HOSE, tank to separator, Use 48 in. from 50 ft. roll marked 180730C1
1шт.
27861R1
HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner
CLAMP, no. 10 shoe type F hose
2шт.
4
NSS
NOT SOLD SEPARAT
HOSE, fuel return, Use 72 in. from 50 ft. roll marked 180730C1
1шт.
27861R1
HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner
CLAMP, no. 10 shoe type F hose
2шт.
5
79387C1
SUPPORT, motor, Lower
1шт.
6
79396C1
FITTING, barb
2шт.
7
9410201
HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring
CONNECTOR, 5/16 C-Z hyd fld short SW
2шт.
8
NSS
NOT SOLD SEPARAT
HOSE, separator to fuel pump, Use 11 in. from 50 ft. roll marked 180730C1
1шт.
27861R1
HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner
CLAMP, no. 10 shoe type F hose
2шт.
9
79388C91
FILTER, water separator
1шт.
79389C1
HEAD, filter
1шт.
79390C1
O-RING
1шт.
79391C1
WASHER
1шт.
79392C1
ELEMENT
1шт.
79393C1
CLAMP
1шт.
79394C1
SCREW
1шт.
79395C1
PLUG
1шт.
10
74761C1
FITTING
1шт.
11
73855C1
BOLT,5/8" - 11 x 5 1/2"
J
2шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
2шт.
12
77590C1
SENDER UNIT
GAUGE, oil pressure sender
1шт.
13
105416
TEE,1/8" NPT, Fem
1/8 pln pipe
1шт.
14
72246C1
SWITCH
oil pressure shut-off
1шт.
15
78163C1
NIPPLE, 1/8 x 1-1/2 special
1шт.
16
79397C1
SUPPORT, rear motor
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2 type 5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120387
WASHER,3/8" x 3/4" x .060"
.375 x .750 x .054
4шт.
17
79349C1
HOSE, radiator
2шт.
27724R1
HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner
CLAMP, no. 24 shoe type F hose
4шт.
18
72157C1
WASHER, retainer
4шт.
19
72158C1
MOUNT, motor
8шт.
20
72159C1
BUSHING
4шт.
180192
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
BOLT, 1/2 x 3-1/2 type 5
4шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2 cad p/t lock type 5
4шт.
21
79399C1
ELBOW
1шт.
79400C1
PLUG, drain
1шт.
22
79401C1
BAR, throttle shut off
1шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
180044
SPRING
1/4 x 2 type 5
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
23
79402C1
SUPPORT, front motor
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 type 5
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
24
72266C1
END
rod
2шт.
25
79403C1
ROD, throttle
1шт.
26
79404C1
LINKAGE, throttle cross-over
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
27
79405C1
LEVER, throttle
1шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
28
72125C1
GRIP, throttle
1шт.
29
79239C91
UNIT HEATER
HEATER, block
1шт.
30
73864C1
GASKET, air inlet
1шт.
31
79406C1
ADAPTER, air inlet
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
30167R1
NUT,M8, Cl 10
M8 phc class 10
2шт.
32
75037C1
HOSE
ELBOW, Air Inlet
1шт.
681209C1
HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner
CLAMP, no. 32 shoe type F hose
1шт.
33
79407C1
TUBE, air inlet 2" Diameter, 6, 6" Length
1шт.
34
73862C1
HOSE, adapter
1шт.
681209C1
HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner
CLAMP, no. 32 shoe type F hose
1шт.
995222R1
CLAMP
no. 36 type F hose
1шт.
35
72252C91
CLEANER ASSY, air
1шт.
72253C1
ELEMENT
air cleaner
1шт.
72254C1
WASHER, gasket
1шт.
72255C1
SCREW, thumb
1шт.
72256C1
CLAMP ASSY
1шт.
72257C1
BAFFLE ASSY
1шт.
72258C1
CUP ASSY
1шт.
72259C1
CAP, air stack
1шт.
72260C1
FILTER, precleaner, Optional
1шт.
36
79408C1
PIPE, exhaust
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
30284R1
NUT,M10, Cl 10
M10 class 10
3шт.
37
73866C1
GASKET, exhaust
1шт.
38
74779C1
GASKET
thermostat
1шт.
39
79344C1
HOUSING, thermostat
1шт.
40
72221C1
ELBOW
2шт.
41
79410C1
PIPE, exhaust
1шт.
72249C1
CLAMP
muffler
1шт.
42
76476C1
BAFFLE, heat
1шт.
43
76478C1
BRACKET, muffler
2шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
12шт.
44
76477C1
MUFFLER
1шт.
72249C1
CLAMP
muffler
2шт.
45
79411C1
HOSE, radiator
1шт.
27724R1
HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner
CLAMP, no. 24 shoe type F hose
2шт.
46
79412C1
TANK, water
1шт.
72265C1
CAP
radiator
1шт.
12696R1
BOLT, 3/8 x 1-1/4 phc crg type 1
4шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
47
NSS
NOT SOLD SEPARAT
HOSE, vent, Use 40 in. from 50 ft. roll marked 417199C1
1шт.
279025R91
HOSE CLAMP,#06, .44/.78 Type F Worm
2шт.
48
79413C1
MANIFOLD, outlet
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
50
NSS
NOT SOLD SEPARAT
HOSE, cooler to manifold, Use 18 in. from 50 ft. roll marked 73200C1
1шт.
51
NSS
NOT SOLD SEPARAT
HOSE, cooler to manifold, Use 22 in. from 50 ft. roll marked 73200C1
1шт.
52
NSS
NOT SOLD SEPARAT
HOSE, cooler to manifold, Use 28 in. from 50 ft. roll marked 73200C1
1шт.
53
79414C1
MANIFOLD, inlet
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
54
NSS
NOT SOLD SEPARAT
HOSE, cooler to manifold, Use 24 in. from 50 ft. roll marked 73200C1
1шт.
27861R1
HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner
CLAMP, no. 10 shoe type F hose
36шт.
55
78158C1
COOLER
oil
9шт.
56
78164C1
STRIP, foam 18 in.
2шт.
56
78165C1
STRIP, foam 24 in.
2шт.
57
79415C1
SHROUD, fan
1шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 crg type 1
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120387
WASHER,3/8" x 3/4" x .060"
.375 x .750 x .054
2шт.
58
73871C1
ADAPTER, hose
1шт.
59
78242C1
BELLEVILLE WASHER
spring
2шт.
60
72007C1
PAD, friction
1шт.
61
NSS
NOT SOLD SEPARAT
HOSE, breather, Use 6 in. from 50 ft. roll marked 526602R1
1шт.
27861R1
HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner
CLAMP, no. 10 shoe type F hose
2шт.
Выбрано товаров: 125
