Запчасти Case 4150 (04-02) - BRAKES, PARK BRAKE, LOADER (5.1) - BRAKES

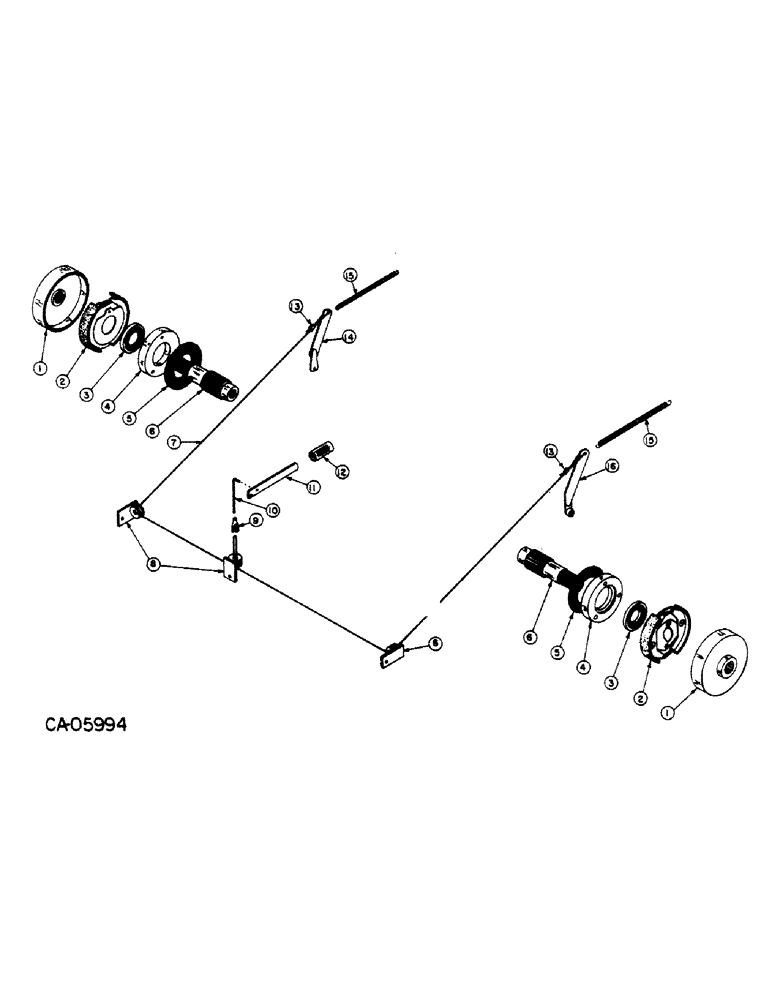

Схема запчастей Case 4150 - (04-02) - BRAKES, PARK BRAKE, LOADER (5.1) - BRAKES

Артикул

Название

Примечание

Количество

1

77840C1

DRUM

2шт.

2

77841C91

STATOR ASSY

2шт.

74742C1

SPRING

4шт.

74743C1

WASHER, shoe

4шт.

74744C1

BLOCK, drive

4шт.

74745C1

SHOE

ASSY

4шт.

74746C1

ARM, activator

2шт.

74747C1

WASHER, cam

4шт.

77842C1

PLATE, mounting

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL, input, Refer to drive axle

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER, mounting, Refer to drive axle

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET, Refer to drive axle

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT, input, Refer to drive axle

1шт.

7

75142C1

CABLE

1шт.

8

75143C1

GUIDE, cable

3шт.

9

73785C1

CLEVIS, rod end

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16 phc p/t lock type 1

2шт.

10

75144C1

ROD, actuating

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

75145C1

BAR, lever

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

12

72210C1

GRIP

handle

1шт.

13

75723C1

CLAMP, 1/8 cable

2шт.

14

74739C1

LEVER, RH, Replaces 75146C1

1шт.

15

72211C1

SPRING

2шт.

16

74737C1

LEVER, LH, Replaces 75147C1

1шт.

Выбрано товаров: 29
