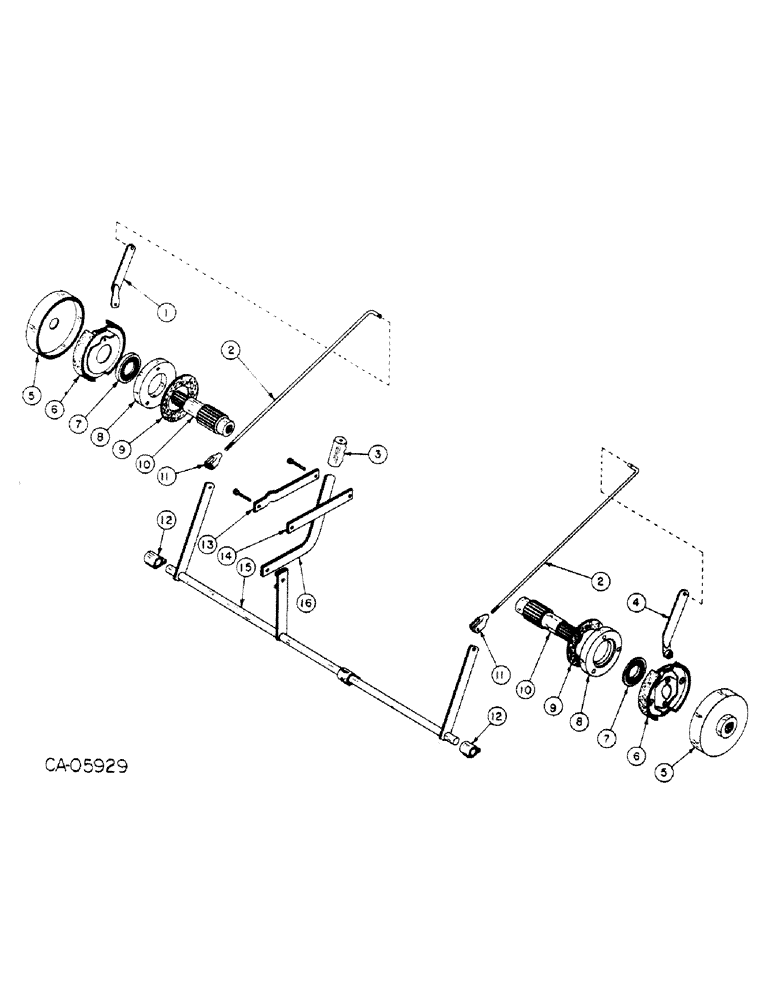

Запчасти Case 4150 (04-01) - BRAKES, PARK BRAKE ATTACHMENT, LOADER (5.1) - BRAKES

1

74737C1

LEVER, RH

1шт.

2

74738C1

ROD, connecting

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

120368

NUT,5/16"-24, G5

2шт.

3

72210C1

GRIP

1шт.

4

74739C1

LEVER, LH

1шт.

5

74740C1

DRUM

2шт.

6

74741C91

STATOR ASSY

2шт.

74742C1

SPRING

4шт.

74743C1

WASHER, shoe

4шт.

74744C1

BLOCK, drive

4шт.

74745C1

SHOE

ASSY

4шт.

74746C1

ARM, activator

2шт.

74747C1

WASHER, cam

4шт.

74748C1

PLATE, mounting

2шт.

7

73780C1

SEAL

2шт.

8

74749C1

FLANGE, mounting

2шт.

9

72071C1

GASKET

2шт.

10

74750C1

SHAFT, input

2шт.

11

73785C1

CLEVIS, rod end

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16 phc p/t lock type 1

2шт.

12

74751C1

PIVOT

2шт.

13

72357C1

SUPPORT, friction, bar

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

2шт.

74752C1

SPRING

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

74753C1

BAR, friction, mounted

1шт.

15

74754C1

LEVER, cross-over

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

74755C1

HANDLE

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
