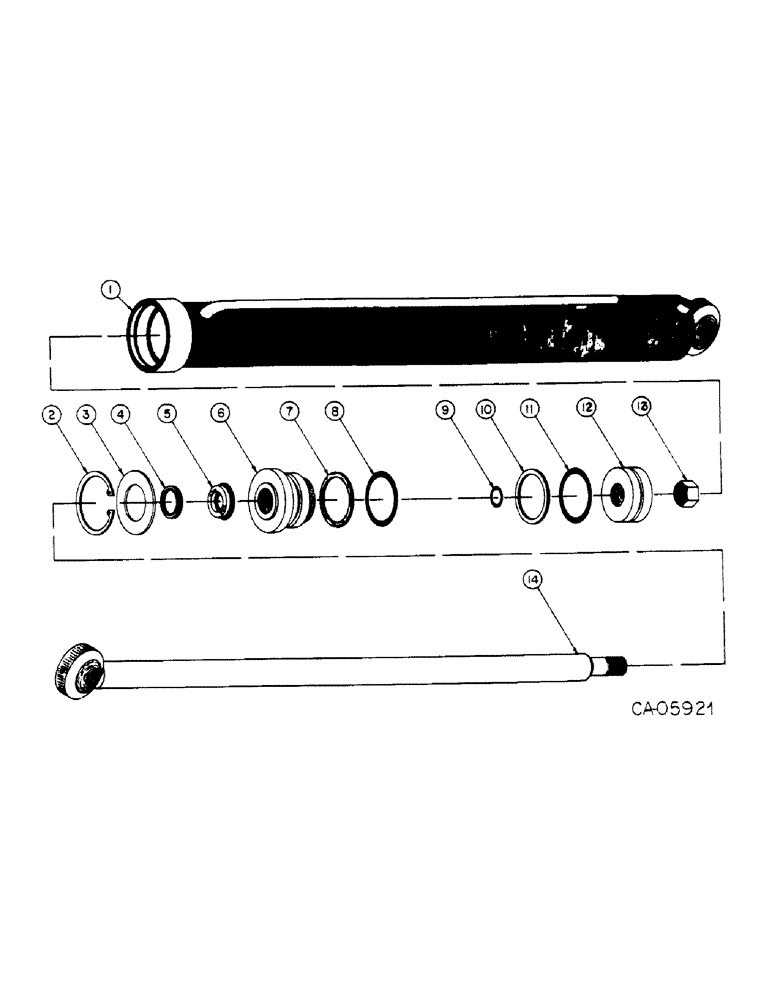

Запчасти Case 4150 (10-28) - HYDRAULICS, TILT CYLINDER (07) - HYDRAULICS

72168C91

CYLINDER

ASSY, tilt

2шт.

1

72171C1

TUBE, cylinder 24.097" Length

2шт.

2

629841R1

RING, SNAP

RING, retaining

2шт.

3

NSS

NOT SOLD SEPARAT

SUPPLIED AS PART OF REF. 6

1шт.

4

72315C1

WIPER

rod

2шт.

5

72316C1

SEAL, rod

2шт.

6

72930C91

KIT, packing head

2шт.

7

72317C1

RING, back-up

2шт.

8

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2.734 x 3.012 x .139

2шт.

9

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

.987 x 1.193 x .094

2шт.

10

72318C1

SEAL, piston

2шт.

11

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2.550 x 2.756 x .094

2шт.

12

72169C1

PISTON, cylinder

2шт.

13

19486R1

NUT, 1-14 znd hex. lock 1"-14, G5

2шт.

14

72170C1

ROD, cylinder

2шт.

72173C91

PACKAGE

o-ring and seal service

2шт.
