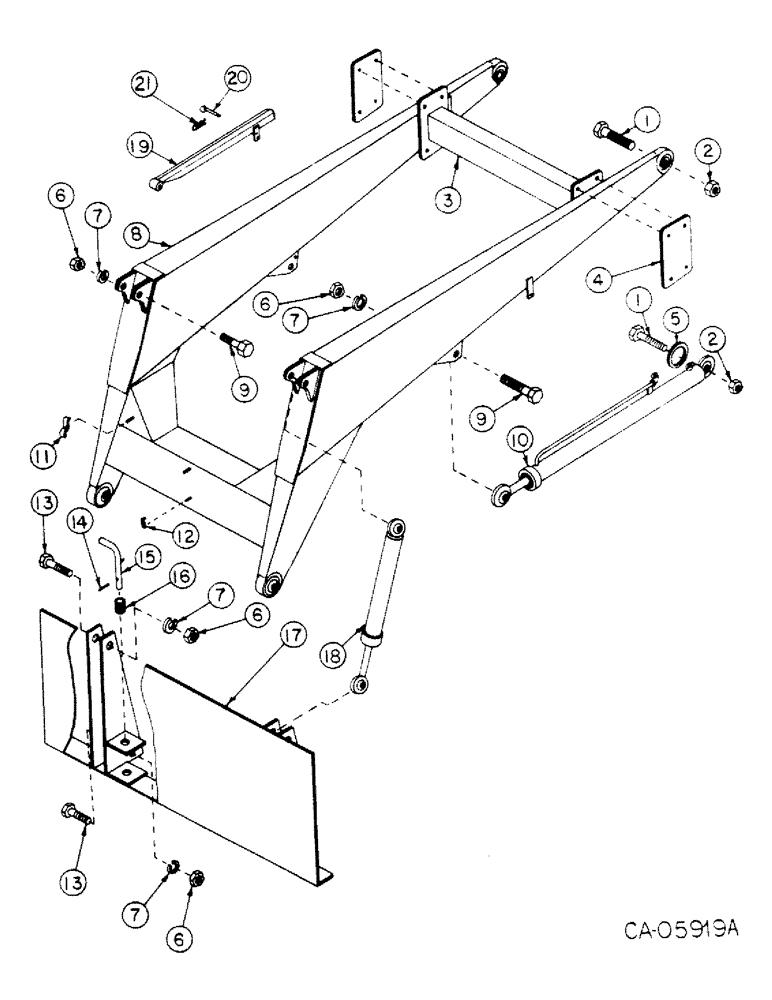

Запчасти Case 4150 (17-01) - MOUNTED EQUIPMENT, LOADER BOOM Mounted Equipment

1

72160C1

BOLT, pivot, pin

4шт.

192-37

LOCK WASHER,1 3/8"

WASHER, znd reg lock 1 3/8"

4шт.

2

427371

NUT, 1-3/4-12 znd hex

4шт.

3

72119C1

ARM, crossbar

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

72118C1

SUPPORT, crossbar retainer, plate

2шт.

5

72126C1

RING, lift cyl, spacer

2шт.

6

25531R1

NUT,1"-8, G8

1-8 phc hex type 8

8шт.

7

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

8

72124C1

BOOM ASSY

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

25741R1

BOLT,Hex, 1" - 8 x 4", Gr 8

SCREW, 1-8 x 4 phc hex-hd cap type 8

4шт.

10

NSS

NOT SOLD SEPARAT

CYLINDER ASSY, lift, Refer to lift cylinder assy, For list of components

1шт.

11

369758R1

CLAMP

tubing

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

12

120875

CLAMP, hose

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

13

26720R1

BOLT,Hex, 1" - 8 x 5", Gr 8

SCREW, 1-89 x 5 phc hex-hd cap type 8

2шт.

14

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

15

72121C1

ROD, bucket, pin

2шт.

16

72122C1

SPRING, bucket pin

2шт.

17

72123C1

SUPPORT, easy tach, plate

1шт.

18

NSS

NOT SOLD SEPARAT

CYLINDER ASSY, tilt, Refer to tilt cylinder assy, For list of components

1шт.

16982R91

FITTING

1/4-28 special taper drive thd

12шт.

19

72052C91

PACKAGE, cylinder lockout bracket, Serial Range: -141

1шт.

19

73367C91

PACKAGE, cylinder lockout bracket, Start Serial: 142

1шт.

72533C1

DECAL

PRODUCT GRAPHIC, cylinder lockout caution

1шт.

20

27874R1

HEADED PIN,3/8" x 3"

PIN, headed

1шт.

21

586591R1

COTTER PIN

PIN, 1/8 Q. A. cotter

1шт.
