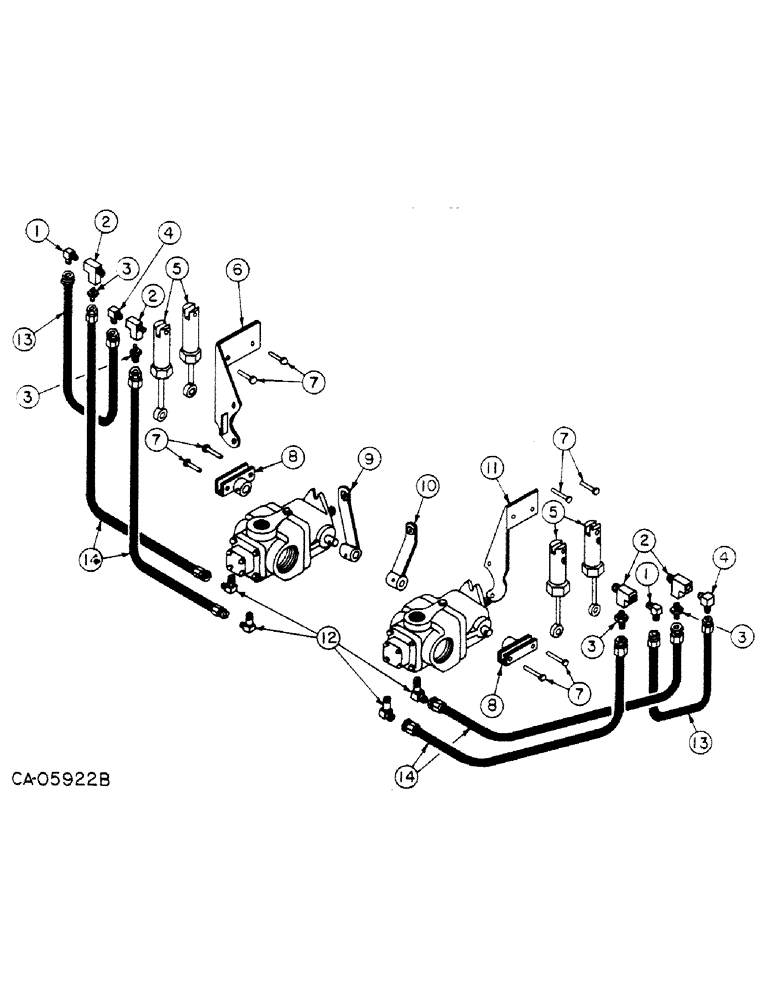

Запчасти Case 4150 (10-11) - HYD., HYDROSTATIC PUMP POWER ASSIST, LOADER, DIESEL, LOADER, GAS (07) - HYDRAULICS

1

72134C1

ELBOW, restricted, Diesel, Start Serial: 134

2шт.

2

76530C1

TEE, restricted, Diesel, Start Serial: 134

4шт.

2

72134C1

ELBOW, restricted, Diesel, Serial Range: 107-133

4шт.

3

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, 1/4-20 37 degree hyd flared tube, Diesel, Start Serial: 134

2шт.

4

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

7/16-20 37 degree hyd flared tube 90 degree, diesel, Start Serial: 134

2шт.

5

72127C91

CYLINDER ASSY, .250 bore x 2 in. stroke, Refer to power assist cyl. for service parts

4шт.

6

72129C1

BRACKET, cyl, RH

1шт.

7

26493R1

CLEVIS PIN,5/16" x 1 1/4"

PIN, 5/16 x 1.250 clevis

8шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

8шт.

8

73908C1

BRACKET, pivot

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

9

73909C1

LEVER, control, RH

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

10

73910C1

LEVER, control, LH

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

11

72130C1

BRACKET, cyl, LH

1шт.

12

75722C1

ELBOW, 90 degree long

4шт.

13

514461C1

HOSE

ASSY, cyl to cyl, Diesel, Start Serial: 134

2шт.

14

514461C1

HOSE

ASSY, Serial Range: pump-cyl

4шт.

76532C91

KIT, wide neutral band, Consists of

1шт.

76530C1

TEE

4шт.

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR

4шт.

514461C1

HOSE

ASSY

2шт.

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
