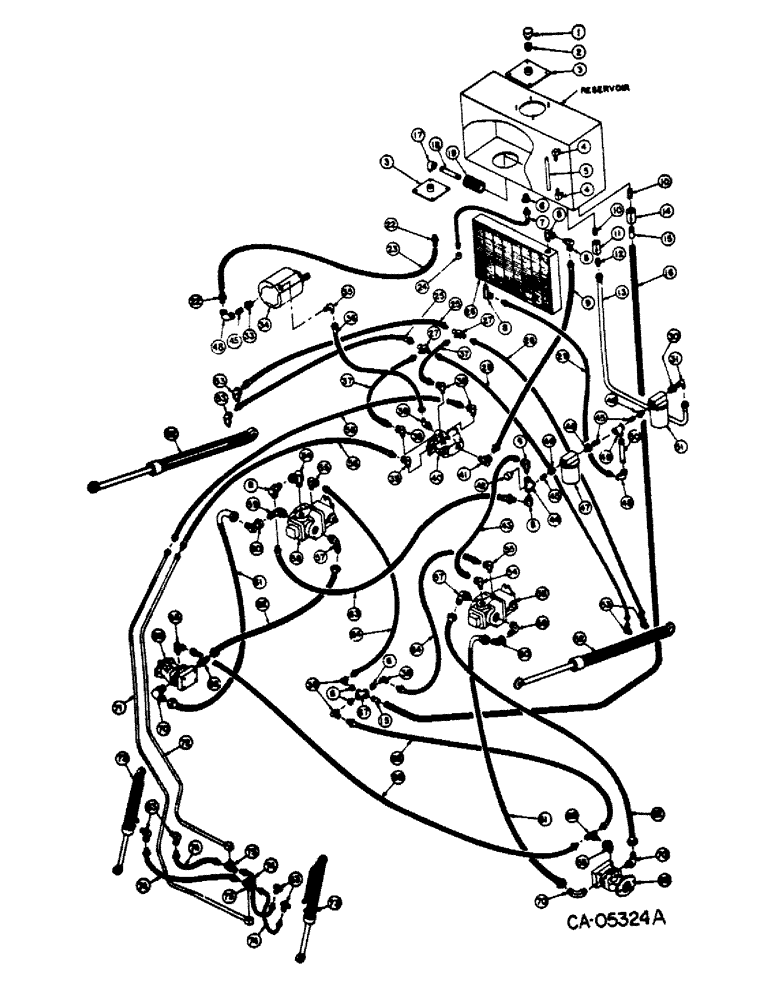

Запчасти Case 4150 (10-01) - HYDRAULICS, HYDRAULIC & HYDROSTATIC SYSTEM,LOADER, DIESEL, LOADER, GAS (07) - HYDRAULICS

1

72220C1

VALVE

PRESSURE, vacuum

1шт.

2

NLS

NO LONGER SERVICED

ADAPTER, 1-1/4-3/8 reducing pipe

1шт.

3

72012C1

COVER, reservoir

2шт.

72164C1

GASKET

cover

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd pln

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

4

72221C1

ELBOW

2шт.

5

72010C1

HOSE, indicator

1шт.

6

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

4шт.

7

363716R91

HOSE ASSY, reservoir drain

1шт.

120875

CLAMP, hose

1шт.

8

72222C1

ELBOW

6шт.

9

72088C1

HOSE ASSY., control, Serial Range: valve-cooler

1шт.

10

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pipe

2шт.

11

72162C1

VALVE, check, 20 PSI

1шт.

12

9402711

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-14, NPTF

CONNECTOR, 3/4 nptf 37 degree hyd flared

1шт.

13

72087C1

TUBE ASSY, Serial Range: filter-reservoir

1шт.

14

72163C1

VALVE, check

1шт.

15

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 close

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE, case drain to reservoir, Use 72 in. from 50 ft. roll marked 490960R1

1шт.

17

111001

ELBOW UNION,90 Degree, 1 1/4" NPT Street

ELBOW, 1-1/4-90 degree street

1шт.

18

72223C1

NIPPLE, 1-1/4 x 8 pipe

1шт.

19

72153C1

FILTER

sump

1шт.

22

72651C1

NIPPLE, pipe

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, reservoir to hyd pump, Use 23 in. from 50 ft. roll marked 483571R1

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose #24

2шт.

24

119101

CAP,1/2" NPT

1/2 pipe

1шт.

25

72089C1

HOSE ASSY, RH lift cylinder

2шт.

26

72090C1

COOLER, oil

1шт.

27

444122

TEE,3/8"-18 NPTF Fem

3/8 pipe

2шт.

28

72091C1

HYDRAULIC HOSE,0.38" ID x 94.00", SAE 100R2 Type A

HOSE ASSY, LH lift cylinder

2шт.

29

72092C1

HOSE ASSY, oil cooler return

1шт.

30

144064

ADAPTER, 1-1/4 - 3/4 reducing pipe

1шт.

31

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4-14 37 degree hyd flared tube 90 degree

1шт.

33

9409291

CONNECTOR, 1-5/16-12 hyd flareless tube to 1 in. npt int pipe thread Flareless, 1 5/16"-12 Tube x 1" NPT Fem

1шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.475 x .118

1шт.

34

72506C91

PUMP

ASSY, hydraulic, Refer to hydraulic pump assy for list of components

1шт.

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

3.237 x 3.442 x .103

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

35

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

37 degree flared tube adj str thd 90 degree

1шт.

36

878017C1

HOSE ASSY, Serial Range: pump-mcv

1шт.

37

72096C1

HOSE ASSY, mcv to lift cyl

2шт.

38

72298C1

ELBOW

4шт.

39

9402828

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 3/4"-14, NPTF

3/4-14 37 degree flared tube 45 degree

1шт.

40

72018C91

VALVE ASSY, control, Refer to control valve assy for list of components

1шт.

41

264272C91

ELBOW

1шт.

42

72128C1

SWITCH

pressure

1шт.

43

72099C1

HOSE ASSY, filter to LH hydro pump

1шт.

44

72100C1

TEE

1шт.

45

127874

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, 1 in. x close pipe

4шт.

46

144065

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

1-1/4 -1 reducing pipe

3шт.

47

72154C91

FILTER

ASSY, hyd oil, Consists of

1шт.

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

48

119100

ELBOW,90 Degree, 1" NPT

1 in. 90 degree pipe

2шт.

49

115237

TEE, 1 in. pipe 1" NPT, Fem

1шт.

50

219355

SWIVEL CONNECTION

NIPPLE, 1 x 9 pipe

1шт.

51

72154C91

FILTER

ASSY, hyd oil, Consists of

1шт.

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

52

72175C91

CYLINDER ASSY, lift, Refer to lift cylinder assy, For list of components

2шт.

53

293350R91

UNION

ELBOW

4шт.

54

72222C1

ELBOW

2шт.

55

72095C1

ELBOW

4шт.

56

72102C1

HOSE ASSY, mcv to boom tubes

2шт.

57

72133C1

ELBOW

2шт.

58

72056C91

PUMP ASSY, hydrastotic, Refer to hydrostatic pump assy, For list of components

2шт.

59

72131C1

ELBOW, LH

1шт.

59

72132C1

ELBOW, RH

1шт.

60

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-5/16-12 37 degree flared tube 90 degree swivel

1шт.

61

72108C1

HOSE ASSY, hydro pump to hydro motor

2шт.

62

72109C1

HOSE ASSY, hydro pump to hydro motor

2шт.

63

72110C1

HOSE ASSY, hydro, Serial Range: pump-filter

1шт.

64

104408H1

HOSE ASSY, pump case drain

2шт.

65

72262C92

MOTOR ASSY, hydrostatic, Refer to hydrostatic motor assy, For list of components

2шт.

66

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 degree hyd flared tube short swivel

1шт.

67

144154

BRACKET

TEE, 3/4 pipe, 4 way

1шт.

68

407078R91

HOSE ASSY.

HOSE ASSY, motor case drain

2шт.

69

72225C1

TEE

1шт.

70

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 37 degree hyd flared tube adj str thd, 90 degree

3шт.

71

72113C1

TUBE ASSY, tilt up 0.5" OD, 82, 16" Length

1шт.

72

72114C1

TUBE ASSY, tilt down 0.5" OD, 78.75" Length

1шт.

73

72168C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder assy, For list of components

2шт.

74

72116C1

HOSE ASSY, tilt cylinder

4шт.

75

72226C1

TEE

2шт.

72117C1

SUPPORT, hose, clamp

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.
