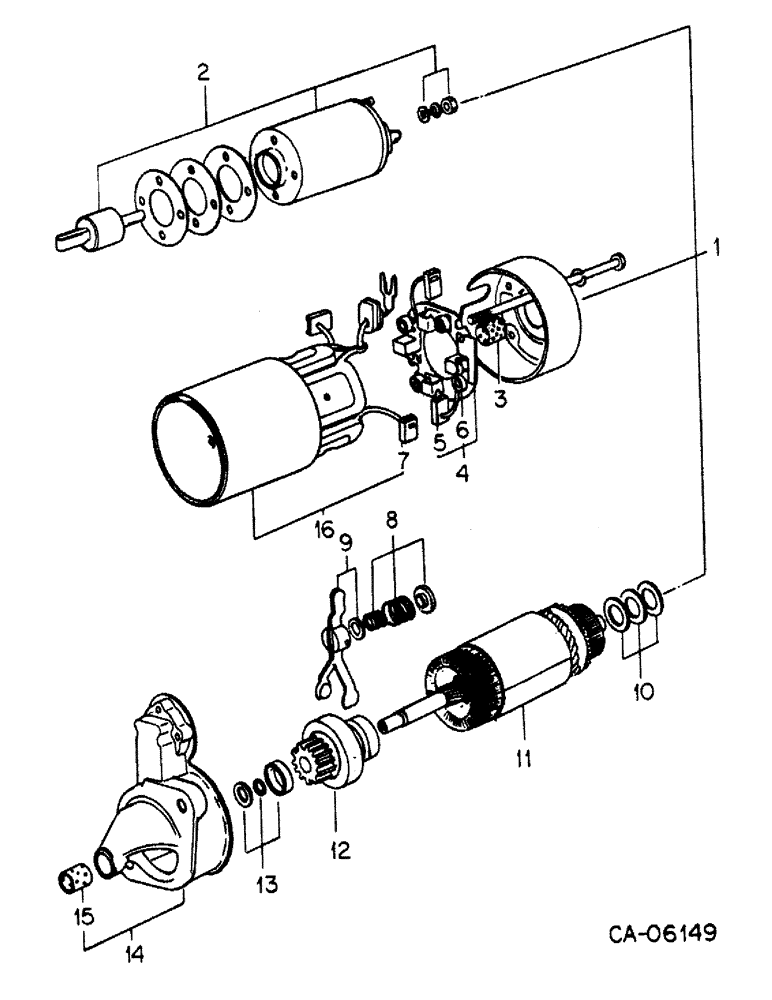

Запчасти Case 4150 (08-08) - ELECTRICAL, STARTER MOTOR, MAZDA ENGINE (06) - ELECTRICAL

1

76295C91

MOTOR ASSY, starter

1шт.

2

76296C1

SWITCH ASSY, solenoid

1шт.

3

76297C1

BUSHING, cover

1шт.

4

76289C91

HOLDER ASSY, brush, Includes ref. nos. 5 and 6

1шт.

5

76299C1

BRUSH

2шт.

6

76300C1

SPRING, brush

4шт.

7

76301C1

BRUSH

2шт.

8

76302C1

KIT, spring

1шт.

9

76303C1

LEVER

1шт.

10

76304C1

KIT, washer

1шт.

11

76305C1

ARMATURE

1шт.

12

76306C1

GEAR, clutch pinion

1шт.

13

76307C1

KIT, pinion stopper

1шт.

14

76308C91

HOUSING ASSY, gear, Includes ref. no. 15

1шт.

15

76309C1

BUSHING, gear housing

1шт.

16

76310C91

COIL ASSY, field, Includes ref. no. 7

1шт.
