Запчасти Case 4150 (08-03) - ELECTRICAL, ELECTRICAL, LOADER, GAS (06) - ELECTRICAL

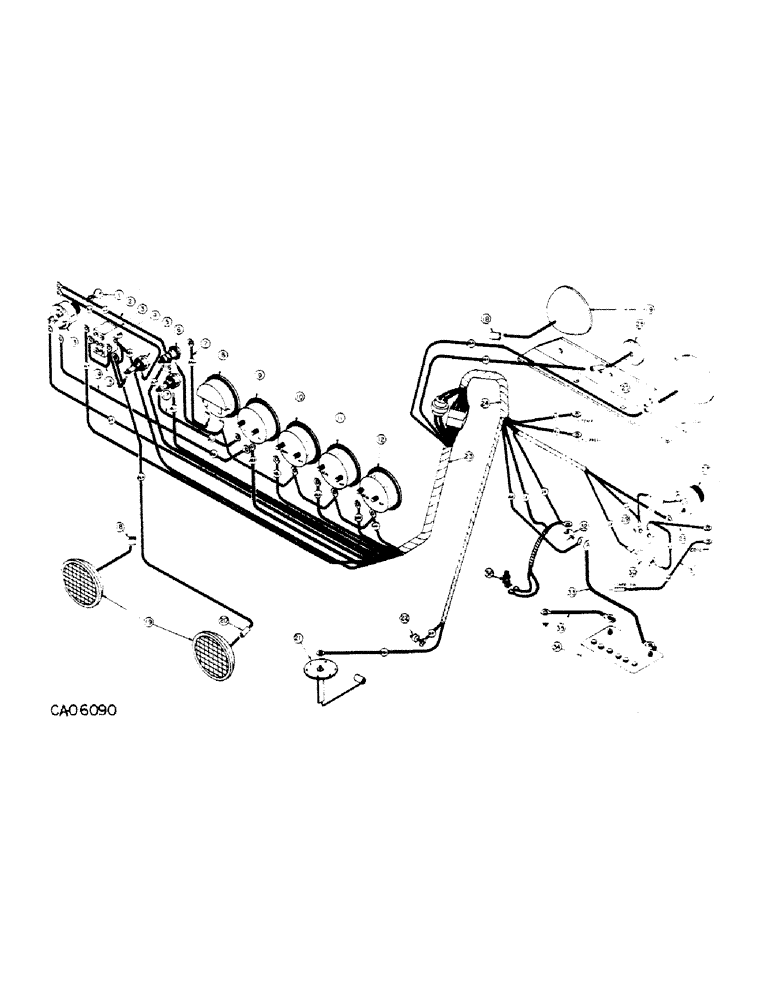

Схема запчастей Case 4150 - (08-03) - ELECTRICAL, ELECTRICAL, LOADER, GAS (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

72243C1

KEY

ignition

1шт.

2

72143C1

CABLE, jumper, ind, Serial Range: lt.-ign.

1шт.

3

72278C1

CABLE, jumper, 20 amp fuse to ignition switch

1шт.

4

647646C91

SWITCH, light

1шт.

5

72277C1

HOLDER, 20 amp fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp, SFE 20

1шт.

6

72242C1

LIGHT, indicator

1шт.

58554C1

BULB,C2F, #1892, 14V

replacement, #1892 Furnish as part of 72242C1

1шт.

7

72145C1

CABLE, jumper, hour meter to ground, Serial Range: -145

1шт.

7

77693C1

CABLE

gauge ground, Start Serial: 146

1шт.

8

72241C1

METER

hour

1шт.

9

77591C1

AMMETER

, Start Serial: 146

1шт.

9

77592C91

KIT

ammeter, Replaces 72240C1, Serial Range: -145

1шт.

10

77589C1

GAUGE

oil pressure

1шт.

11

77587C1

GAUGE, temperature, Start Serial: 146

1шт.

11

77586C91

KIT

temperature gauge, Replaces 72238C1, Serial Range: -145

1шт.

12

77593C1

GAUGE

fuel, Start Serial: 146

1шт.

12

77597C91

KIT

fuel gauge, Replaces 72237C1, Serial Range: -145

1шт.

13

72244C1

IGNITION SWITCH

SWITCH, ignition

1шт.

14

72144C1

CABLE, jumper, Serial Range: amm.-switch

1шт.

15

72281C1

CABLE, jumper, fuse to light switch

1шт.

16

72277C1

HOLDER, 30 amp fuse

1шт.

147686

FUSE,30 Amp, Type SFE

30 amp, SFE 30

1шт.

17

72146C1

CABLE, jumper, Serial Range: amm.-fuse

1шт.

18

72615C1

CONNECTOR

2шт.

19

72275C91

LIGHT ASSY, head

4шт.

373662R91

LAMP

Replace #4411

4шт.

131508C1

LAMP BASE

LAMP, Replacement H-7610, Furnished as part of 72275C91

4шт.

20

72611C1

CONNECTOR

3шт.

21

77596C1

SENDER UNIT

SENDER, fuel level, Start Serial: 146

1шт.

21

77597C91

KIT

fuel sender, Replaces 72228C1, Serial Range: -145

1шт.

72135C1

GASKET

fuel sender

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

5шт.

77695C1

WASHER

5шт.

22

72128C1

SWITCH

sender

1шт.

23

72141C1

HARNESS

canopy wiring

1шт.

24

76501C1

HARNESS, engine wiring

1шт.

25

72276C91

LIGHT ASSY, tail

1шт.

20627R1

BULB,C2F, #194, 14V

tail light #194, Furnished as part of 72276C91

1шт.

26

72208C1

ANGLE, light kit, bracket

1шт.

27

72268C91

ALTENATOR, starndard

1шт.

72233C1

PULLEY, altenator

1шт.

72229C1

REGULATOR, voltage

1шт.

28

76502C1

CABLE, jumper, diode-resistor-coil

1шт.

29

76503C1

RESISTOR

1шт.

30

76504C1

RECTIFIER

1шт.

31

76505C1

CABLE, jumper, carb, Serial Range: solenoid-coil

1шт.

32

NSS

NOT SOLD SEPARAT

SWITCH, solenoid, Refer to Mazda engine service parts

1шт.

33

76506C1

CABLE, battery, positive

1шт.

34

IHMF24PF

DRY BATTERY

1шт.

74701C1

STRAP, battery hold down

1шт.

35

72136C1

CABLE

battery, negative

1шт.

36

121629C1

IGNITION SWITCH

SWITCH, neutral starting

1шт.

74702C91

LIGHTING ATT, Consists of ref. 18, 19, 20, 25 and 26

1шт.

Выбрано товаров: 54
