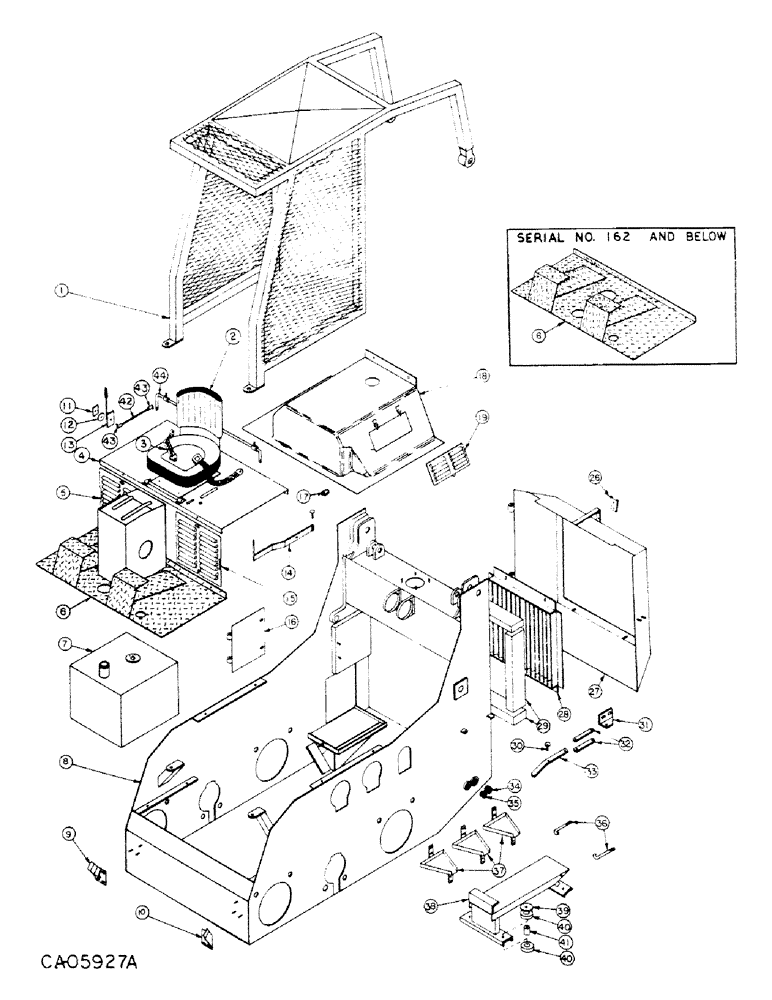

Запчасти Case 4150 (13-03) - SUPERSTRUCTURE, SUPERSTRUCTURE, LOADER, DIESEL LOADER (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
72148C1
TOP, ROPS, canopy
1шт.
328400C1
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
SCREW, 1/4-14 x 3/4 CAD c/r s/d tap
2шт.
271771
HOUSING,Hex, 3/4" - 10 x 2", Gr 5
3/4 x 2 type 5
2шт.
271777
KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5
3/4 x 3-1/2 type 5
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
2
77991C91
SEAT ASSY.
SEAT ASSY, Replaces 72009C1
1шт.
77333C1
CUSHION
seat, back, Gas loader serial no.151 and below, Diesel loader serial no.157 and below
1шт.
77992C1
CUSHION
seat, back, Gas loader serial no.152 and above, Diesel loader serial no.158 and above
1шт.
77334C1
CUSHION, seat, bottom, Gas loader serial no.151 and below, Diesel loader serial no.157 and below
1шт.
77993C1
CUSHION
seat, bottom, Gas loader serial no.152 and above, Diesel loader serial no.158 and above
1шт.
77798C1
FRAME, seat, Gas loader serial no.151 and below, Diesel loader serial no.157 and below
1шт.
77994C1
FRAME, seat, Gas loader serial no.152 and above, Diesel loader serial no.158 and above
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
2шт.
3
72179C1
BELT
SAFETY BELT
1шт.
180147
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
BOLT, 7/16 x 1-1/4 type 5
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
271501
SOCKET
NUT, 7/16 type 5
2шт.
4
72000C1
PLATE, seat, gas
1шт.
4
72001C2
PLATE, seat, diesel
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
4шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
78054C1
STRIP, wear pad, Diesel, Start Serial: 158
1шт.
159336
SCREW,Cross Pan Hd, #6 - 32 x 1/2"
No. 6 x 1/2 znp p/hdcr mach
2шт.
178349
LOCK WASHER,Ext-Int Tooth, #6
WASHER, No. 6 ext-int tooth lock
2шт.
134530
NUT,Hex, #6 - 32
Machine screw #6-32
2шт.
5
73843C1
PLATE, kick, RH
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x. 051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
6
72002C1
PLATE, floor
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
4шт.
7
72152C1
TANK, fuel
1шт.
72187C1
CAP
fuel tank
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
4шт.
444709
PLUG,Hex Soc, 3/4"-14
3/4-14 auto hex-soc-hd drain
1шт.
8
73844C1
FRAME, main
1шт.
9
73845C1
GUIDE, boom, RH
1шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
.531 x 1.062 x .074 pln
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
10
73846C1
GUIDE, boom, LH
1шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
.531 x 1.062 x .074 pln
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
11
72007C1
PAD, restrictor
1шт.
12
78242C1
BELLEVILLE WASHER
Belleville, Replaces 73847C1
2шт.
13
72006C1
LEVER, throttle
1шт.
72125C1
GRIP, throttle lever
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
1/2 x 2-1/4 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 phc hdn
1шт.
14
72004C1
ARM, safety lock, Serial no.136 and below, gas, Serial no.124 and below, diesel
1шт.
14
76986C1
ARM, safety lock, Serial no.137 and above, gas, Serial no.125 and above, diesel
1шт.
598812R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5
BOLT, 3/8 x 2 crg type 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
180083
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
5/16 x 1-1/2 type 5
1шт.
120376
NUT,5/16"-18, G5
2шт.
15
72005C1
PLATE, kick, LH
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
16
73848C1
DOOR, battery access
1шт.
189304
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
3/8 x 3-1/4 type 5
2шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
2шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
17
75199C1
BAR, shroud, tab
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
18
77801C1
SHROUD, engine, gas
1шт.
18
77802C1
ORIFICE RING
SHROUD, engine, diesel
1шт.
72150C1
CLIP, hood
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
19
72008C1
VENTILATOR, engine shroud
2шт.
26
398976R1
BRACKET
SOCKET, smv
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
27
73849C1
HOUSING, rear grill
1шт.
433163
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1/2 x 5 type 5
2шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2 cad p/t lock type 5
2шт.
28
73850C1
GRILLE
1шт.
495-11053
WASHER,1/2", SAE
.531 x 1.062 x 074
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
29
73851C1
STRIP, insulation, side
3шт.
29
75472C1
STRIP, insulation, top and bottom
2шт.
30
73934C1
PIN, hitch
1шт.
31
73852C1
SUPPORT, latch, pivot
1шт.
495-11053
WASHER,1/2", SAE
.531 x 1.062 x .074
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
32
73853C1
BAR, latch pivot
2шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2 type 5
2шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2 cad p/t lock type 5
2шт.
33
73854C1
SUPPORT, grille latch, handle
1шт.
34
444705
PLUG,Hex Soc, 1/2"-14, Brass
1/2-14 socket hd auto pipe
1шт.
35
444699
PLUG,Hex Soc, 3/8"-18
3/8-18 socket hd auto pipe
1шт.
36
73855C1
BOLT,5/8" - 11 x 5 1/2"
J
2шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 type 5
4шт.
37
73856C1
SUPPORT, filter mount
3шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
38
73857C1
SUPPORT, lower motor, mount
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
4шт.
39
72157C1
WASHER, retainer
4шт.
40
72158C1
MOUNT, rubber
8шт.
41
72159C1
BUSHING
1шт.
42
75008C1
STUD
throttle
1шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-NF type 5
2шт.
43
72266C1
END
rod
2шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-NF type 5
2шт.
44
75009C1
ROD, throttle crossover
1шт.
120388
.438 x 1.000 x .064
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
Выбрано товаров: 127
