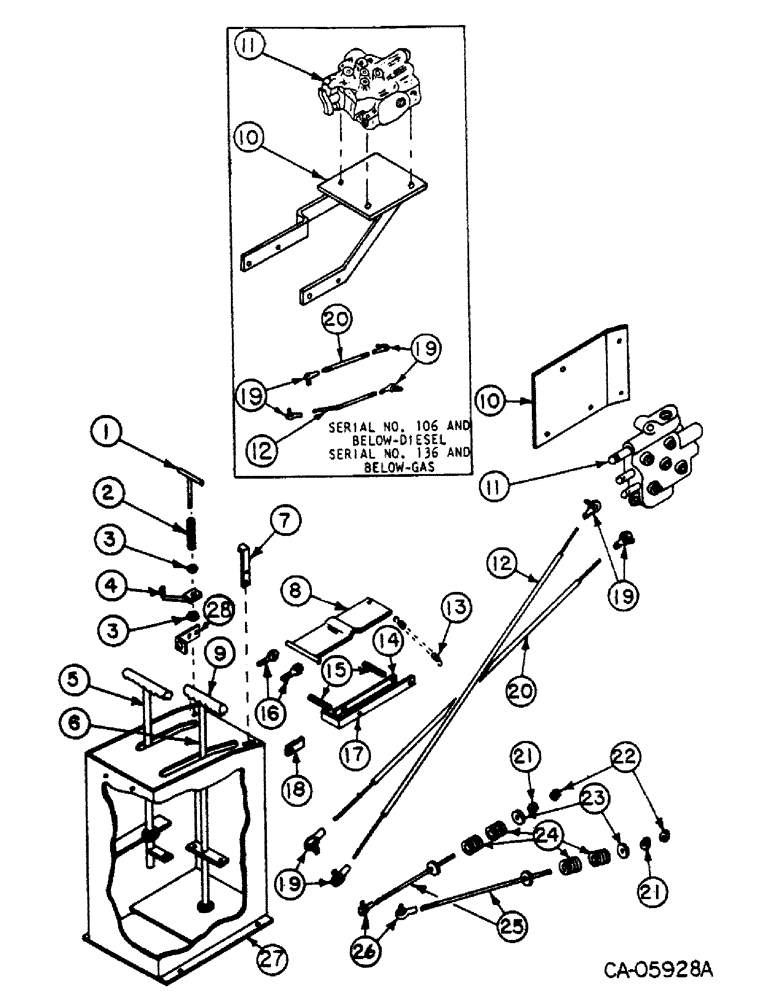

Запчасти Case 4150 (07-01) - DRIVE TRAIN, HYD. & HYDROSTATIC CONTROLS, LOADER, GAS, LOADER, DIESEL (04) - Drive Train

1

72029C1

HANDLE, lockout tee

1шт.

2

72188C1

SPRING

1шт.

3

120377

NUT,3/8" - 16, Gr 5

2шт.

4

72030C1

BRACKET, lock

1шт.

5

72016C1

LEVER, hydraulic control, Furnished as part of 72151C91

1шт.

72017C1

CONDUIT, hydraulic lever, handle, Furnished as part of 725151C91

1шт.

6

72017C1

ROD, drive control, lever, Furnished as part of 72151C91

1шт.

72017C1

CONDUIT, drive lever, handle, Furnished as part of 72151C91

1шт.

7

72031C1

SUPPORT, choke, lever, gas only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

8

72021C1

PLATE, control lock

1шт.

9

72210C1

GRIP

handle

4шт.

10

73858C1

SUPPORT, control valve, mount, diesel, Start Serial: 107

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

72019C1

SUPPORT, control valve, mount, diesel, Serial Range: -106

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

NSS

NOT SOLD SEPARAT

VALVE ASSY, control, Refer to hyd. and hydrostatic system

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

3шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

73859C1

ROD, lift, diesel, Start Serial: 107

1шт.

12

72026C1

ROD, lift, diesel, Serial Range: -106

1шт.

120368

NUT,5/16"-24, G5

2шт.

13

72211C1

SPRING

tension

1шт.

14

72023C1

BAR, friction, loose

1шт.

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4 x 2-1/2 type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

15

72188C1

SPRING, tension, short

2шт.

16

72020C1

BOLT, eye

2шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

17

72024C1

BAR, friction, mounted

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18

72032C1

TAB, chock cable retainer, gas only

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

72212C1

END ASSY.

END, rod

4шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, 5/16 NF phc p/t lock type 5

4шт.

20

73860C1

ROD, tilt, diesel, Start Serial: 107

1шт.

20

72025C1

ROD, tilt, diesel, Serial Range: -106

1шт.

120368

NUT,5/16"-24, G5

2шт.

21

120369

NUT,3/8"-24, G5

2шт.

22

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

23

72166C1

THRUST WASHER

thrust

2шт.

24

138541C1

SET

PACKAGE, spring, contains 4 springs

1шт.

25

73861C1

ROD, drive

2шт.

120369

NUT,3/8"-24, G5

2шт.

26

72213C1

END

3/8 rod

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

27

72151C91

HOUSING ASSY, control console

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

28

72672C1

SUPPORT, neutral start switch

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
