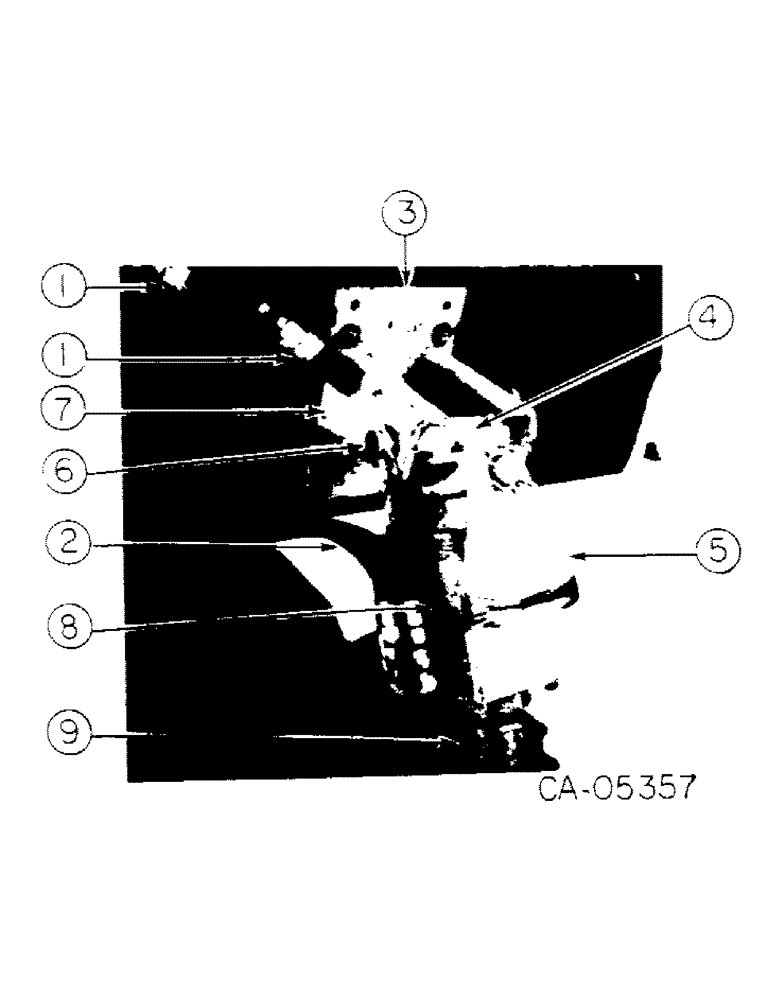

Запчасти Case 4150 (17-05) - MOUNTED EQUIPMENT, POST HOLE AUGER ATTACHMENT Mounted Equipment

1

72305C1

COUPLER, male

2шт.

2

72105C1

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R1

HOSE ASSY

2шт.

3

72111C1

BRACKET, mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

72165C1

PIVOT

1шт.

5

72231C1

BRACKET, motor mount

1шт.

6

72232C1

PIN, pivot

1шт.

7

520177R1

PIN

quick attachable

4шт.

8

72319C1

MOTOR ASSY

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

72320C1

ADAPTER

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 13 x 4 znd hex-hd cap

1шт.

18466R1

BOLT, 1/2-13 x 1-1/2 znd sq hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

72326C1

BLADE, 9 in. replacement cutting, auger bit attachment

1шт.

72327C1

BLADE, 12 in. replacement cutting, auger bit attachment

1шт.

72328C1

BLADE, 18 in. replacement cutting, auger bit attachment

1шт.

72330C1

POINT, replacement, auger bit attachment

1шт.
