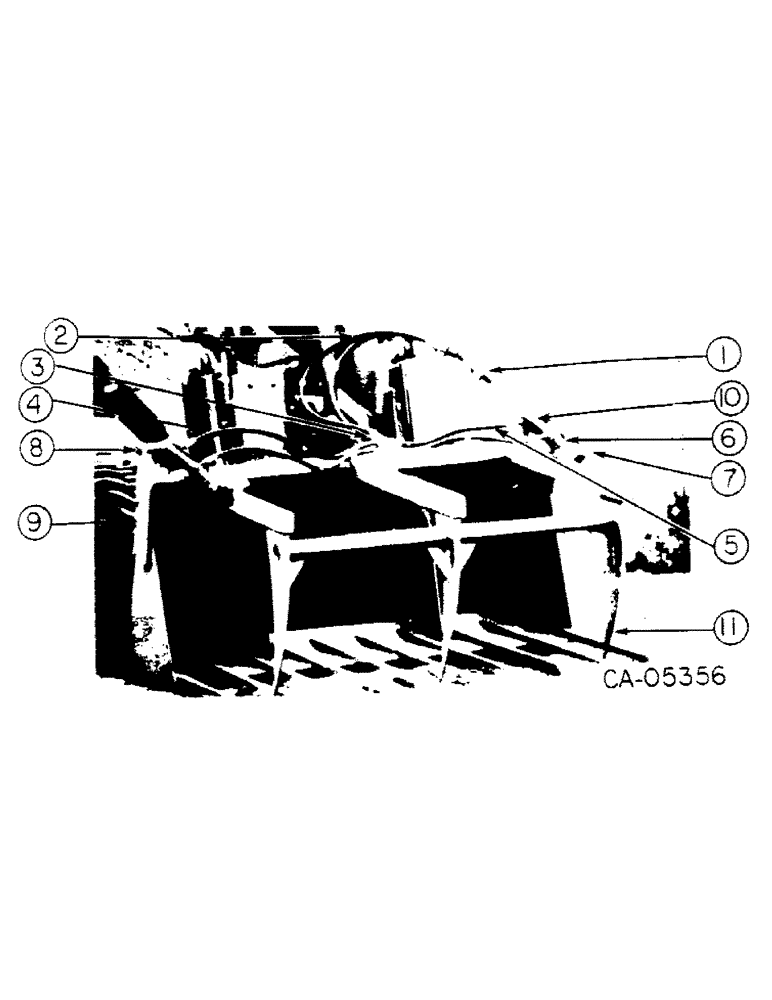

Запчасти Case 4150 (17-04) - MOUNTED EQUIPMENT, GRAPPLE FORK Mounted Equipment

1

72305C1

COUPLING, male

2шт.

2

72186C1

HOSE ASSY, quick, Serial Range: coupler-tee

2шт.

3

72306C1

TEE

2шт.

4

405359R1

HOSE, tee to R.H. cylinder

2шт.

5

470794R91

HOSE ASSY, tee to L.H. cylinder

2шт.

72375C1

CLAMP, hose

1шт.

381654R1

SCREW, 1/4-20 x 3/4 znd hex-hd tap

1шт.

6

72183C91

CYLINDER ASSY, hydraulic, Consists of

1шт.

72394C91

PACKAGE

o-ring and seal service

2шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

2шт.

72307C1

SEAL

piston

2шт.

481767R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1.549 x 1.755 x .103

2шт.

343920R1

RING

O-RING, 1.609 x 1.887 x .139

2шт.

72191C1

PISTON

cylinder

2шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 nylon insert lock

2шт.

72192C1

BODY, cylinder, tube

2шт.

72193C1

ROD, cylinder

2шт.

562025R1

CIRCLIP

RING, retaining

2шт.

72310C1

WIPER SEAL

WIPER, rod

2шт.

72311C1

SEAL

rod

2шт.

72927C91

KIT

packing head

2шт.

25020R1

O-RING,Rect, 1.75" ID x 2" OD, Cl 5

WASHER, 1.734 x 2.002 x .134 backup

2шт.

16982R91

FITTING

1/4-28 special taper drive thd self tapping lub

2шт.

7

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

SCREW, 3/4-10 x 5-1/2 phc hex-hd cap, type 8

2шт.

8

25698R1

BOLT,Hex, 3/4" - 10 x 6", Gr 8

SCREW, 3/4-10 x 6 phc hex-hd cap, type 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4-10 phc hex, type 8

4шт.

9

72189C1

PIVOT, RH

1шт.

10

72190C1

PIVOT, LH

1шт.

17984R1

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

11

72185C1

FORK, gapple

1шт.
