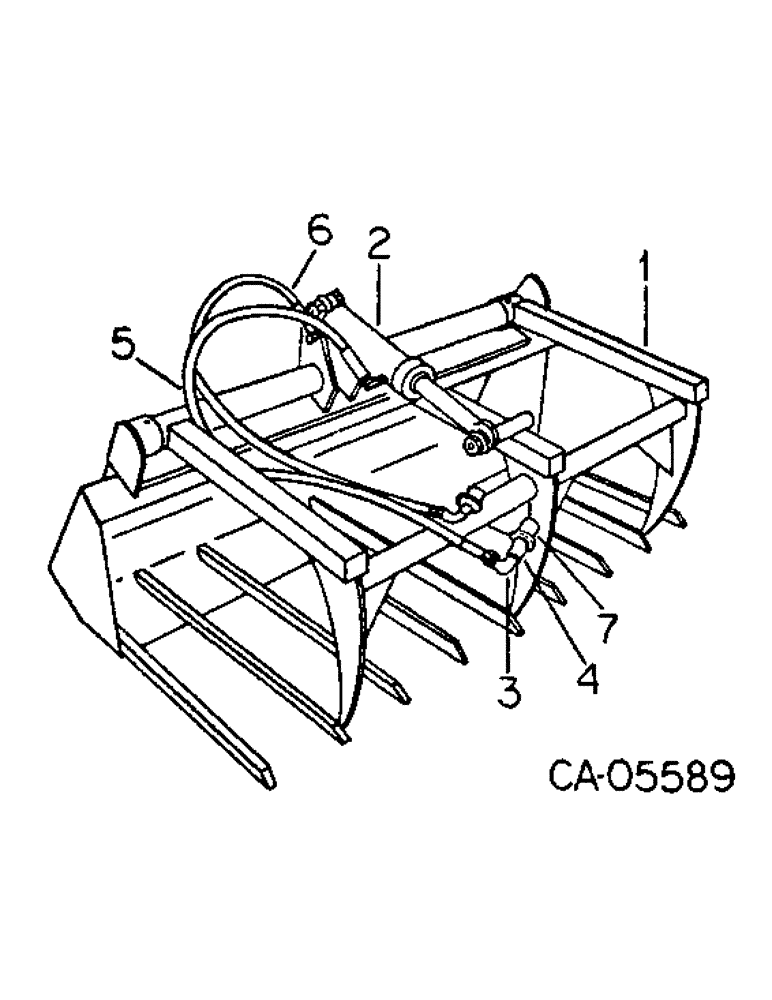

Запчасти Case 4140 (17-04) - GRAPPLE FORK (05) - SUPERSTRUCTURE

1

73403C1

FORK, grapple

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

2

72183C91

CYLINDER ASSY, hydraulic, Consists of

1шт.

72394C91

PACKAGE

o-ring & seal service

1шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

1шт.

72307C1

SEAL

piston

1шт.

481767R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1.549 x 1.755 x .103

1шт.

343920R1

RING

O-RING, 1.609 x 1.887 x .139

1шт.

72191C1

PISTON

cylinder

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5

1шт.

72192C1

BODY, cylinder, tube

1шт.

72193C1

ROD, cylinder

1шт.

562025R1

CIRCLIP

RING, retaining

1шт.

72310C1

WIPER SEAL

WIPER, rod

1шт.

72311C1

SEAL

rod

1шт.

72927C91

KIT

PACKING HEAD

1шт.

25020R1

O-RING,Rect, 1.75" ID x 2" OD, Cl 5

SEAL, 1.734 x 2.002 x .134 backup

1шт.

16982R91

FITTING

1/4-28 special taper drive thd self tapping lub

1шт.

25698R1

BOLT,Hex, 3/4" - 10 x 6", Gr 8

3/4 x 6 phc type 8

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

2шт.

3

293350R91

UNION

ELBOW

4шт.

4

144219

BUSHING,3/4" NPT Male x 1/2" NPT Fem

ADAPTER, 3/4 - 1/2 reducing pipe

2шт.

5

72186C1

HOSE ASSY, quick, Serial Range: coupler-cyl

1шт.

6

405359R1

HOSE ASSY, quick, Serial Range: coupler-cyl

1шт.

7

72305C1

COUPLING, male

2шт.
