Запчасти Case 4140 (12-29) - OIL AND FUEL FILTERS, ISUZU ENGINE (04) - Drive Train

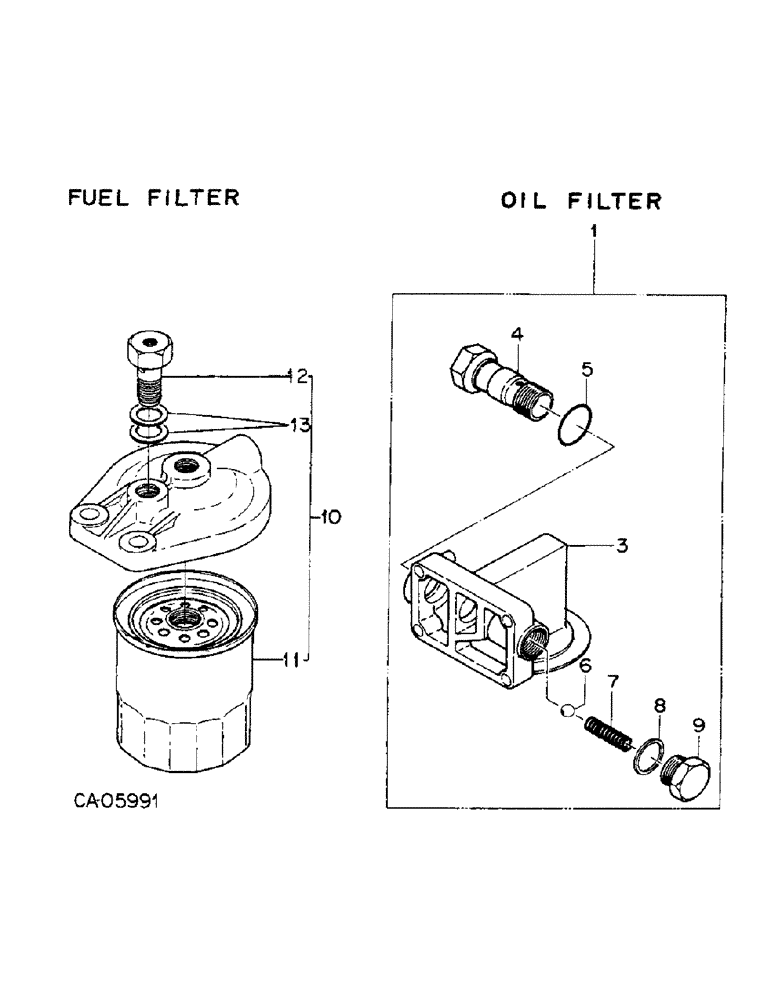

Схема запчастей Case 4140 - (12-29) - OIL AND FUEL FILTERS, ISUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

74903C91

OIL FILTER, complete

1шт.

3

74883C91

HEAD W/RELIEF VALVE, oil filter

1шт.

4

74950C91

VALVE ASSY, relief, Furnished as part of 74883C91

1шт.

74951C1

BODY, relief valve

1шт.

74952C1

SPRING, relief valve

1шт.

74953C1

VALVE, relief

1шт.

74954C1

SEAT, valve

1шт.

5

74656C1

SEAL, relief valve o-ring

1шт.

6

74955C1

BALL, safety valve

1шт.

7

74956C1

SPRING, safety valve

1шт.

8

74957C1

SEAL, o-ring

1шт.

9

74653C1

CAP, valve spring

1шт.

10

74661C91

FILTER ASSY, fuel

1шт.

11

74662C1

FILTER

ELEMENT, fuel filter

1шт.

12

74663C1

VALVE, over flow

1шт.

13

74553C1

GASKET

valve

2шт.

Выбрано товаров: 16
